Home Switch Slide switch spdt 2 position slide switch

spdt 2 position slide switch

A slide switch is a mechanical switch that slides from the open (off) position to the closed (on) position and allows control of a circuit's current flow without having to manually splice or cut wire.

  • Brand:

    Gangyuan
  • Item NO.:

    SS12D10-G4-DD1
  • Order(MOQ):

    500
  • Payment:

    100% before production
  • Product Origin:

    Wenzhou
  • Color:

    Black
  • Shipping Port:

    Ningbo or Shenzhen
  • Lead Time:

    7-15 working days
  • Product Detail

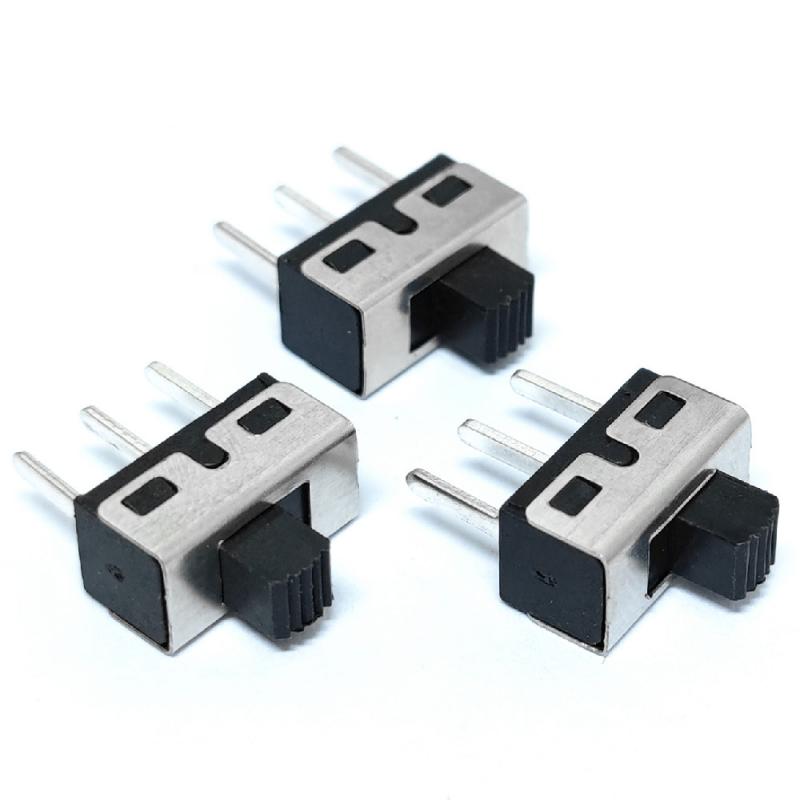

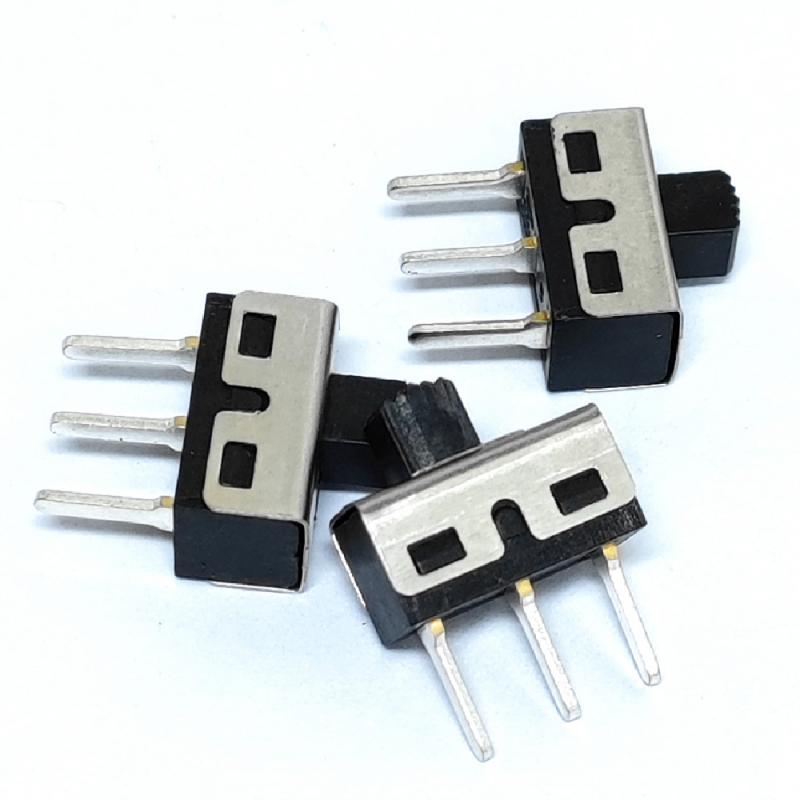

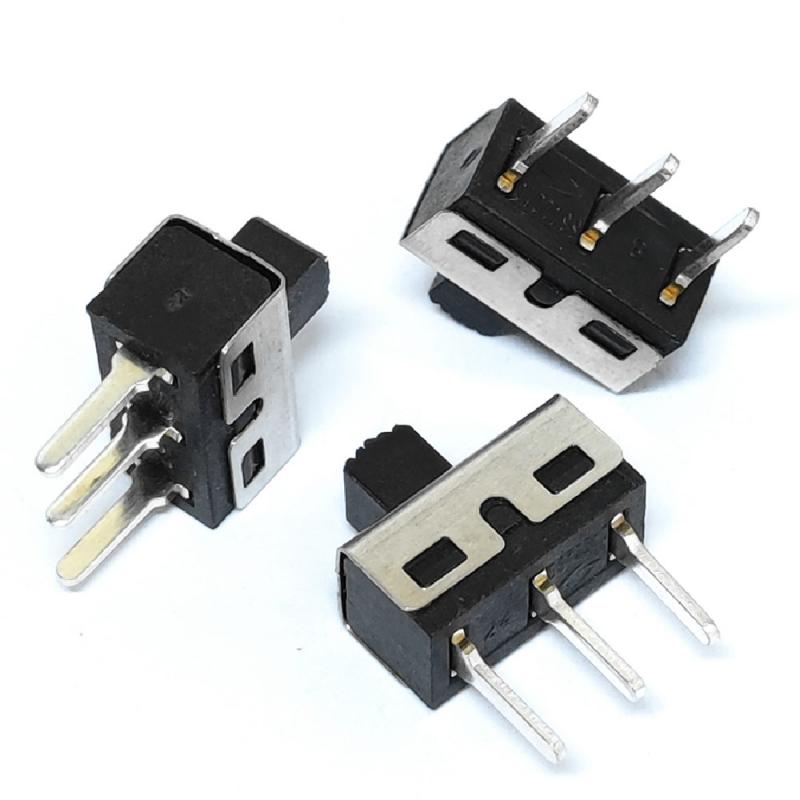

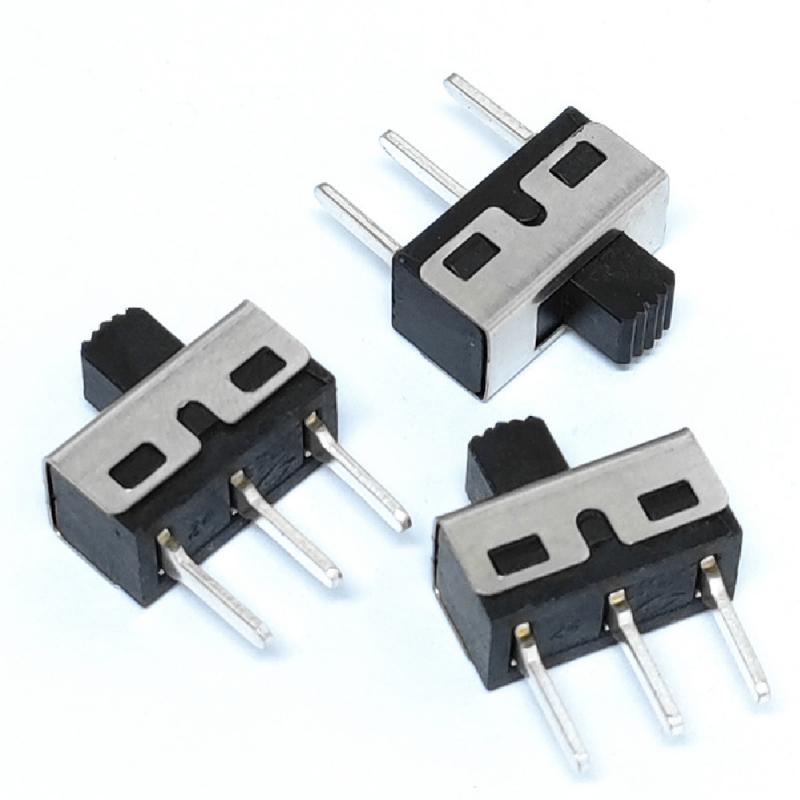

SPDT slide switch 2 position horizontal slide switches

Featuring ultra-miniature, micro, miniature, standard


 Slide switch speicifcations

Ratings: DC 30V 0.5A

Function: 1P2T
Operating Force: 250±100gf

Full Travel: 2.2±0.2mm

Operation life: 10,000 cycles

Operating Temperature Range: -20℃~70℃

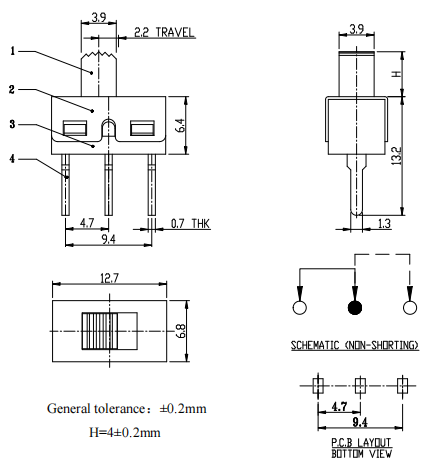

 Drawing

 What are the 4 types of switches ?

There are four main types of switches— single pole single throw, single pole double throw,

double pole single throw, or double pole double throw.


 Typical applications

  • Computer peripherals & network products
  • Telecommunication products
  • Test & measurement equipment

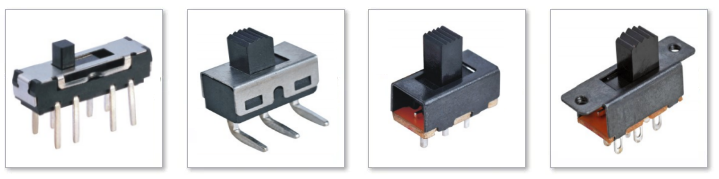

 8 pin vertical slide switches      right angle slide switch            1P2T Slide switch                 Mount Slide switch
