50A of switching capability relay

The operating temperature of this relay reaches 125°C. Compliance to Rohs ELV Directive.

  • Brand:

    HKE
  • Item No.:

    CMP36
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    100PCS
  • Lead Time:

    7-14 working days for payment
Product Details

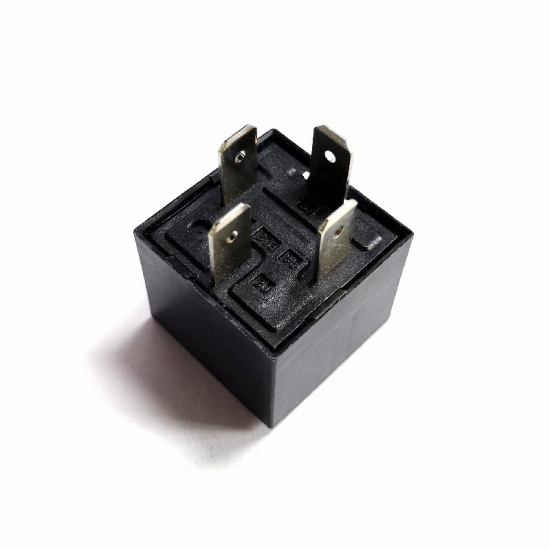

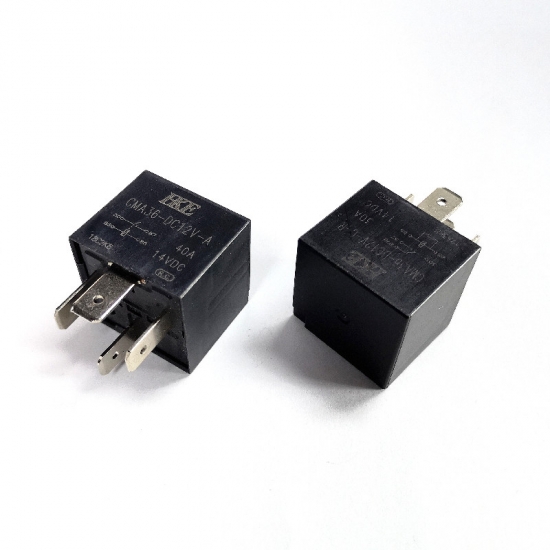

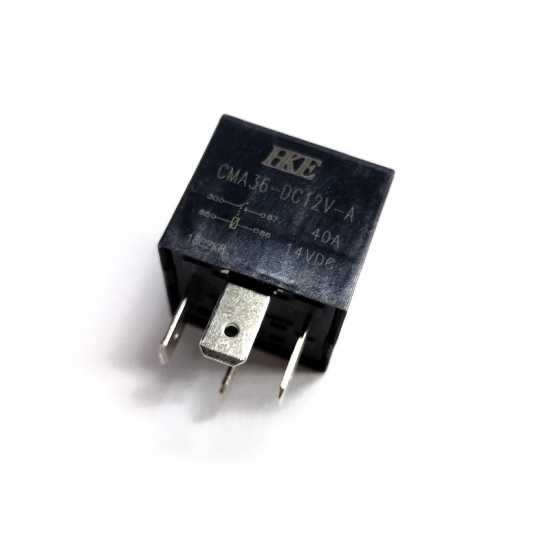

switching capability 50a 24 volt automobile relay



  Basic Information


Product name
Miniature automotive relay
Dimensions
26×26×22.7(mm)
Coil Voltage
DC12V, DC24V
Max. Switching Voltage
28VDC
Max. Switching Current
Make:150A(NO,surge))
Break:50A(steady-state)
Nominal Coil Power
1.6W, 1.8W
Mechanical Life
1,000,000 Cycles(300 cycles/minutes)
Operating Temperature
-40℃ to +125℃
Contact Form
A - 1 Form A
C - 1 Form C

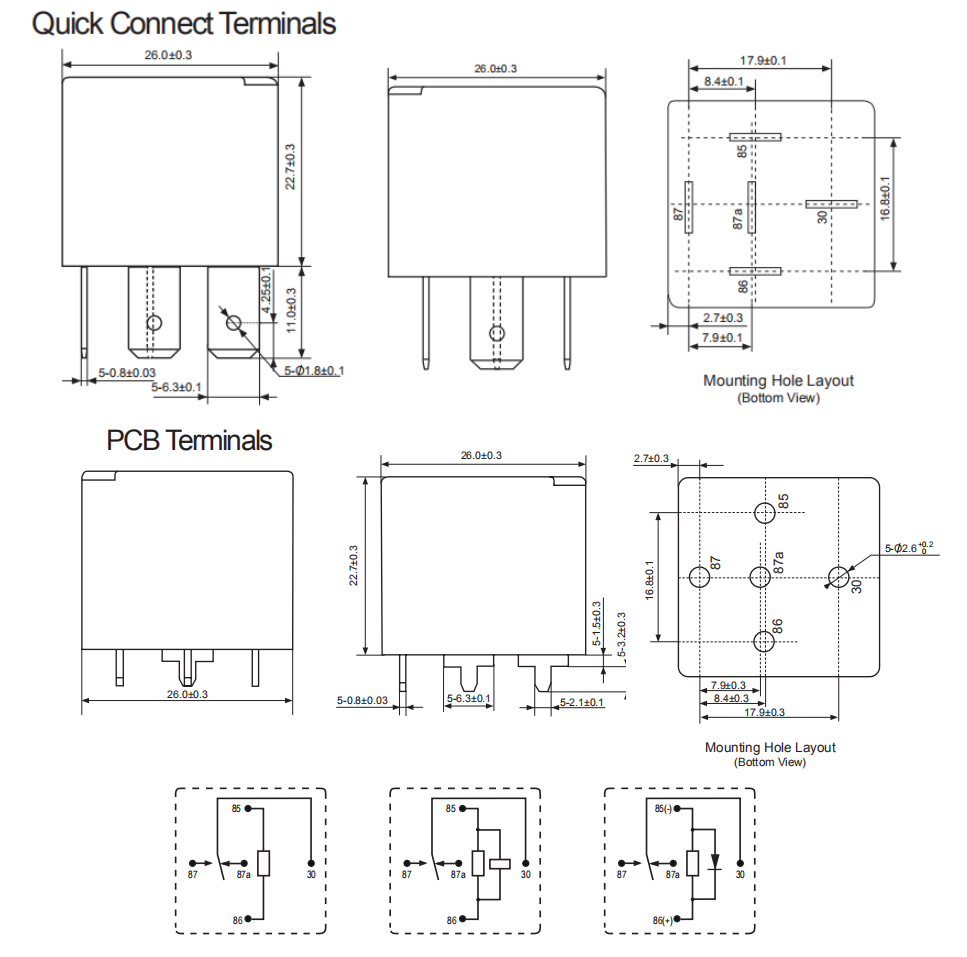

  Dimension


  Product features


1. Type: Auto relay

2. Wide operating voltage range:Up to ±40% of rated voltage

3. High environmental adaptability:The highest ambient temperature can reach 125℃

4. Maximum switching current:50A (24VDC)

5. Terminal treatment:Anti-corrosion treatment for terminals

6. Popular application scenarios: Automobile automatic doors and windows, anti-theft devices, wipers, oil pump motors, etc.


  Our advantage


1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

    More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.


 Relay Application


1. Industrial automation control: manipulator, power control, protection circuit.

2. Household appliances: microwave oven, TV, air conditioner, dishwasher, etc.

3. UPS power supply: protection circuit, switching circuit.

 FAQ


1. Q: Are you manufacture/ factory? Location?

    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: How do you proceed order for relay?

   A: First let us know your requirements or application.

       Secondly we quote according to your requirements or our suggestions.

       Thirdly customer confirms the samples and places deposit for formal order.

       Fourthly we arrange the production.
