Home Switch Micro switch G20 Series Short hinge roller lever micro switch

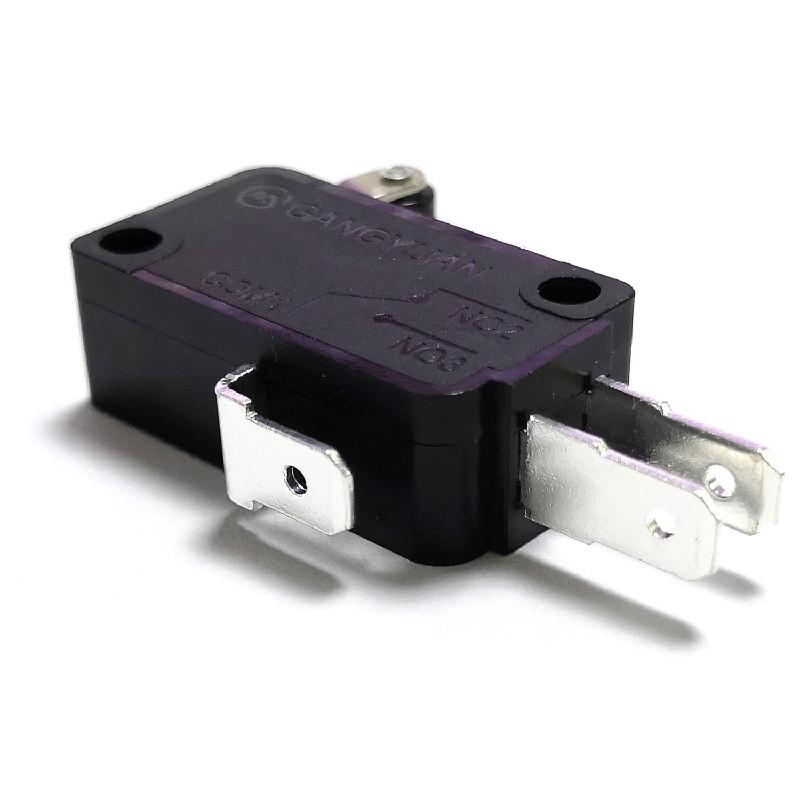

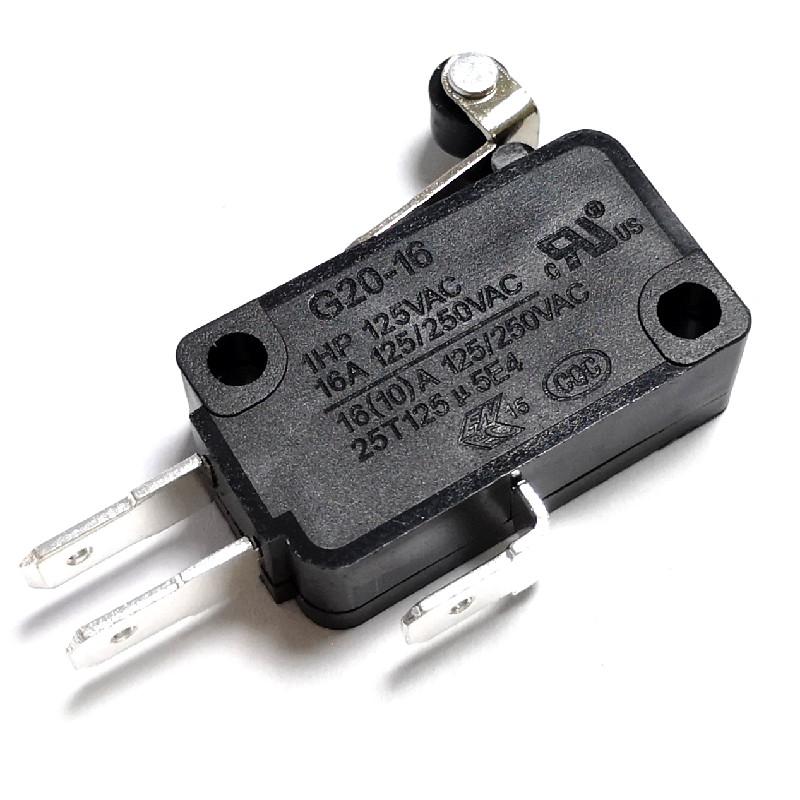

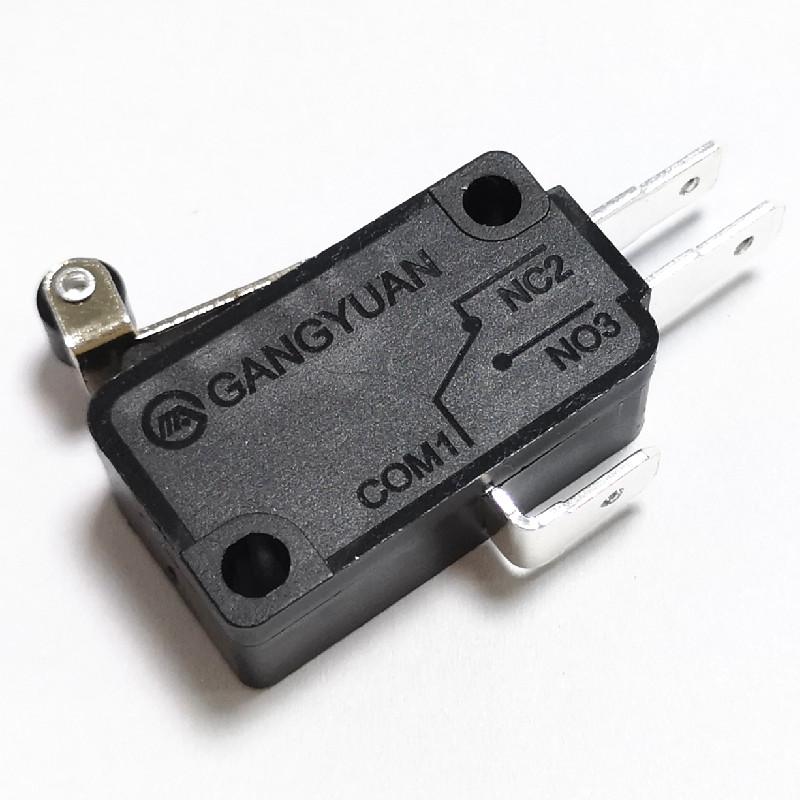

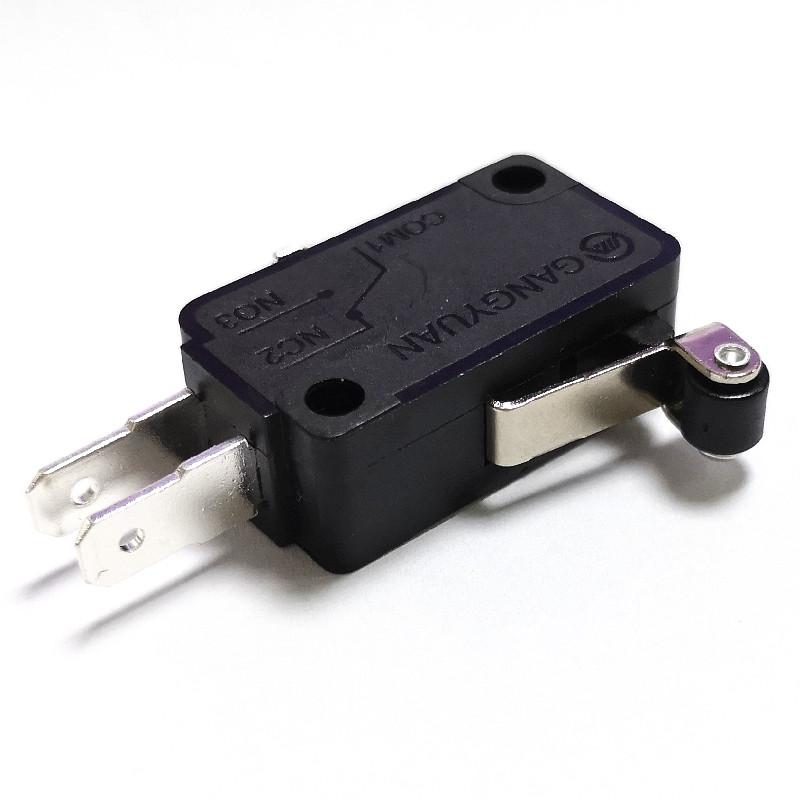

Short hinge roller lever micro switch

Mechanical Life: 1,000,000 cycles of operation shall be performed continuously at a rate of 60 cycles per minute without load.

  • Brand:

    Gangyuan
  • Item NO.:

    G20-16DM06-150-1170
  • Order(MOQ):

    500pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

16A 125/250VAC SPDT micro switch with roller lever

Terminal Style: 6.3x0.8mm


 Basic Information


Product type Micro switch
Rating 16A 125/250V AC
Contact resistance ≤200mΩ
Insulation resistance ≥100MΩ
Operating force 150±50gf
Life 10000 cycles
Operating temperature range -25℃~+125℃
Operating relative humidity ≤85%

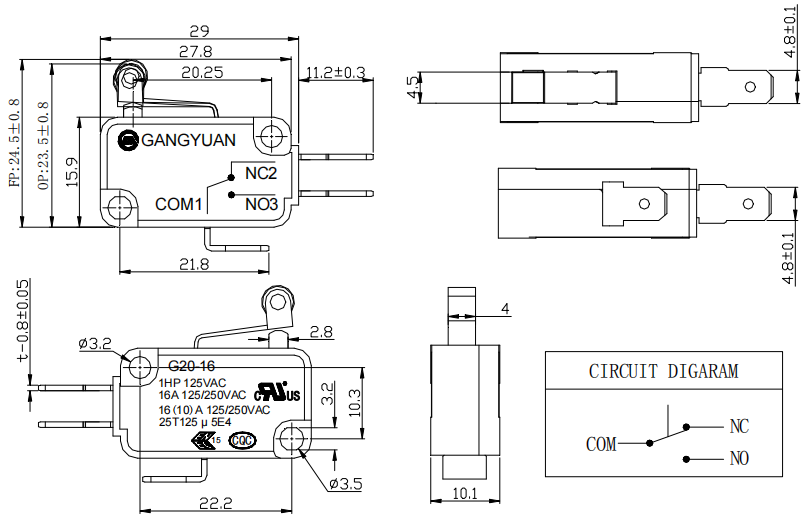

 Dimension

 Product features


1. Type:G20 Micro switch

2. Circuit Code: SPDT

3. Lever Type: Short roller handle


 Micro switches noted


Generally, the operating force of a micro switch is up to 200gf. If it exceeds 200gf, the life will be unstable.


 What does micro switch mean ?


A Micro Switch is a small, very sensitive switch which requires minimum compression to activate. They are very common in home appliances and switch panels with small buttons. Because they are reliable and sensitive, micro switches are often used as a safety device.

  FAQ


1. Q: Are you Switch manufacture/ factory? Location?

    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. About micro switch, MOQ is 1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
