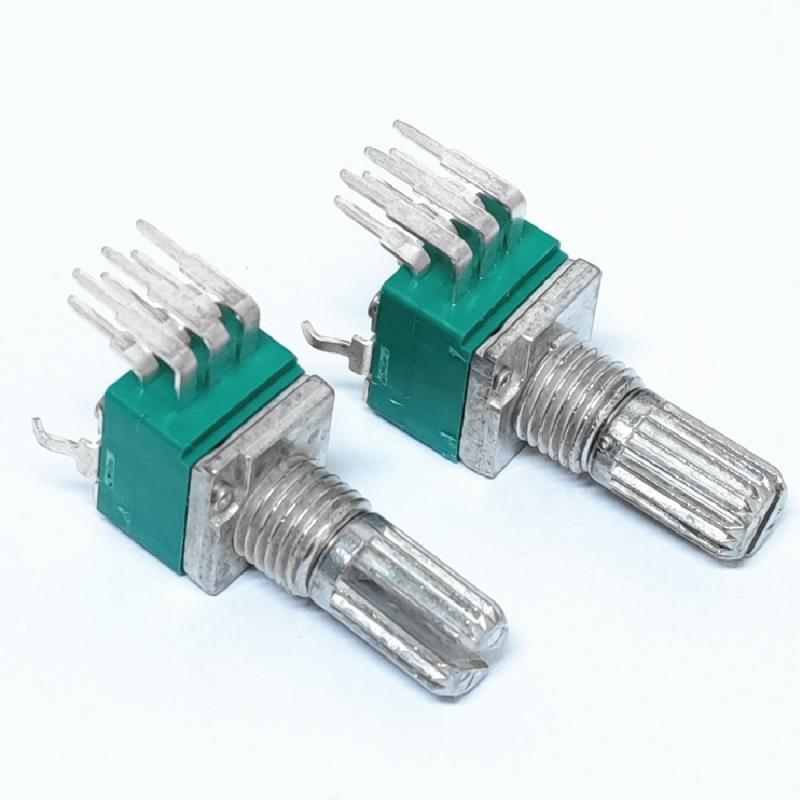

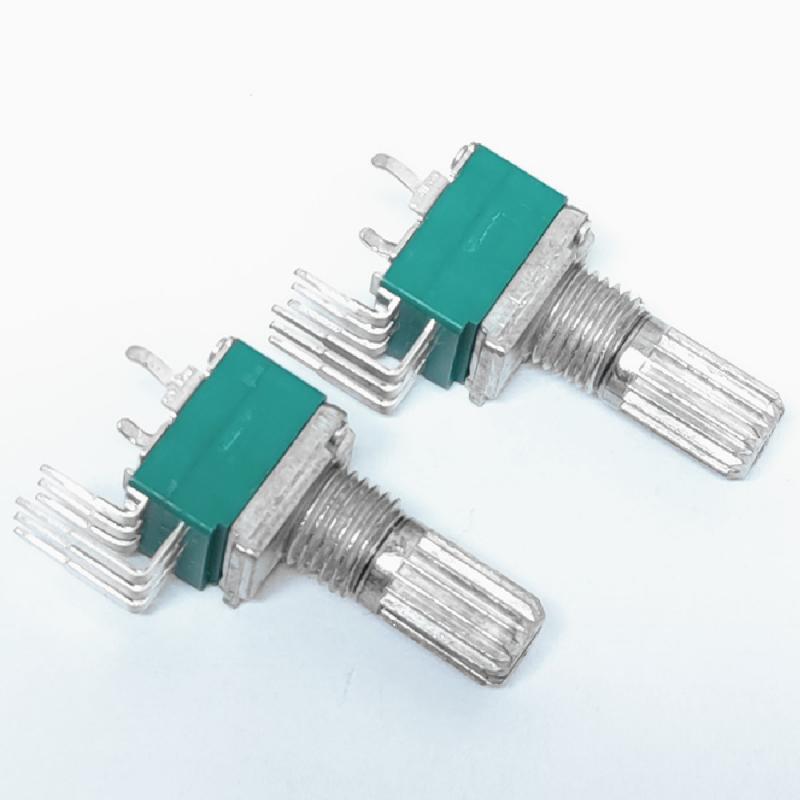

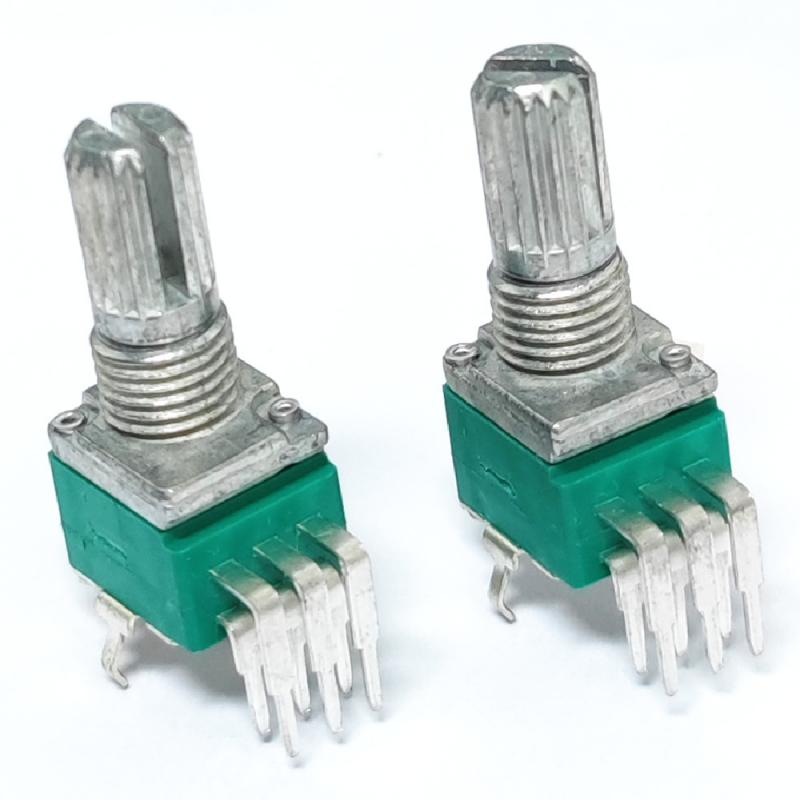

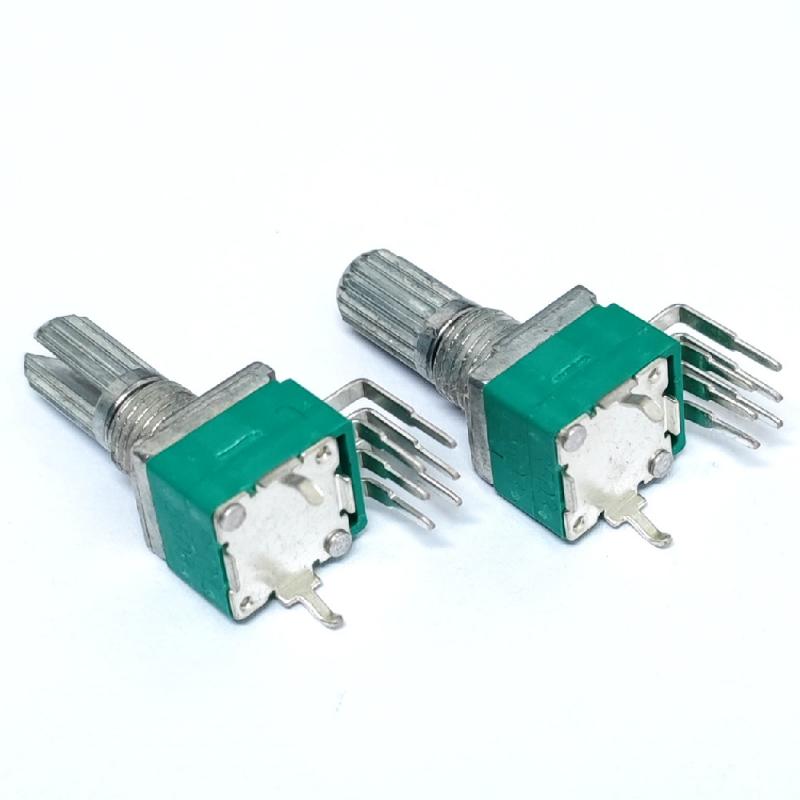

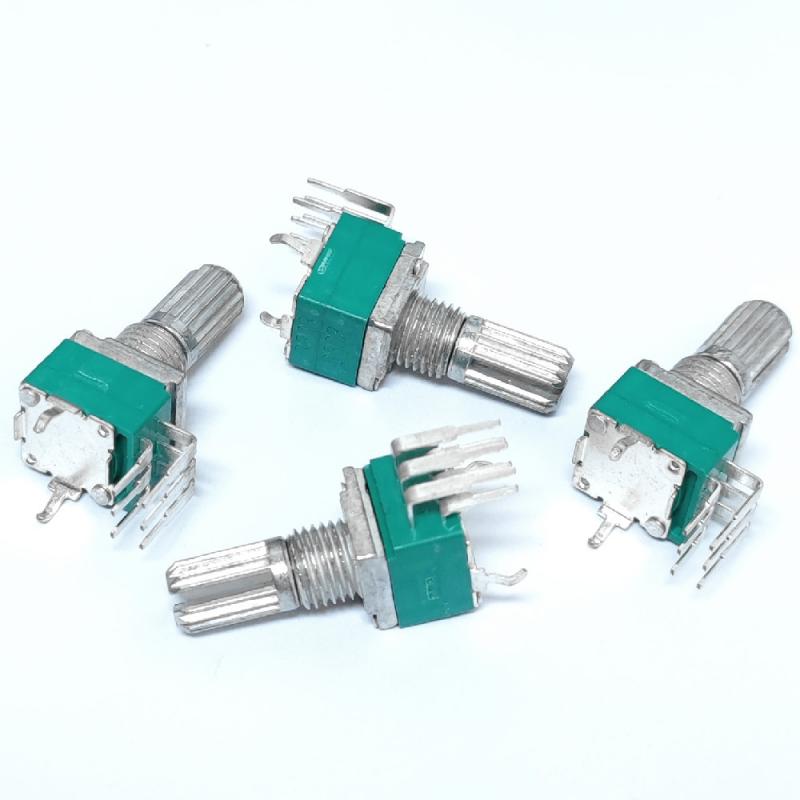

Linear B50K Rotary Potentiometer

Double or multiple couplets AC 50V DC 10V straight Pc Pins

potentiometer supplier

Parameter

potentiometer rheostat

Total Resistance: 50 KΩ（Terminal 1～3)

Insulation resistance: 100 MΩMax

Total Rotational Angle: 300°±5°

Number of Detents(click): 1C (11C/21C/41C for customer choice)

Life Rotationa: 10,000±200 cycles

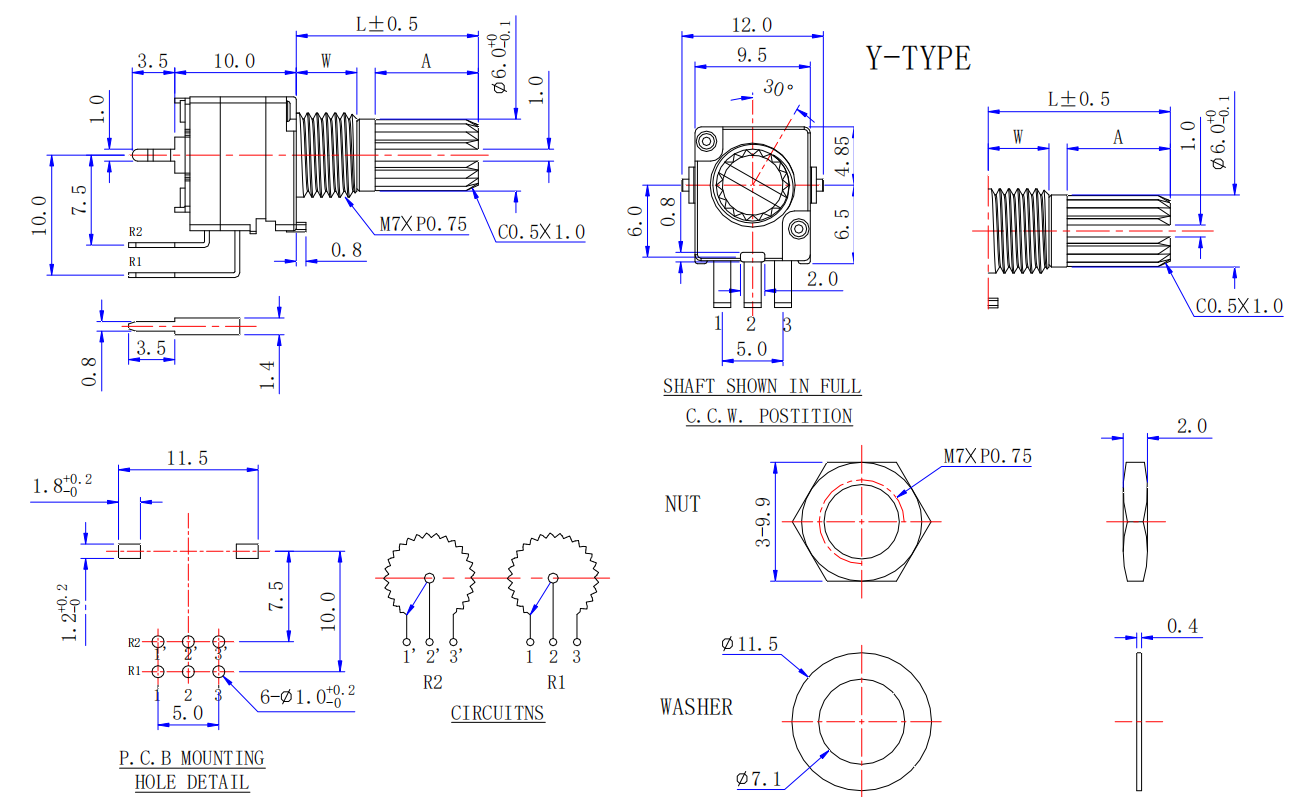

Drawing

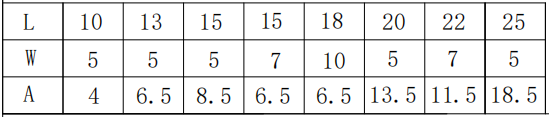

L: 15 W: 5 A: 8.5

The difference between Potentiometer and Encoder

1. The rotation angle of the potentiometer and the encoder is very different
There is an essential difference between a potentiometer and an encoder. The most direct way to distinguish is: the potentiometer is the one whose rotation angle is less than one circle, and the encoder is the one that can rotate 360 degrees infinitely.

2. The working principle of potentiometer and encoder is different
1) Potentiometer
The principle is to change the resistance output by rotation, because there is a resistor inside the potentiometer, and the resistor has an angle limit, so the rotation angle is less than 360 degrees.
2) Encoder
The principle is to change the pulse output by rotation, because the inside of the encoder is a contact, and the pulse is changed by turning on and off, so it can rotate 360 degrees infinitely.

Application of potentiometer

• In power supply products, such as: switching power supply, UPS power supply, high-frequency switching power supply, inverse frequency power supply, charger, frequency converter, etc.;
• On home appliances, such as: induction cooker, humidifier, air conditioner, range hood, lighting, electric fan and other small home appliance control panels, etc.;
• In communication products, such as: walkie-talkie, cable TV equipment, mixer, window intercom, etc.
