Home Transformer & Connector dual contact 20 pin fpc connector

dual contact 20 pin fpc connector

The connector with double contact points can improve the directionality of the contact points of the cable assembly when the customer is in the research and development stage.

  • Brand:

    Gangyuan
  • Item NO.:

    GYFC0520-XXRX-G
  • Order(MOQ):

    2000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    White
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

2mm Top right angle type dual contact FPC/FFC connector


 fpc connector datasheet

Series name: FPC Connector

Pitch between: 0.5 mm Pitch

Height: 2.0mm

Number of contacts: 04~60

Ratings:50V AC/DC 0.5A

Plating: Gold flash over Nickel

Assembly style:  RU -  Right Angle / Up Contact Type

                        RD - Right Angle / Down Contact Type

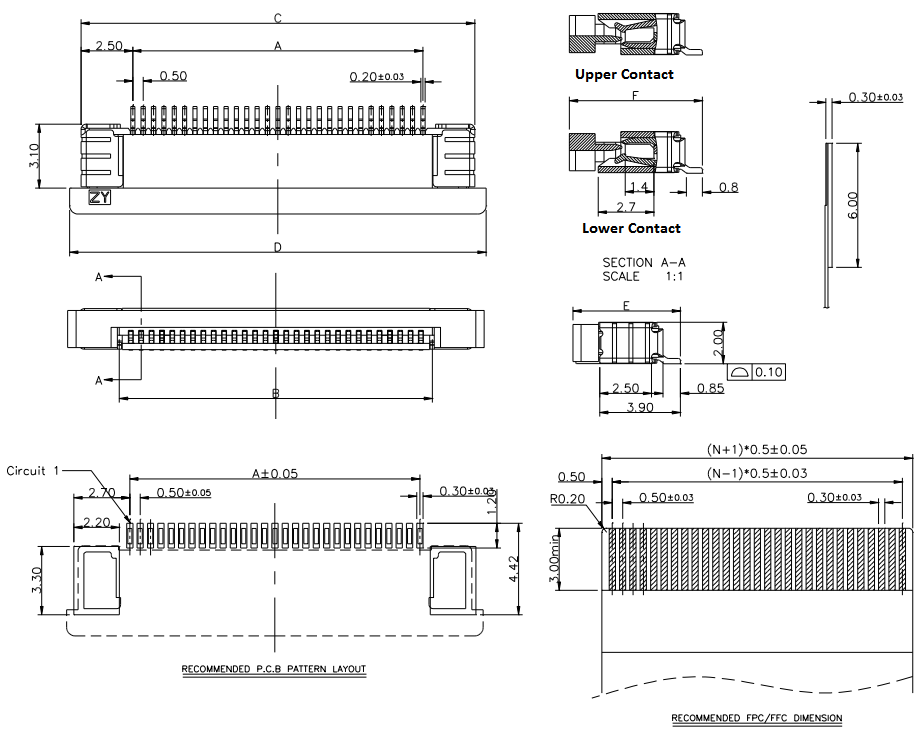

 Dimentions

ZIF ( zero insertion force)- Drawer type connector

When the cable is inserted, push the cover in like a drawer, and use the thick cover to press in and contact the terminal, which has better clamping force.


 Quality guarantee


Stored at a condition of temperature -5℃~35℃,humidity 25%~85% and ensure that it be unsealed after delivery,

it can be stored for 3 months. Should especially avoid the environment of high humidity and corrosive gases.
