A type of connector intended to connect FPCs (Flexible Printed Circuits) and PCBs (Printed Circuit Boards). A method of connecting FPCs is directly inserting them into the connector. Connection with FFCs (Flexible Flat Cable) is also possible.
Brand:
GangyuanItem NO.:
GYFB0520-XXRD-GOrder(MOQ):
1500Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
WhiteShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentLow Contact SMT Type 0.5mm pitch pcb FPC connector

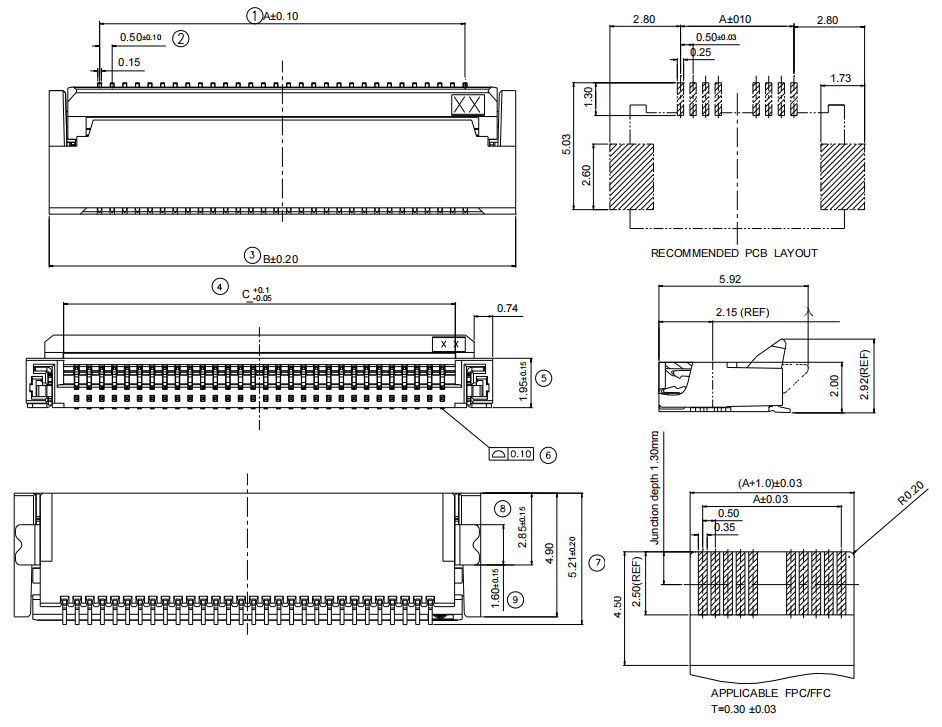

FPC connector datasheet
Series name: low profile flex printed circuit connector
Pitch between: 0.5 mm Pitch
FPC connector pinout
What is the difference between FFC and FPC connector ?
The main difference between FPC and FFC is that a flexible flat cable refers to any type of electrical cable that is flexible and flat, while an FPC is a
flexible printed circuit. The construction of FFC cables means that they take up much less space, and can offer greater flexibility than round cables.
Types of FPC/FFC Connectors
FPC: Flex Printed Circuit
FFC: Flexible Flat Cable
ZIP (Zero Insertion Force) - Front Flip Type Connector
The user does not need to make any effort when inserting the cable. After the connector cover is opened, the user only needs to insert the cable to
its position, and then press down the cover.
ZIP (Zero Insertion Force) - Back Flip Type Connector
The upper cover of the connector is opposite to the insertion direction of the cable, which can prevent the cable from being detached when the cover
is opened due to the bending of the cable.
