Home Switch Tactile switch White SMD Push Button Tact Switch

White SMD Push Button Tact Switch

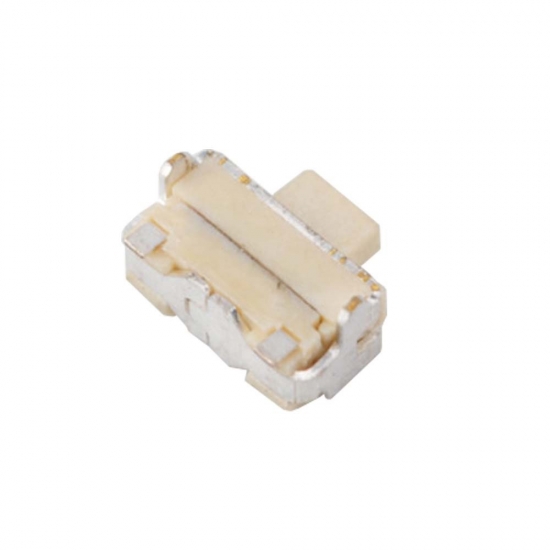

KAN0241H: White SMD 1.8*4mm mini tact switch.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0241H
  • Order(MOQ):

    1000
  • Payment:

    T/T, Paypal and etc.
  • Product Origin:

    China
  • Color:

    White
  • Shipping Port:

    Shenzhen, Ningbo
  • Lead Time:

    5-7 working days
  • Product Detail

White SMD Push Button Tact Switch

Basic Information

P/N
KAN0241H
Dimension
 1.8x4.1mm
Rating current
12VDC 50mA
Operating force
157±50gf
Life cycles
100,000cycles
Height 2.8 or 3.5mm

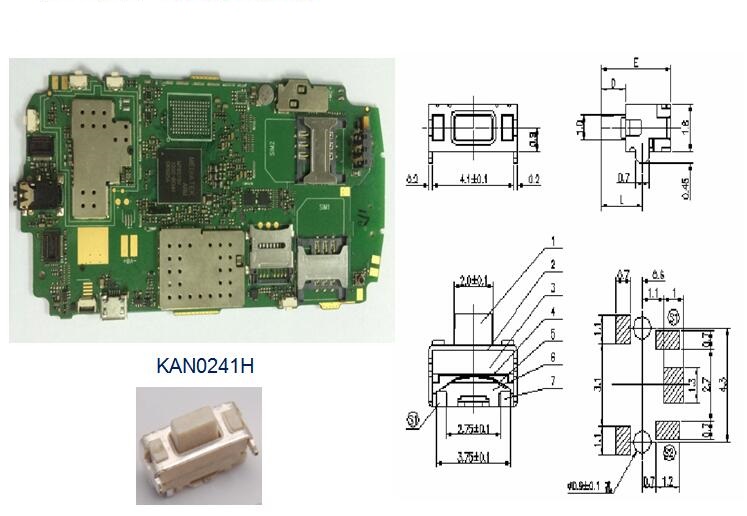

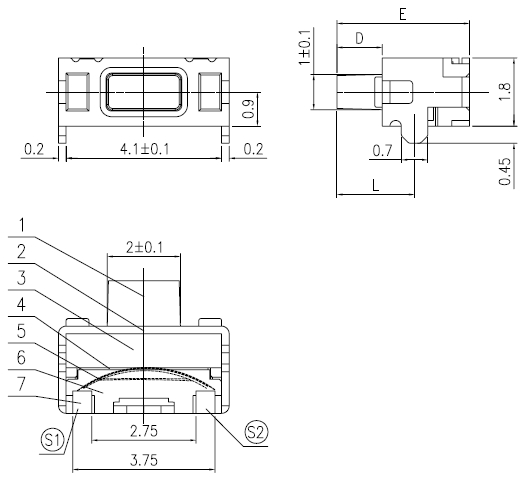

Outline Drawing



Our advantage


1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.

3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches
2.Please don’t immerse soldering flux into tact switches
3.Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4.The second welding should be done after switches return to normal temperature



Appliance

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
