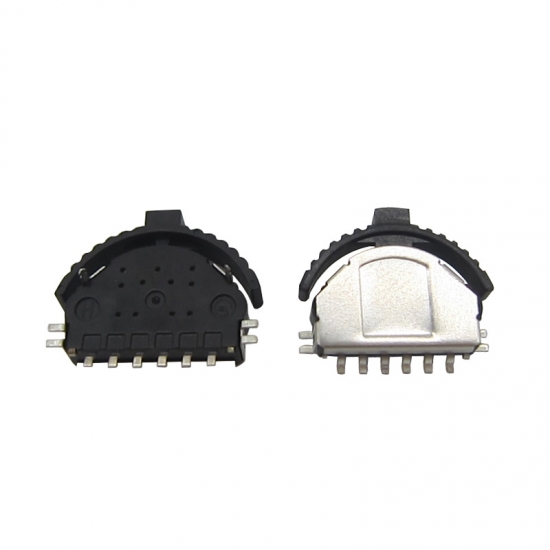

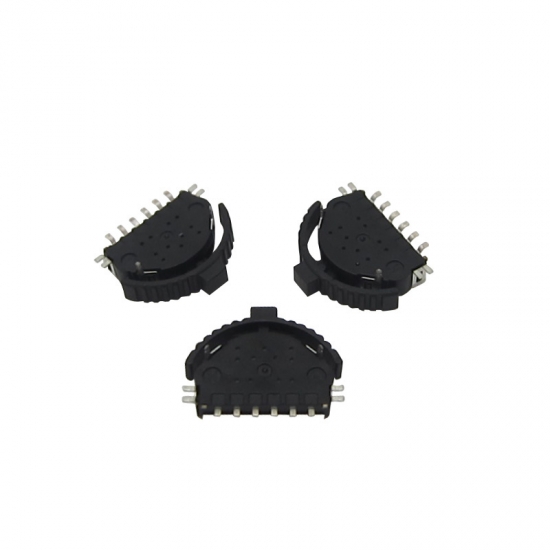

Mini Round Wheel Type Tact Switch smd leave switch audio controller

Mini Round Wheel Type Tact Switch push button switch smd leave switch, 10mA 5VDC with High Quality.

  • Brand:

    Gangyuan
  • Item No.:

    LER-C5
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black or grey
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000
  • Lead Time:

    3 -5Working Days after payment
Product Details

Mini Round Wheel Type Tact Switch smd leave switch audio controller


Feature

Model Name:  high quality smd push button leave switch

Model No.: LER-C-TP

Dimension: 13.55 x 10.2mm

Operating force: Push position: 200±100gf

 Lever position: 80±50gf

Life cycles: 100,000 Cycles

Salt Mist: 24h±1h

DC rating: 10mA 5VDC
Full travel : 0.25±0.1mm

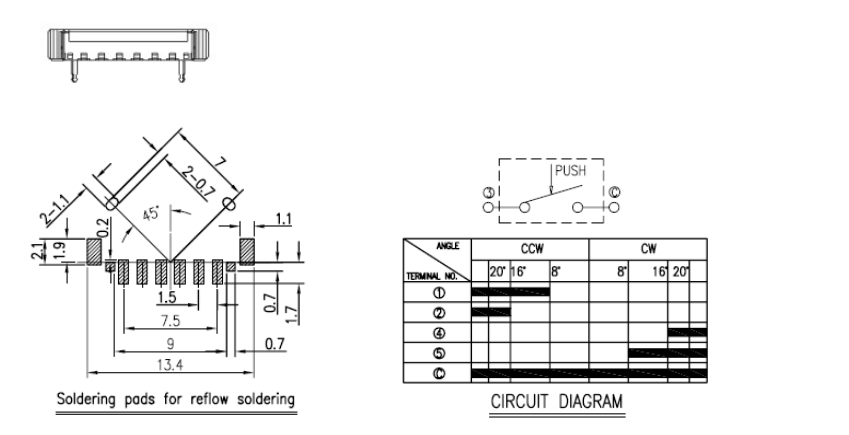

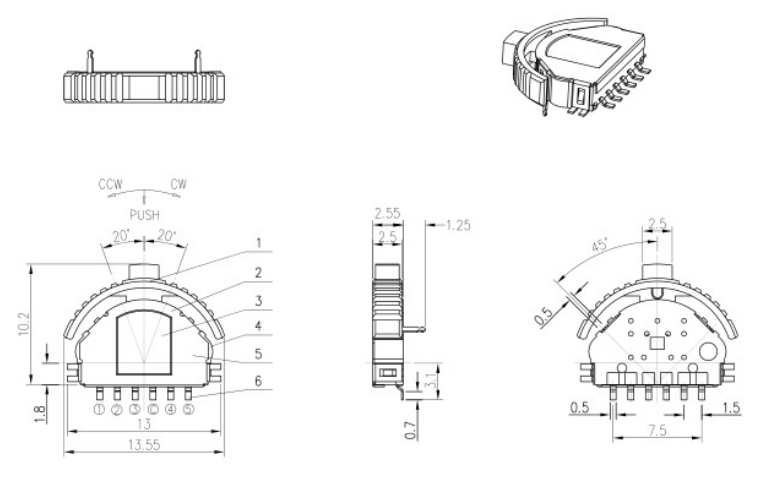

Dimension





Application

use for Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance.
