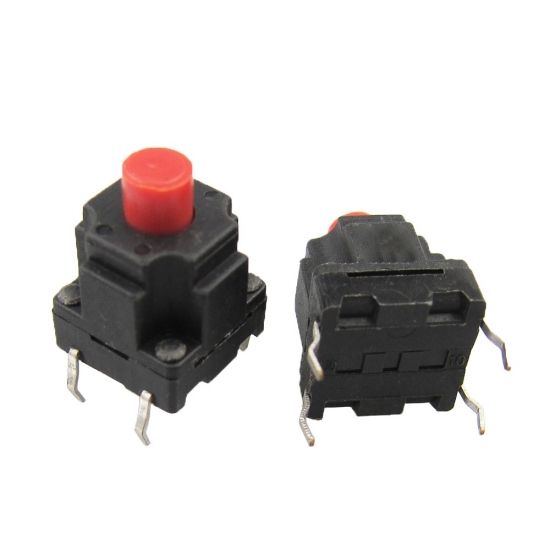

10x10mm 4pins on off tact switch

KAN1011: DC12v 50mA, 10*10mm, 4 pins dip tact switch.

  • Brand:

    Gangyuan
  • Item No.:

    KAN1011
  • Payment:

    T/T, Paypal full payment before produce
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Ningbo/ Shenzhen
  • Min Order:

    1000
  • Lead Time:

    5-7 working days depend on order quatity
Product Details

10x10mm 4pins on off tact switch


Basic Information

P/N
KAN1011
Dimension
10*10mm
Rating current
12VDC 50mA
Operating force
250gf/350gf
Life cycles
60,000
Travel
0.25±0.1mm

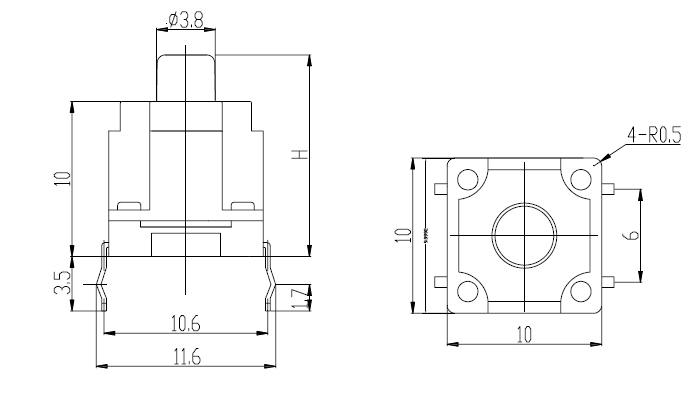

Dimension


Tact Switch Using Attention

1. Please be cautions not to give excessive static load or shock to switches.
2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.



Our Factory View

1. Gangyuan Electronics was founded in 1994, decades tact switch manufacturing experience.
2. Strong R&D group for related switches, sockets, transformers, relays series.
3. Headquartered in Zhejiang Province, China. with 3 plants over area of 5000 square meters and 100k grade clean process line.
4. The soonest respond to clients question. Sales offices with our top sales located in HK,Taiwan, Brasil, South Korea, Singapore.

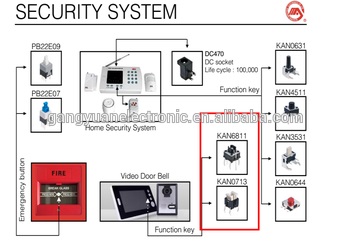

Application

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
