Home Switch Tactile switch vertical tact switch manufacturers

vertical tact switch manufacturers

Horizontal with Bracket Tactile Push Button Switches

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0448B-0601C
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

china tact switch supplier right angle tactile push button switch

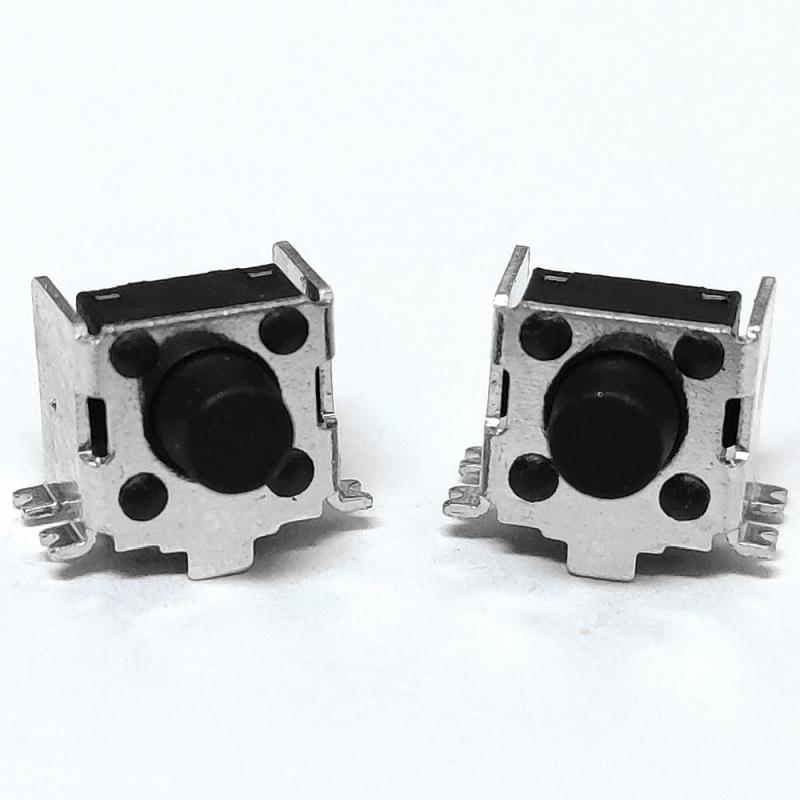

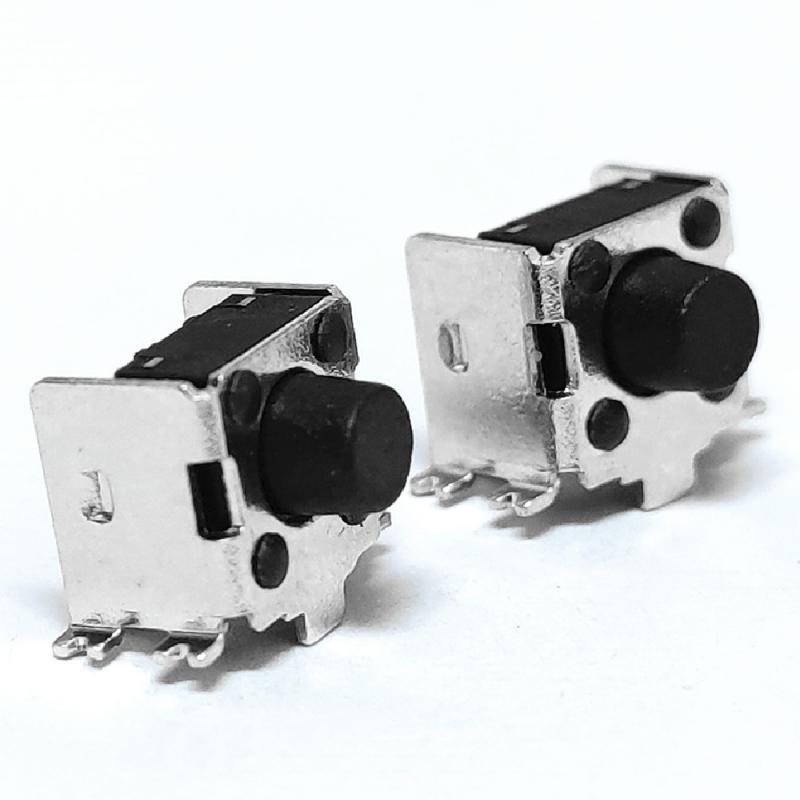

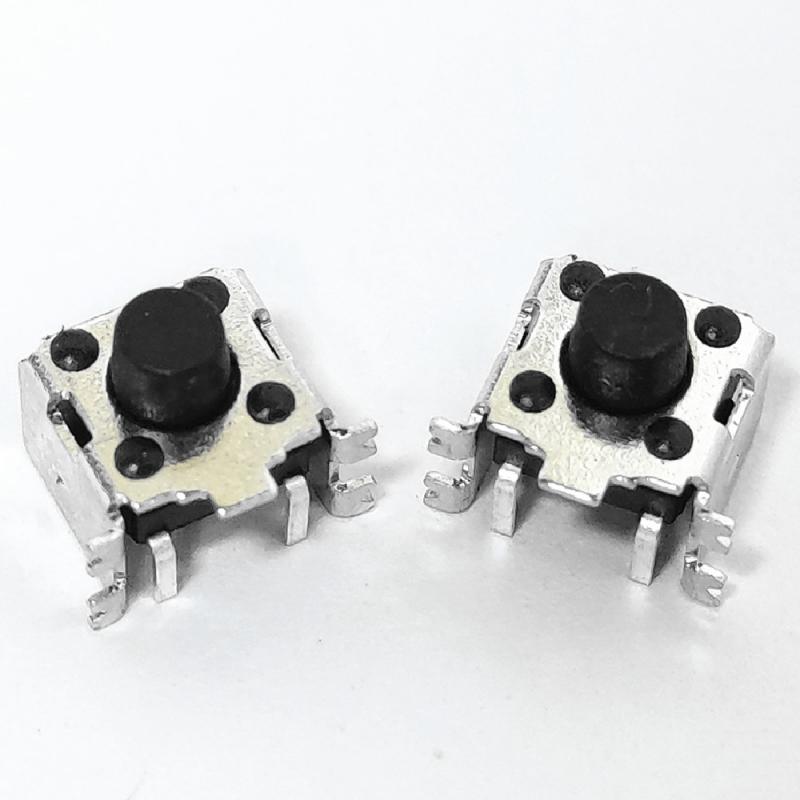

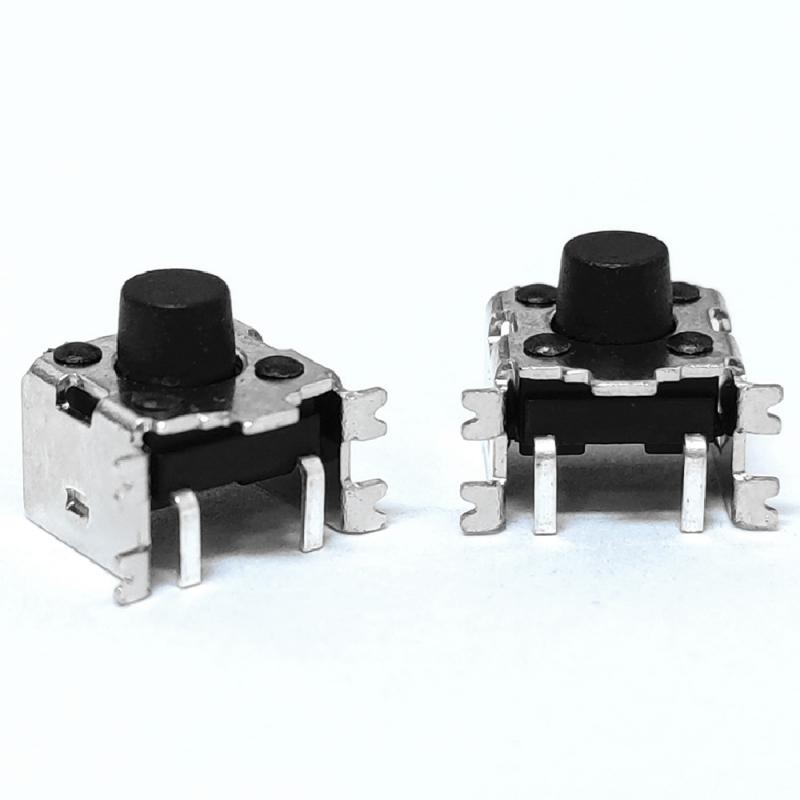

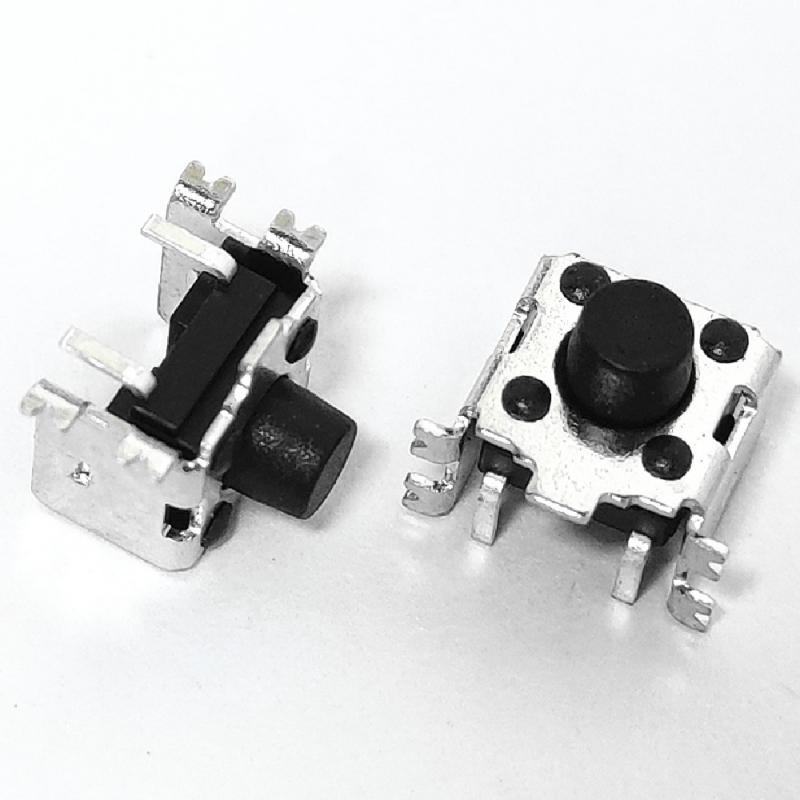

Side push type tact switch with metal bracket


 Tact switch datasheet

Ratings: DC 12V 50mA(Max)
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating Force: 250±40 gf ( Or 100gf and 160gf )
Full Travel: 0.25±0.1mm
Life Time(mating cycles): 100,000 cycles
Height: 6 mm ( Have other height can choose: 4.3mm~10mm )

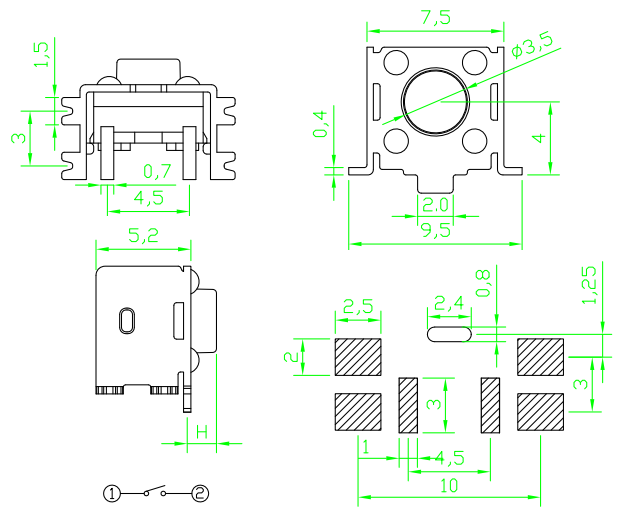

 Tact switch dimention


 what is a tactile switch ?

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. ...

The switch activates when pressed and then turns off when released.


 Switch factory

  • 26 Years
  • 800 Employees
  • 85 Patent
  • 2.5 billion annual output

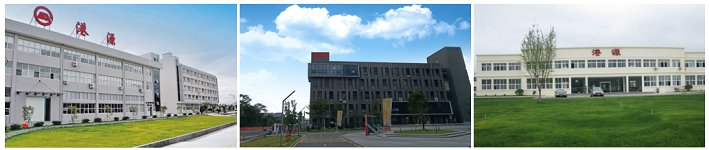

            Wenzhou Factory                                Shenzhen Factory                              Hubei Factory


Wenzhou Factory  - Headquarters/manufacturing plant: Engaged in the development and production of switches,

switch components,transformers and other products;


Shenzhen Factory - R&D Center/Experimental Factory: Engaged in the design, development, verification, trial production

and small-scale production of products.


Hubei Factory - Manufacturing plant: OEM production of switch main used in Home Appliances, and Potentimeters.
