Home Switch Tactile switch SMT side actuated tact switch

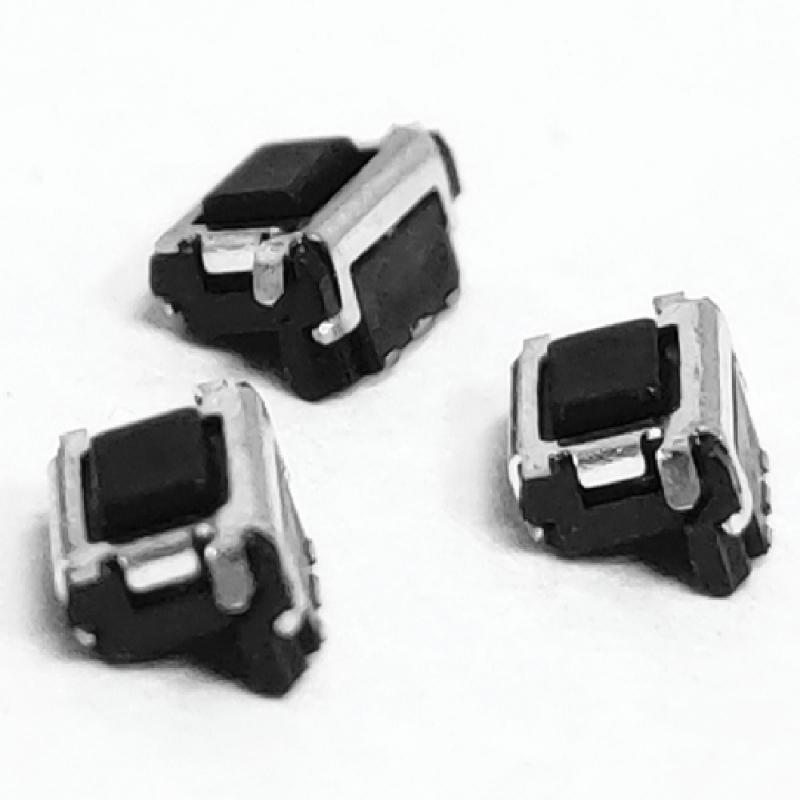

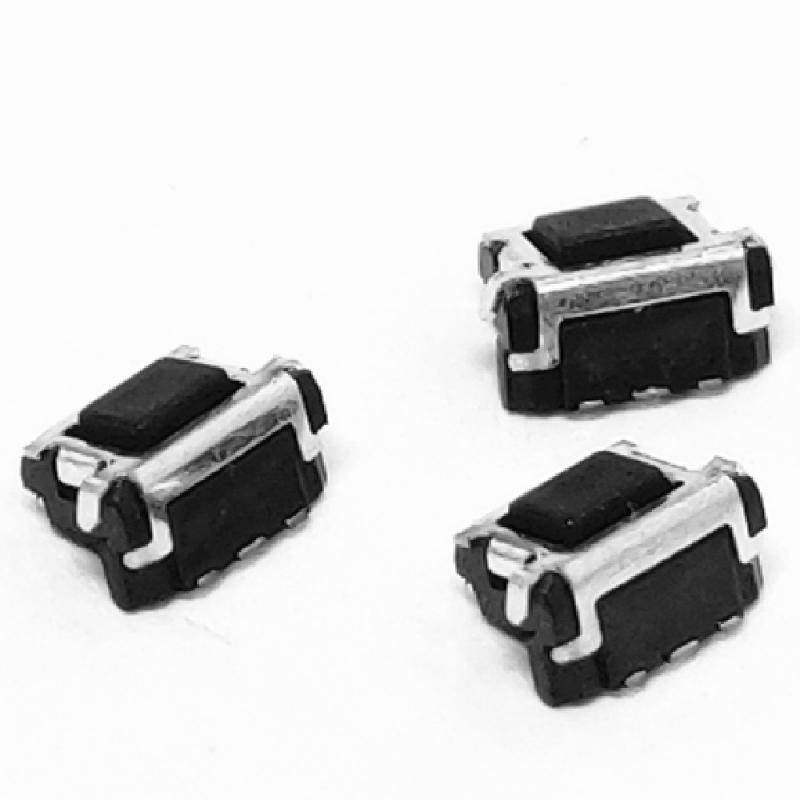

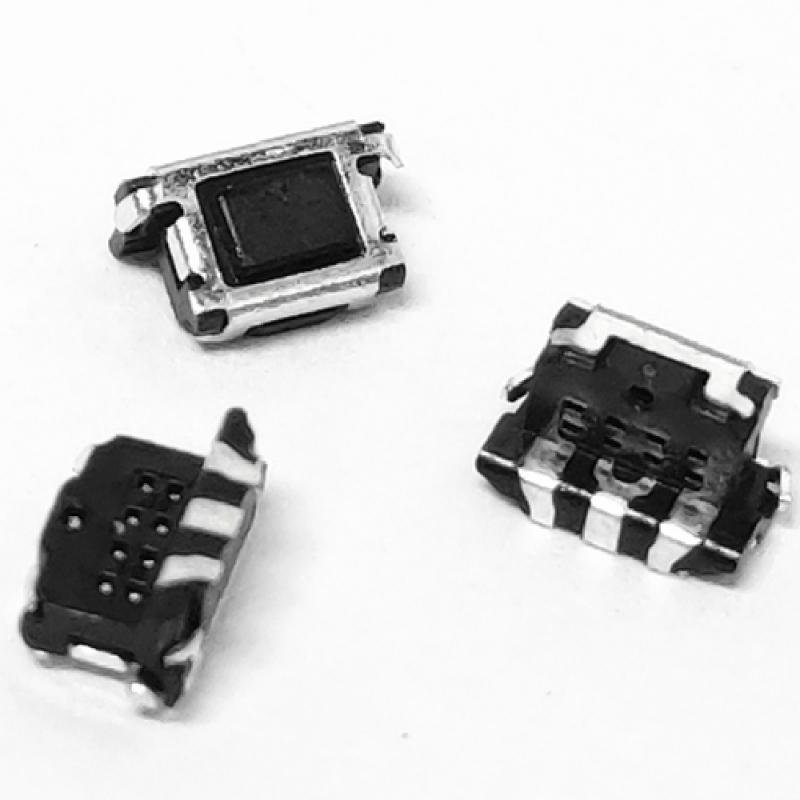

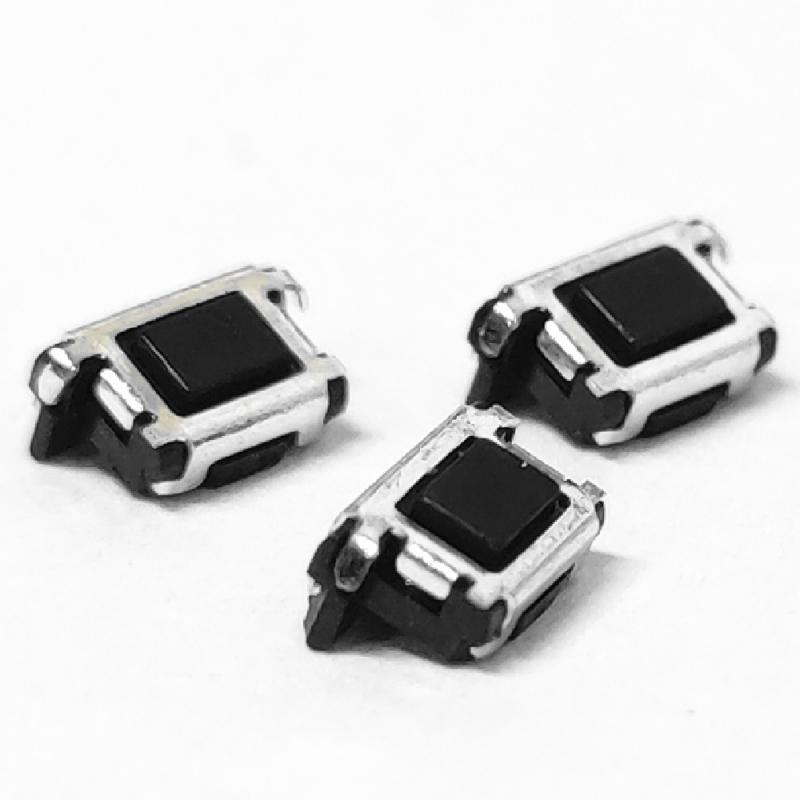

SMT side actuated tact switch

This compact smd tact switch is ideal for applications such as sports watches, hearing aids, and the latest IoT portable devices. Smaller, more reliable switches are required for designs with limited PCB space.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0345-0261B1
  • Order(MOQ):

    2500
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

wholesale ultra side actuated smd tactile switch

4.6x2.2mm pushbutton tact switch


 Tact switch datasheet

Type: ultra thin tact switch

Ratings: DC 15V 20mA(Max)DC 2V 10μA (Min)

Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating Force: 160±50 gf
Full Travel: 0.15±0.1mm
Life Time(mating cycles): 100,000cycles
Height: 2.2mm

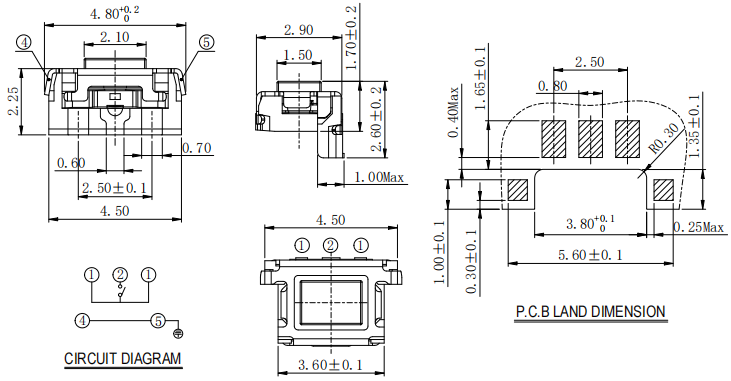

 Tact switch schematic


 Typical application

Sport watch / Hearing aids / Lot portable device


 How does a tact switch work?

Tactile Switches are signal switches that require a touch to open or close. Tact switches work when contact is made

with the dome structure of the switch. This creates a contact to complete a circuit and the signal to complete the specified function.
