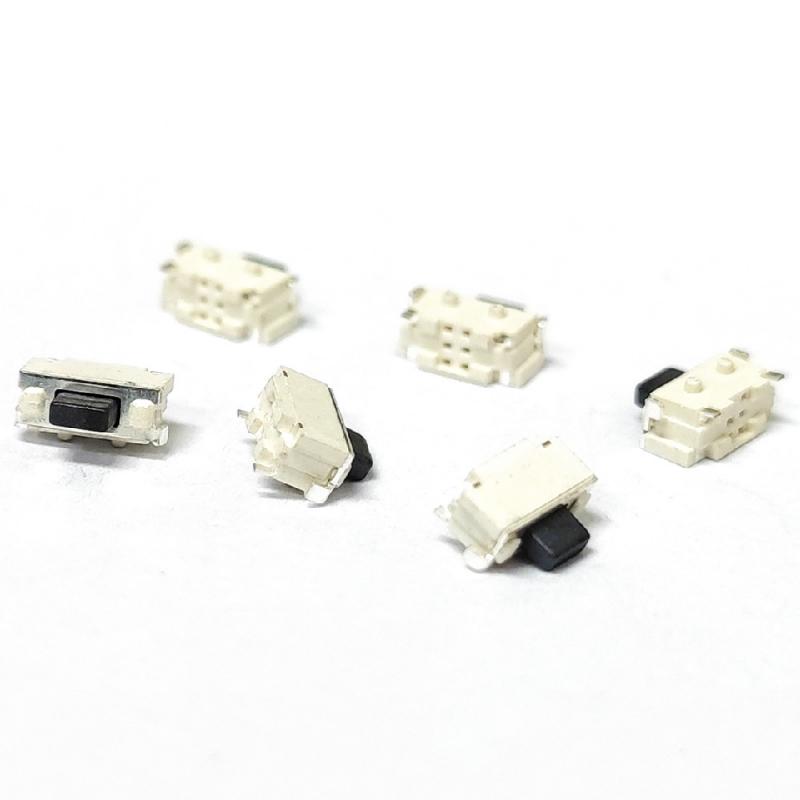

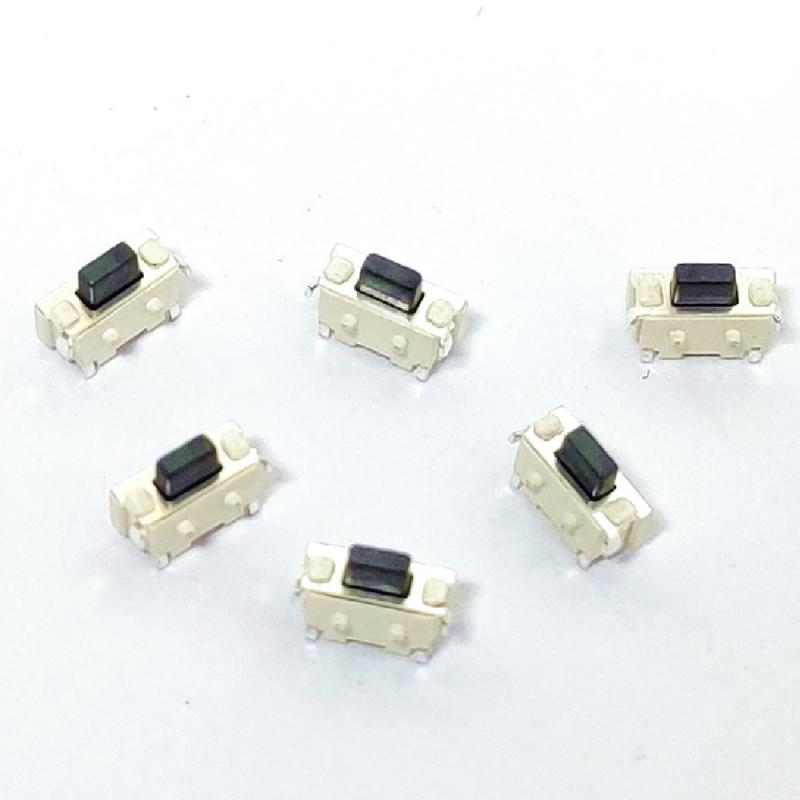

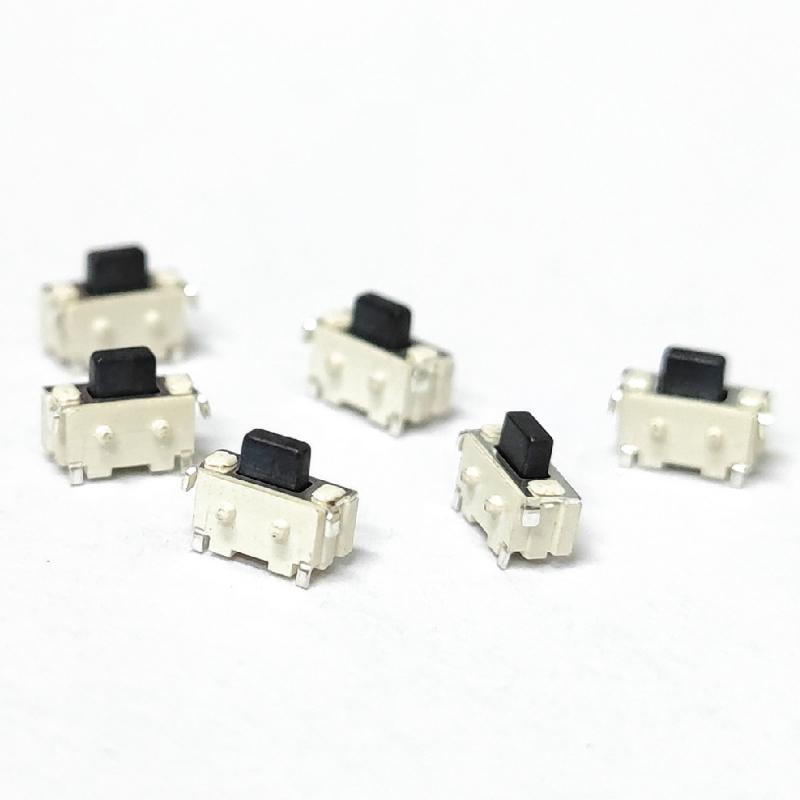

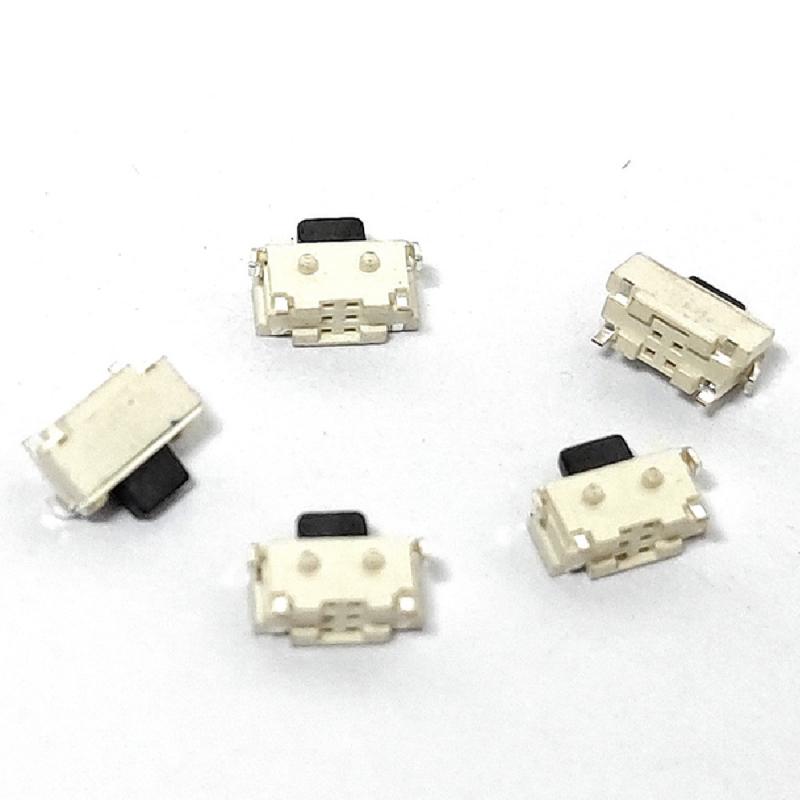

Home Switch Tactile switch miniature tactile switch factory

miniature tactile switch factory

A tactical switch is a momentary switch. This means that the switch will only work when it is physically held down. Once pressure is released, the switch will disconnect and the action will stop.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0251A-0351B1-29
  • Order(MOQ):

    3000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    White
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

low profile smt tactile switch suppliers 4 pin tact switch with positioning post

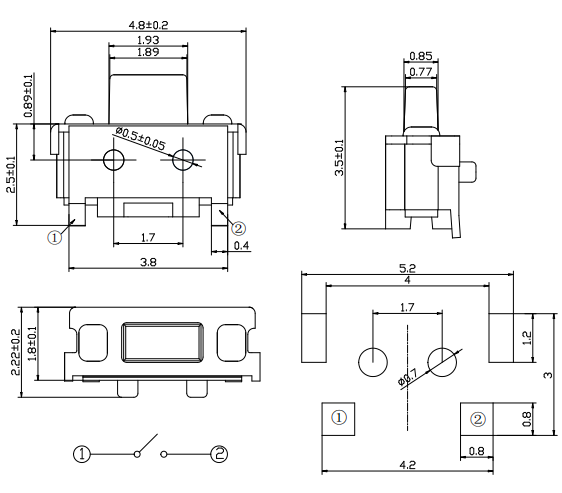

 datasheet switch 4 pines

Ratings: DC 12V 50mA(Max)DC 1V 10μA (Min)Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating Force: 170±50 gf
Full Travel: 0.2±0.1mm
Life Time(mating cycles): 50,000 cycles
Height: 3.5mm


 Tact switch schematic

 Tactile switch types


                         DIP Tact Switch                                                             Tact Switch with Bracket



                         SMD Tact Switch                                                              Mininature Tact Switch



                            LED Tact Switch                                                            Waterproof Tact Switch




 Why do push buttons have 4 pins?


Most tact buttons have four pins for stability and ease of circuit board design. With four pins, you have inbuild links to skip

over circuit board tracks. A 4-pin tact switch is electrically the same as a 2-pin one.
