Home Switch DIP switch radio volume control switch

radio volume control switch

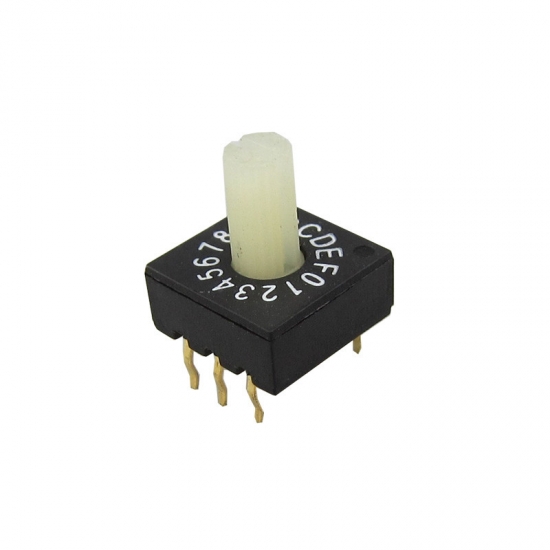

50V 100mA Electronic Dip Switch With 6 Terminals radio volume control switch

  • Brand:

    Gangyuan
  • Item NO.:

    RSH3H-16R-V
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

50V 100mA Electronic Dip Switch With 6 Terminals radio volume control switch

Basic Information

Name  Dip switch
Contact resistance 100mΩ Max
Insulation resistance 1,000MΩ Min.at 100VDC
Operating force

750gf/cm (Standard) 400gf

/cm Max. ( N type)

Life 20,000 Steps
Positions 1,2,3,4,5,6,7,8,9,A,B,C,D,E,F,
Color Red/Black/Blue

Dimension

rotary dip switch.jpg

mini dip switch.jpgdip rotary switch.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
