Home Switch DIP switch 7 Positions 14 Pin DIP Switch

7 Positions 14 Pin DIP Switch

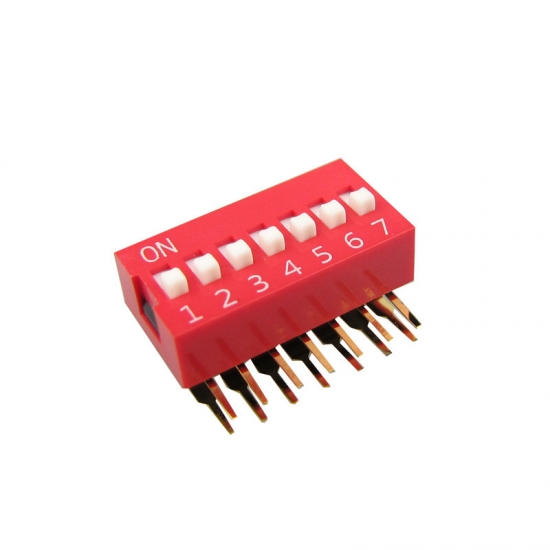

24VDC/25mA Mini 7 Positions 14 Pin DIP Switch

  • Brand:

    Gangyuan
  • Item NO.:

    DA-07-V
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    red
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

24VDC/25mA Mini 7 Positions 14 Pin DIP Switch


Basic Information

Non-Switching Rating 100mA 50VDC
Switch Rating 25mA 24VDC
Circuit Single Pole Single Throw
Contact Resistance 50mA max at initial
Operating Temp. -20℃+ 70℃
Operating force ≤9.8N
Mechanical life  2,000 operation per switch
Stroke  2.0mm

Dimension

dip switch programming.jpgdip switch car.jpgdip switch function.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
