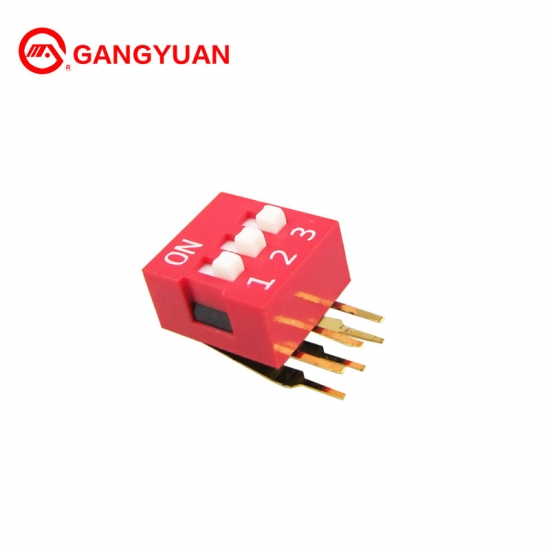

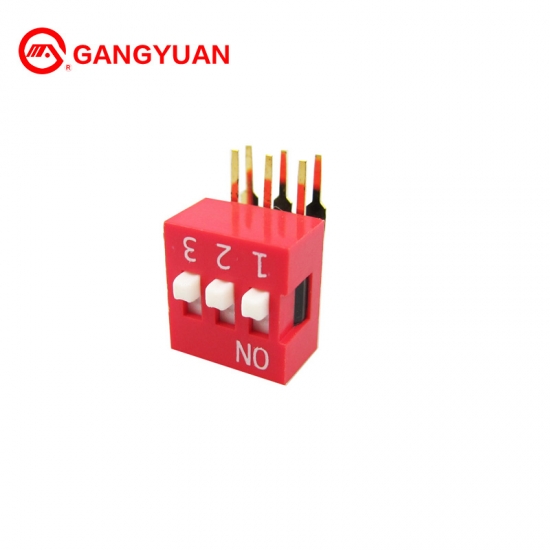

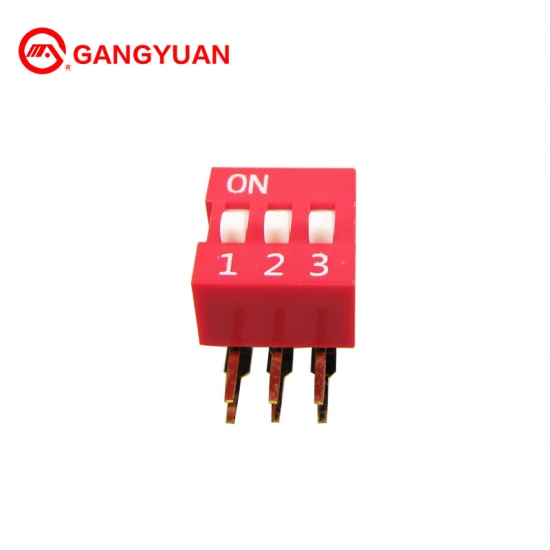

3 Pin SPST Electronic red DIP Switch

Through hole mount DIP Switch Through hole mount DIP Switch

  • Brand:

    Gangyuan
  • Item No.:

    DA-03
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    red
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

 3 Pin SPST Electronic red  DIP Switch

Product Description:

• Through hole mount DIP Switch

• From 2 to 12 positions

• Tape sealing available

• Tube packaging option


Specifications:

Non-Switching Rating
100mA 50VDC
Switch Rating
25mA 24VDC
Circuit
Single Pole Single Throw
Contact Resistance
50mA max at initial
Operating Temp.
-20℃+ 70℃
Operating force
≤9.8N
Mechanical life
2,000 operation per switch
Stroke
2.0mm

Part-number Code:





A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
