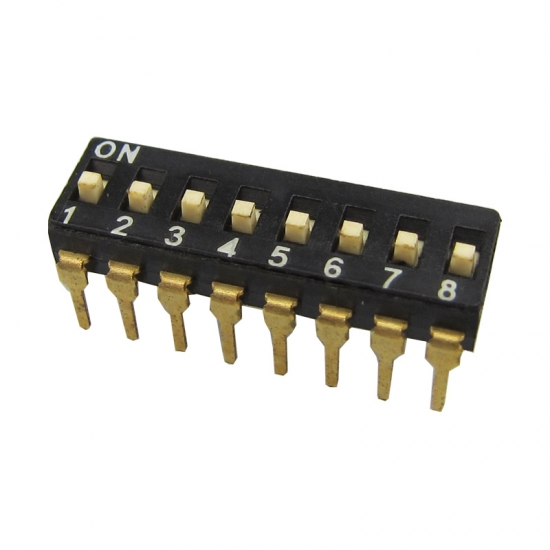

CDH Series Through Hole Type DIP Switch 2.54

CDH Series dip switch from 1 to 12 position options, 2.54mm pitch, terminal copper alloy, golden plated.


  • Item NO.:

    CDH Series Through H
  • Order(MOQ):

    2000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail



Product item: CDH Series Through Hole Type DIP Switch 2.54


Technical parameters

1.Electrical Life : 2000 operations cycles per switch 24 VDC, 25mA

2.Non-Switching Rating : 100mA, 50VDC

3.Switching rating : 25mA, 24VDC

4.Contact resistance : (a) 50 mΩ max. at initial (b)100mΩmax. after life test

5.Insulation Resistance : 100MΩ, 500VDC

6.Dielectric Strength : 500VAC1 minute

7.Capacitance : 5pF max

8.Circuit : Single pole single throw

9. Operation Force :6.0N Max

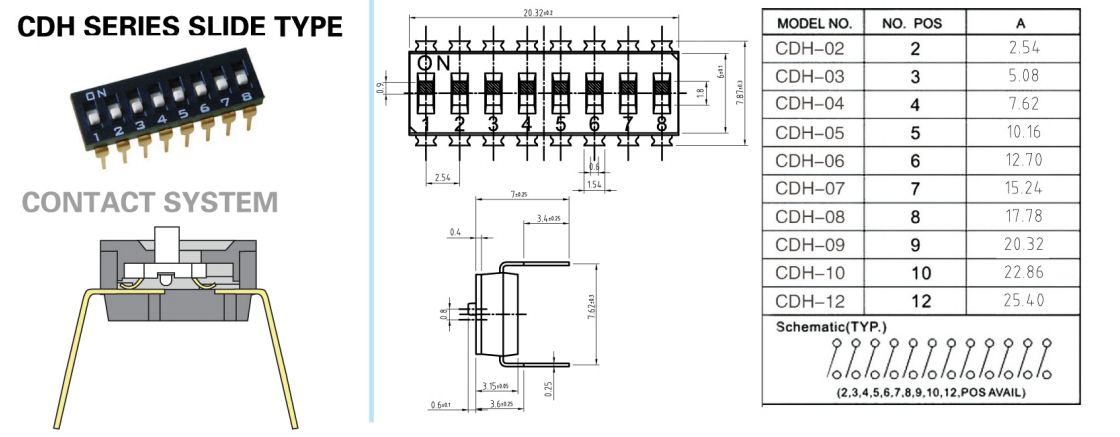

Dimension

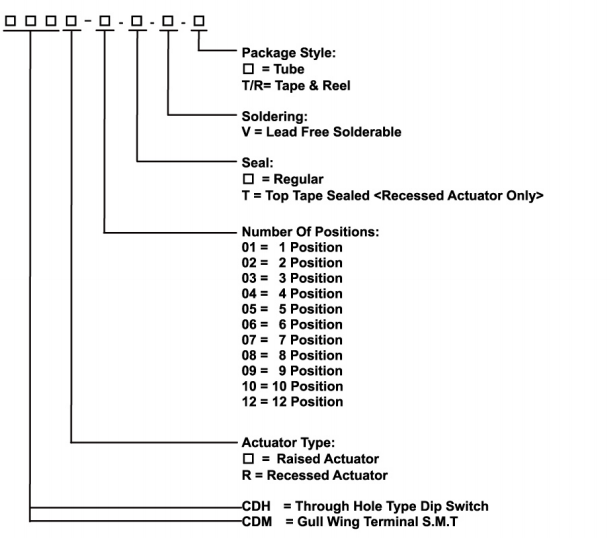

Order code







Attention


1.Keep all switch contacts in their OFF position for all operations.

2.WAVE SOLDERING: 500°F (260) max. 5 sec.

3.HAND SOLDERING: Use a soldering iron of 30 watts, controlled at 608°F (320)approximately 2 seconds while

applying solder.

4.CLEANING PROCESS : Flux clean using force rinse, high agitation or triple bath cleaning method. Freon TF or TE give excellent results. When vapor methods are used do not subject the switch to solvents at temperature above 125°F (51)
