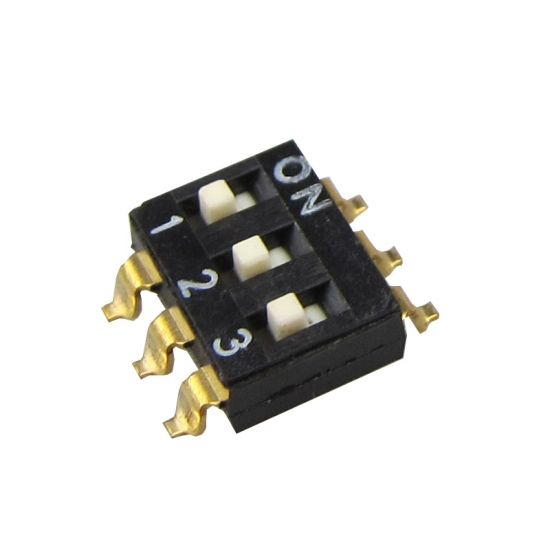

CDM Series DIP Switch

CDM series DIP switch, low profile for space saving, gold contact provides high reliability, top tape type for washing process.


  • Item No.:

    CDM Series
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    10 working days after payment
Product Details

Product Item: CDM Series DIP Switch



Technical Parameter

Contact Rating:25mA 24VDC(switching), 100mA @50VDC(non-switching)

Electrical Life:2,000 operations min.

Contact Resistance:50mΩ max.

Insulation Resistance:100MΩ min.

Dielectric Strength:500VAC/1 min

Operation Force:1,000gf max.

Circuit:SPST



Application

Industrial control

Automatic machines control

Telecommunication

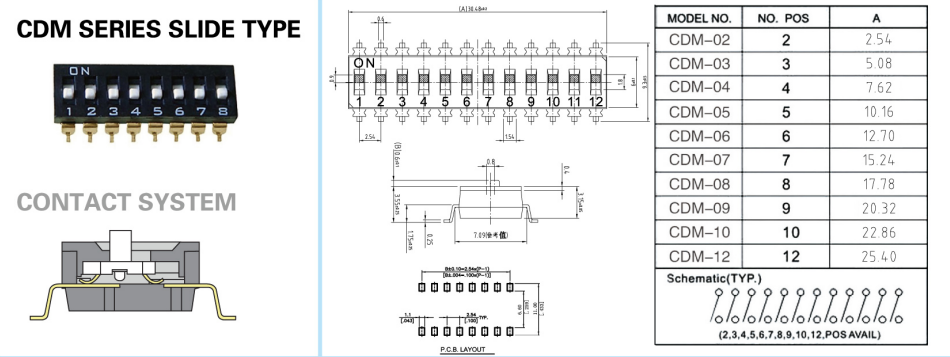

Dimension
