Wenzhou Gangyuan Electronics Co.,Ltd.

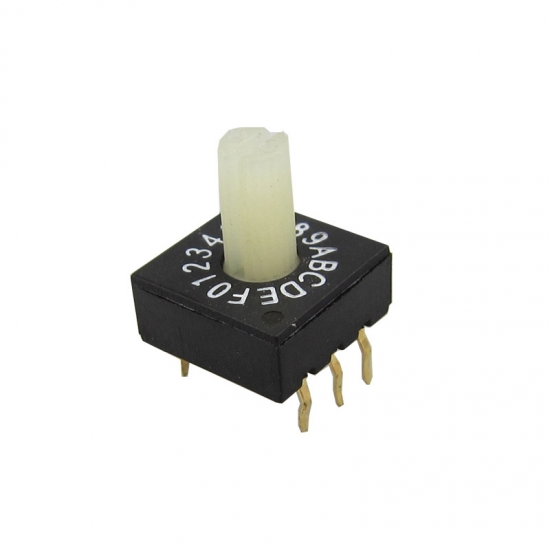

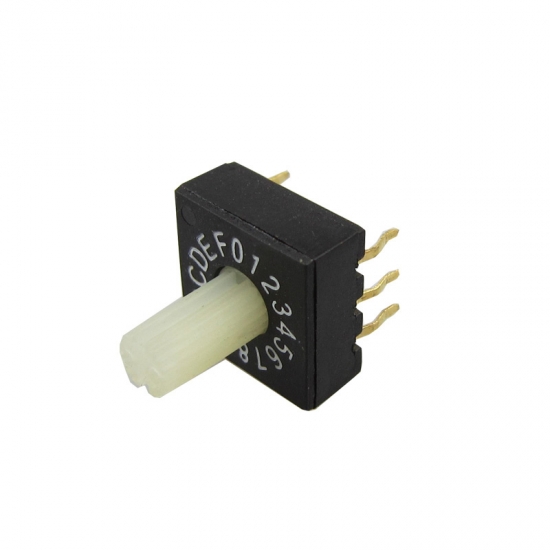

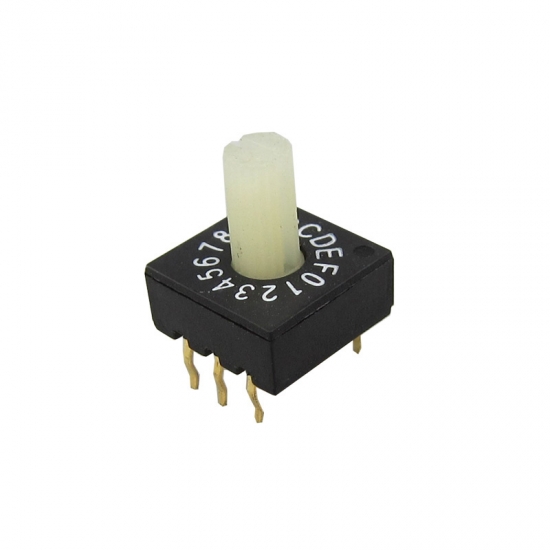

Rotary dip switch has 15 positions with nice quality.
Brand:
GangyuanItem NO.:
RSH3H-16R-VOrder(MOQ):
1000Payment:
T/T, L/C, D/P and etc.Product Origin:
Zhejiang ChinaColor:
black/red/ blue and etc.Shipping Port:
Shenzhen/ Ningbo portLead Time：
5-7 working days depend on order quatity50pc Rotary Dip Switch BCD code 100mA 50v 10x10x4.5mm
Basic Information
|
Product type |
DIP switch |
|
Actuator |
rotary |
|
Positions |
1.2.3.4.5.6.7.8.9.A.B.C.D.E.F |
|
Color |
Red/Black/Blue |
|
Mechanical life |
20,000 Steps |
|
Operating force |
400gf/cm Max |
|
Price |
Could be negotiated |

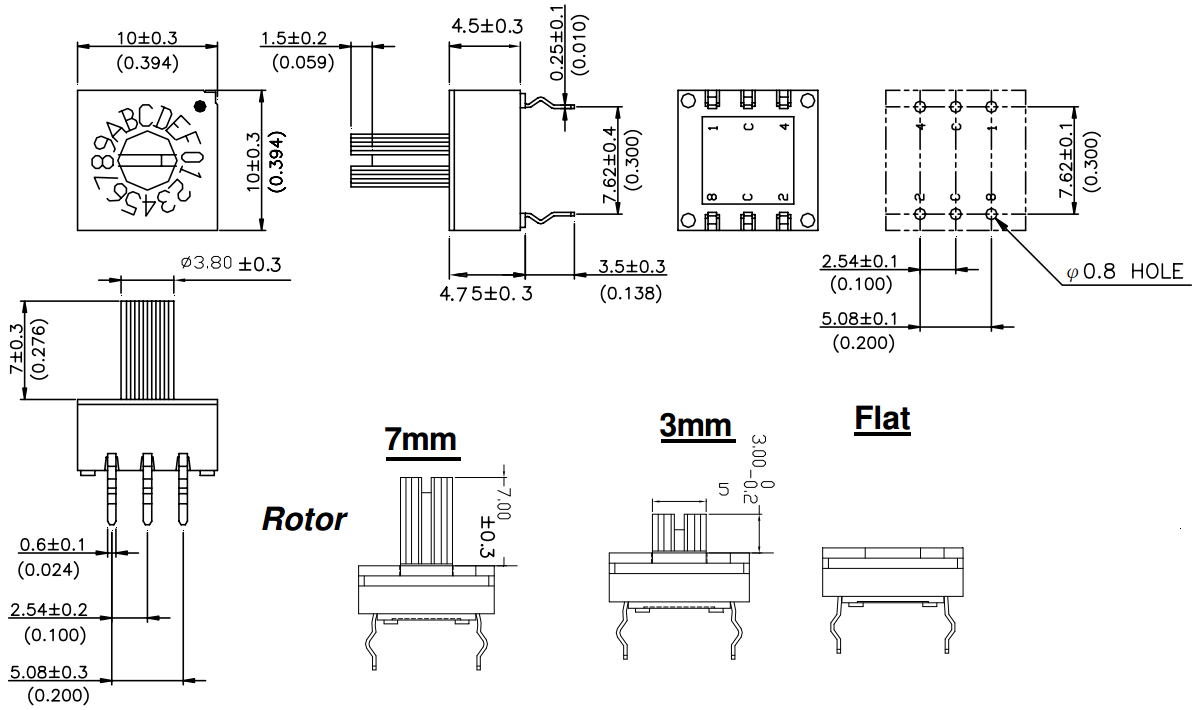

Dimension

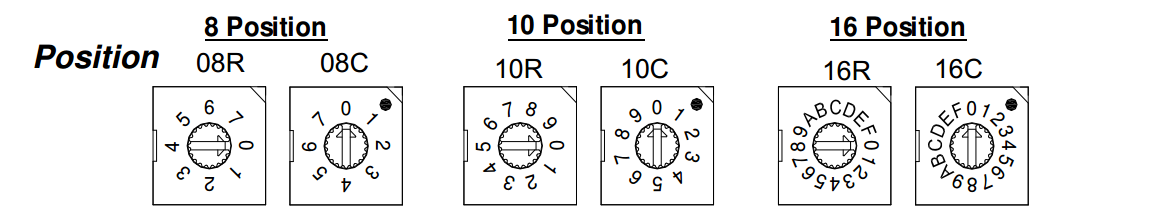

Different Positions
Application
These are often chosen when more than 2 positions are needed, such as a three-speed fan or a cb radio with multiple frequncies of reception or "channels".
Some rotary switches are user configurable in relation to the number of positions. A special toothed washer that sits below the holding nut can be positioned so that the tooth is inserted into one of a number of slots in a way that limits the number of positions available for selection. For example, if only four positions are required on a twelve position switch, the washer can be positioned so that only four switching positions can be selected when in use.
