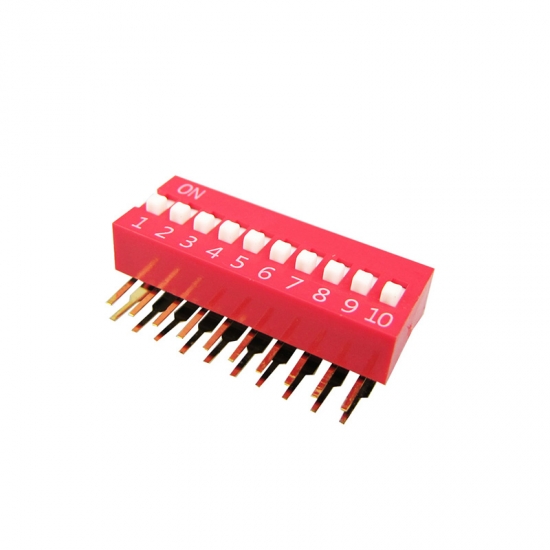

DA Series Slide Type DIP Switch

PC Pin terminal opstions is available with the extended actuator from 2 to 12 positions.


  • Brand:

    Gangyuan
  • Item No.:

    DA Series
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Red Blue Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    2000pcs
  • Lead Time:

    7 Working Days after payment
Product Details


Product Item: DA Series Slide Type DIP Switch



Basic information

Non-Switching Rating: 100mA 50VDC

Switch Rating: 25mA 24VDC

Circuit: Single Pole Single Throw

Contact Resistance: 50mA max at initial

Operating Temp.: -20℃+ 70℃

Operating force: ≤9.8N

Mechanical life : 2,000 operation per switch

Stroke : 2.0mm

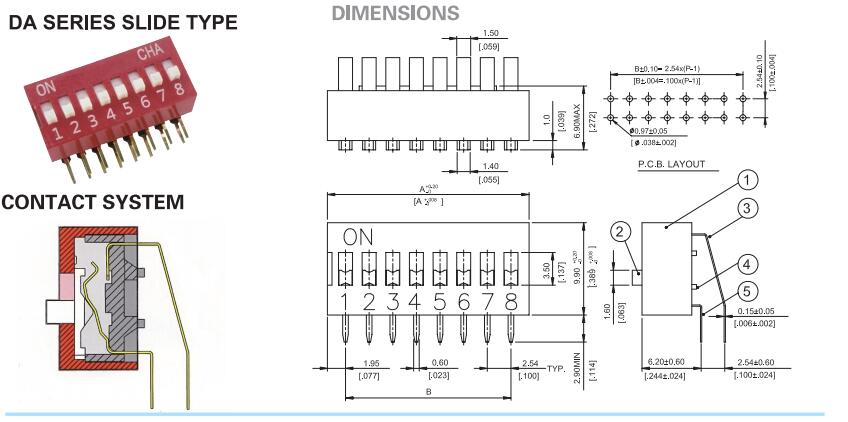

Dimension




Packing

Tube: for Thru Hole & Right Angle & SMD

Reel: SMD SMT Type Only

Lead time: 7-14Days Depends on order quantity
