PCB Tact Tactile Switch

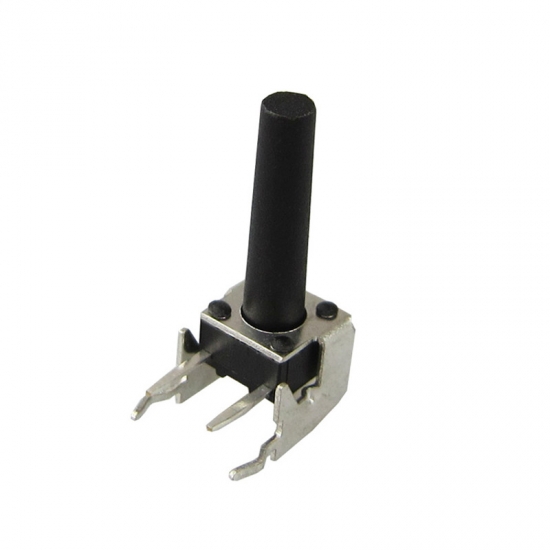

6x6 PCB Mounting Momentary Tact Tactile Switch

  • Brand:

    Gangyuan
  • Item No.:

    KAN0635-1601B
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

6x6 PCB Mounting Momentary Tact Tactile Switch

Kan0635-1801b is applied to PCB button panel of automobile steering wheel, with high quality, super life performance and excellent force feel

Basic Information

Number KAN0635-1801B
Life expectancy: 60,000/80,000/100,000/1,000,000 cycles
Operating force: 100gf/160gf/260gf±50gf
Max. Current: 50mA
Max. Voltage: 12VDC
Life expectancy: 60,000/80,000/100,000/1,000,000 cycles
Function: SPST
Application: Home appliances, set top box etc.
Dimension 6x6x18mm

Dimension

PCB tact switch

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
