Home Switch Tactile switch 06 Series tact switch 4 pins momentary push on tactile switch

4 pins momentary push on tactile switch

6 X 6mm  tact switch with DIP 4 pins momentary push on tactile switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0631-0431B010-42
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    silver
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail


6 X 6mm tact switch with DIP 4 pins momentary push on tactile switch

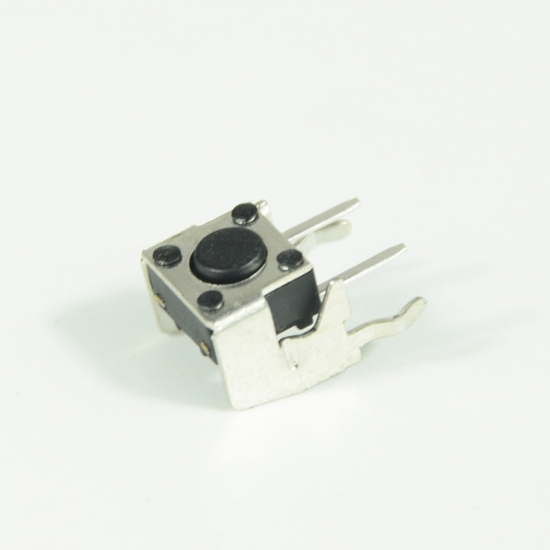

Kan0631-0431b010 is a side right angle tact switch with Operation life of 100000 cycles, rated voltage of 12Vdc, rated current of 50mA.

Basic Information

Number            KAN0631-0431B010-42
Ratings              12V DC, 50mA (Max)
Size                      6x6mm
Contact Resistance                    ≤100mΩ
Insulation Resistance                    ≥100MΩ
Operating Force                    1.6±0.5N
Full Travel                   0.25±0.1mm
Return Force                    0.4N.MIN
Operation life                     100,000 cycles
Stem Strengh                     20N.min.

Dimension

tactile switch pcb

product presentation



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
