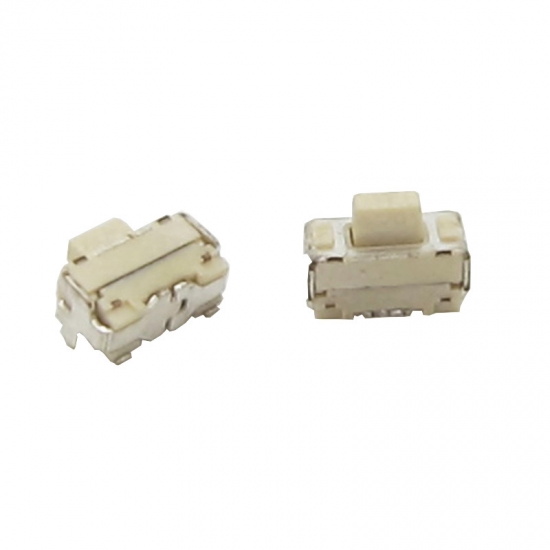

dustproof right angle mini smd tact switch use for Mobilephone tablet pc digital products

dustproof right angle mini smd tact switch China use for Mobilephone tablet pc digital products.

  • Brand:

    Gangyuan
  • Item No.:

    KAN0241H
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    Silver and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000
  • Lead Time:

    3 -5 Working Days after payment
Product Details

dustproof right angle mini smd tact switch use for Mobilephone pc digital products


Feature

Type:SMD tact switch
Dimension:2×4×H/H=2.8/3.5MM
P/N:KAN0241H
Operating force:160gf/260gf
Life cycles:100/200 thousand cycles

Feature:dust proof/anti flux



Basic parameters

Operating temperature:-20℃to+70
Rated current:50mA.12V DC
Insulation resistance:100MΩ min.100V DC
Dielectric strength:250V AC for 1 min
Contact resistance:100m Ω max.
Travel: 0.2±0.1mm

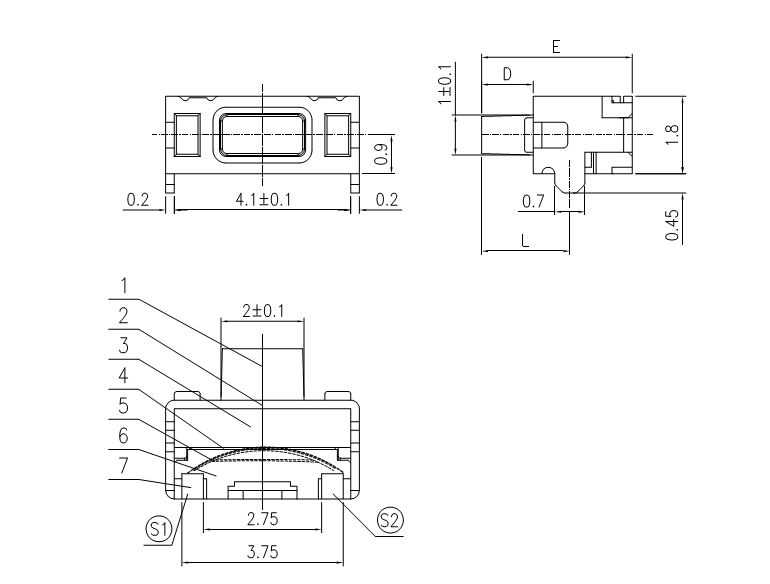

Dimension

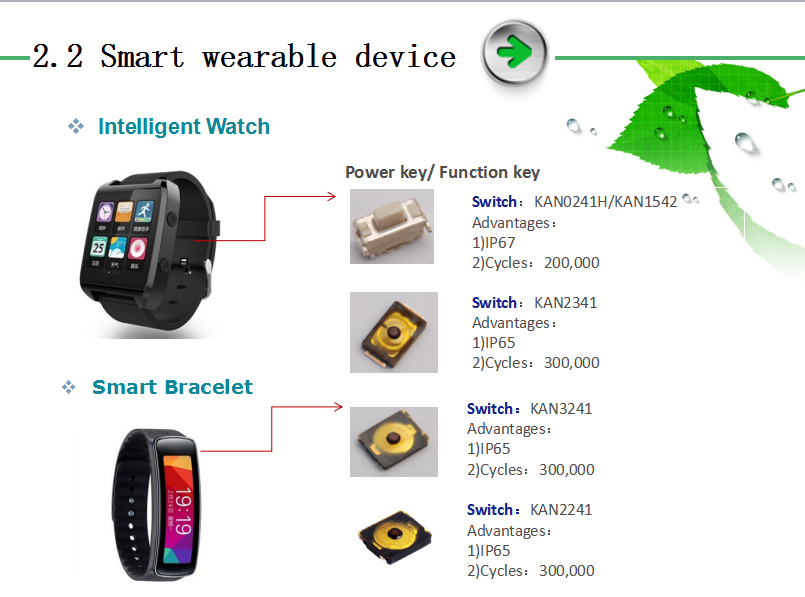

Application

Use for intelligent wearable, digital production, HD /DVD audio FP-TV player, mobile phone and peripheral equipment, cameras and other compact electronic devices.
