mini momentary tactile tact switches

12v 100g/160g/260g mini momentary tactile tact switches

  • Item No.:

    KAN3542A
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    silver
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

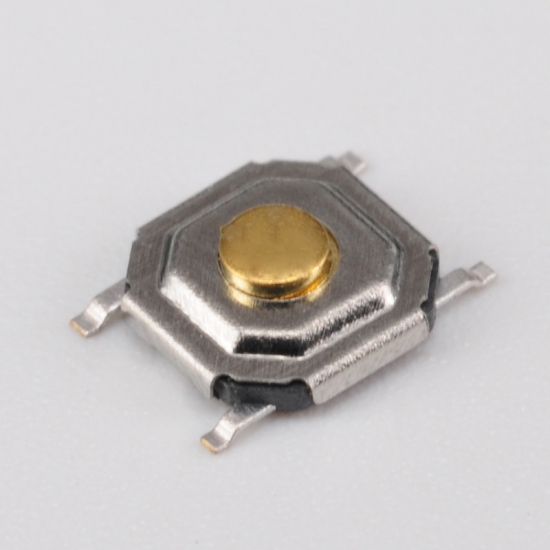

12v 100g/160g/260g mini momentary tactile tact switches

Product Description:

Model Name:

Smd tact switch

Model No.:

 KAN3542A

Dimension:

3.1X3.1X1.5mm

Operating force:

100g/160g/260g

Life cycles:

around 200 000circle

Working tempreture:

-20℃to+70℃

DC rating:

12V DC, 50mA (effective value)

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.25±0.10 mm

Features:

Dust and soldering flux proof




Dimension:
