4 pin push button tact switch

4 pin 5mm 260gf metal push button tact switch

Brand:
Gangyuan
Item NO.:
KAN0542
Order(MOQ):
1000pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
silver
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Product Detail

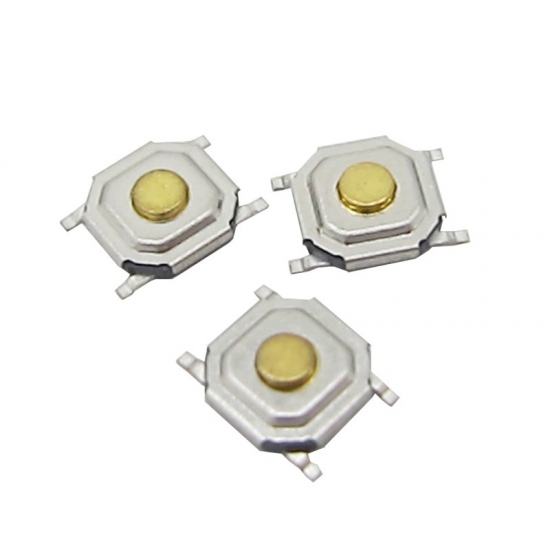

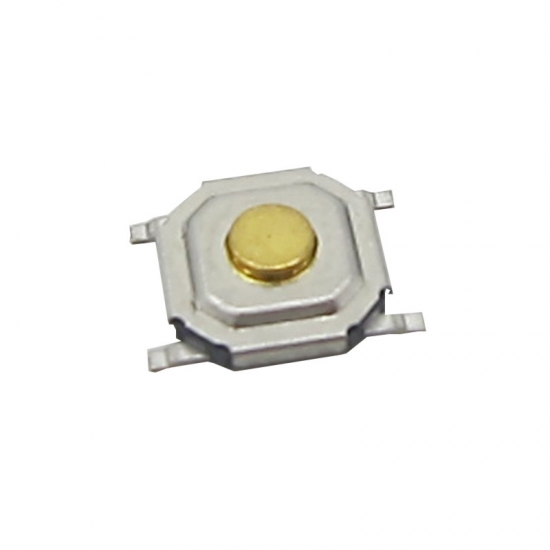

4 pin 5mm 260gf metal push button tact switch

Product Description:

Product name	Tact Switch
Operation force	1.6±0.5N
Full travel	0.2±0.1mm
Return force	0.4N MIN
Heat resistance	80±2℃
Soldering heat resistance	260±5℃5s±1s
Sulfuration resistance	72h,40±2℃
Salt Mist	8h±1h,35℃±2℃
Operation life	100,000 cycles

Dimension:
