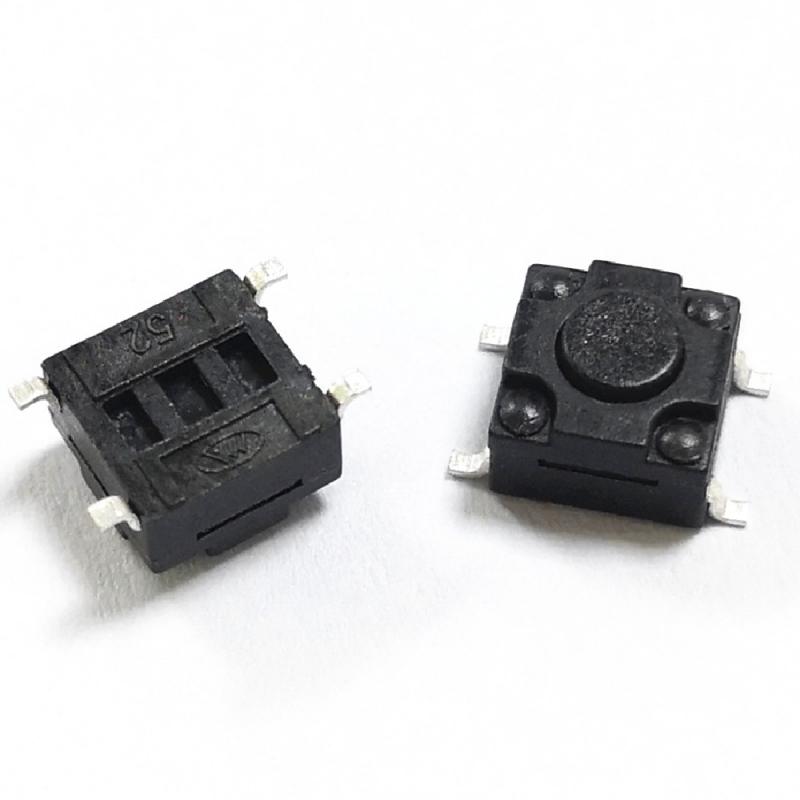

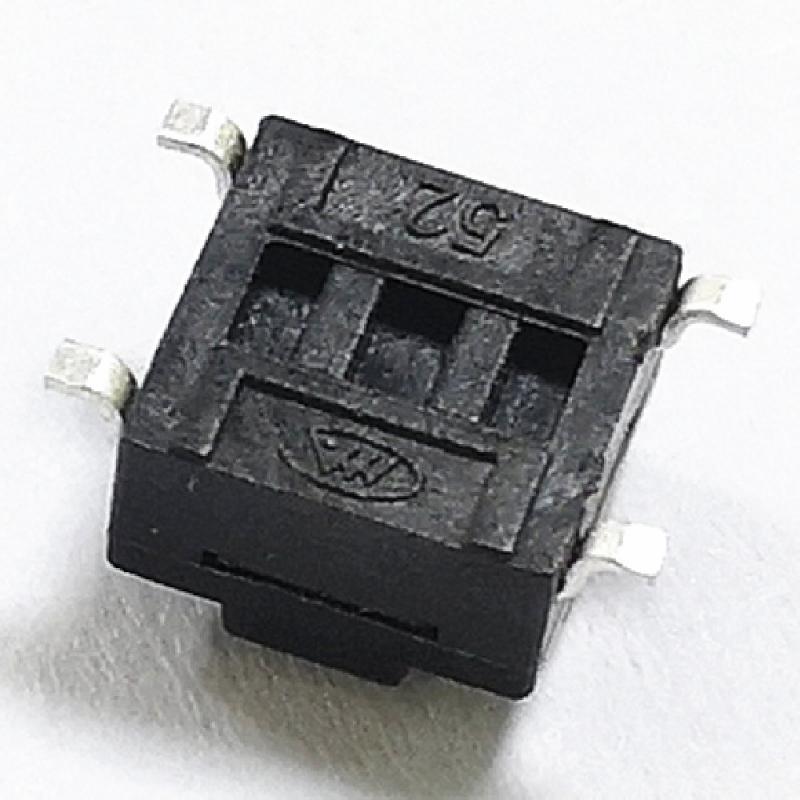

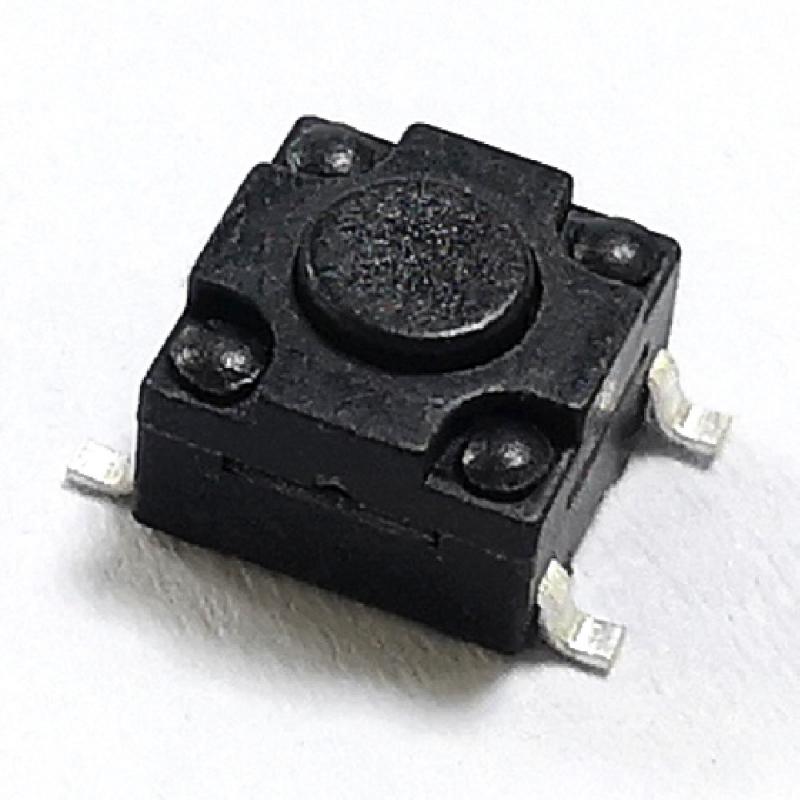

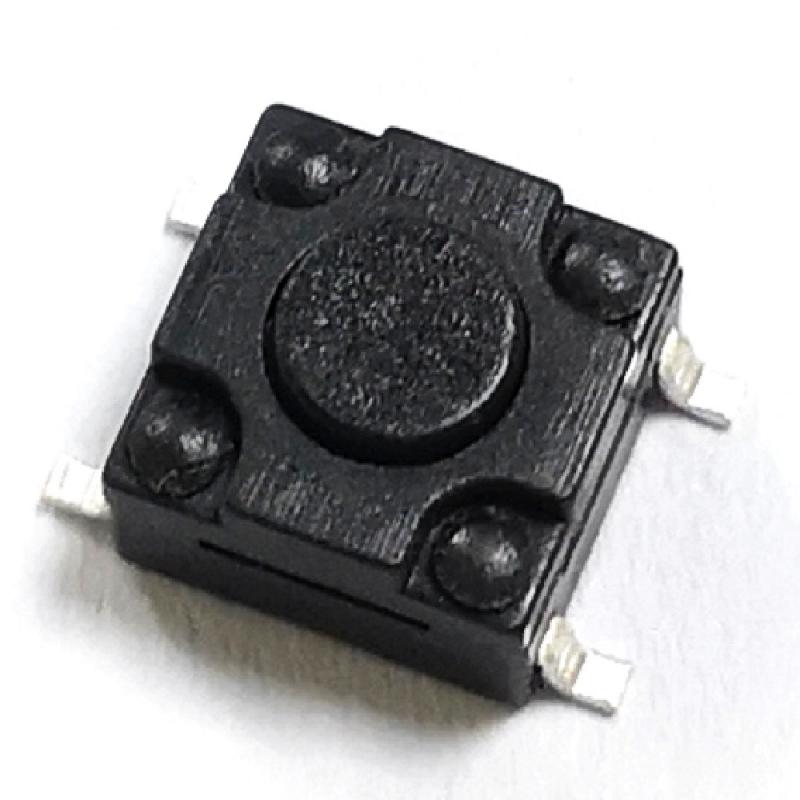

micro IP67 smd tactile switch

momentary SPST-NO gull wing tactile switch with waterproof

 Product Attributes

Max. Voltage: DC12V

Max. Current: 50mA

Contact Resistance: ≤50mΩ

Height: 4.3mm

Return Force: 50gf Min

Full Travel: 0.30+0.1/-0.15mm

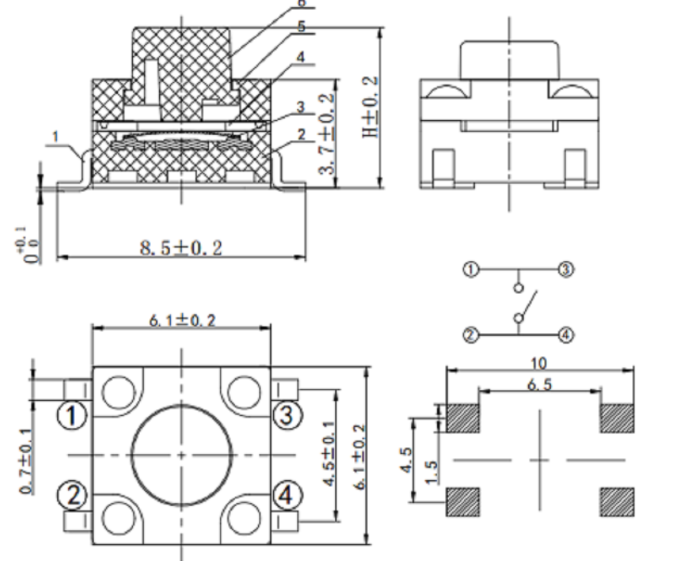

 Drawing

 Structure of waterproof tact switch

The waterproof tact switch is a functional electronic switch. When in use, the switch can be turned on by simply pressing the switch button. The internal structure of the switch is realized by the force of the metal shrapnel. Due to the small contact resistance, the obvious degree of crisp feel when pressed, and the complete height specifications, the application and packaging specifications of waterproof tact switches are diversified, especially in household. appliances.

 Notes

• The pad size of the printed substrate is shown in the product diagram.
• In the case of using soldering iron, soldering conditions shall be 350℃ max and 3 sec.max.
• Prevent flux penetration from the top of the switch.
• After switches were soldered,please be careful not to clean switches with solvent or other similar products.

• Right after switches were soldered;please be careful not to load to on the knobs of switches.

• Please be cautions not to give excessive static load or shock to switches.
• Please be careful not to pile up P.W.B.after switches were soldered
