Home Switch Tactile switch 06 Series tact switch Bracket type tactile tact switch

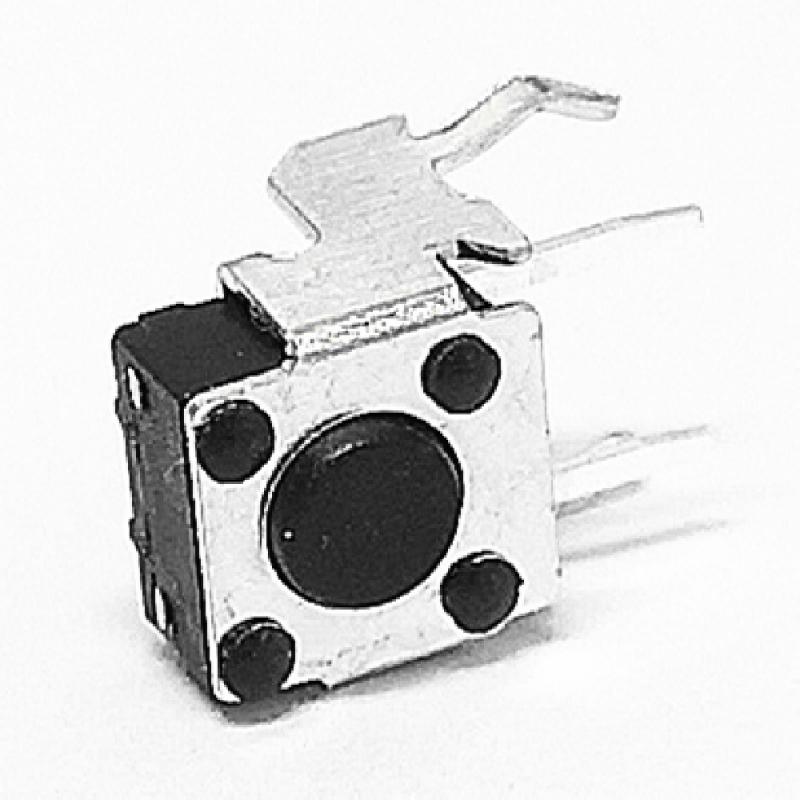

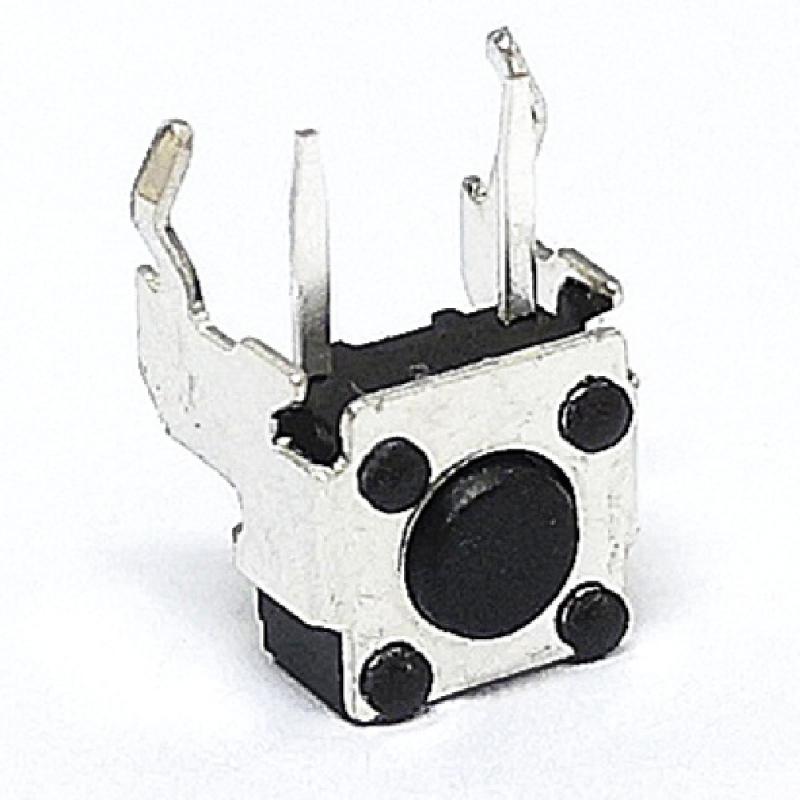

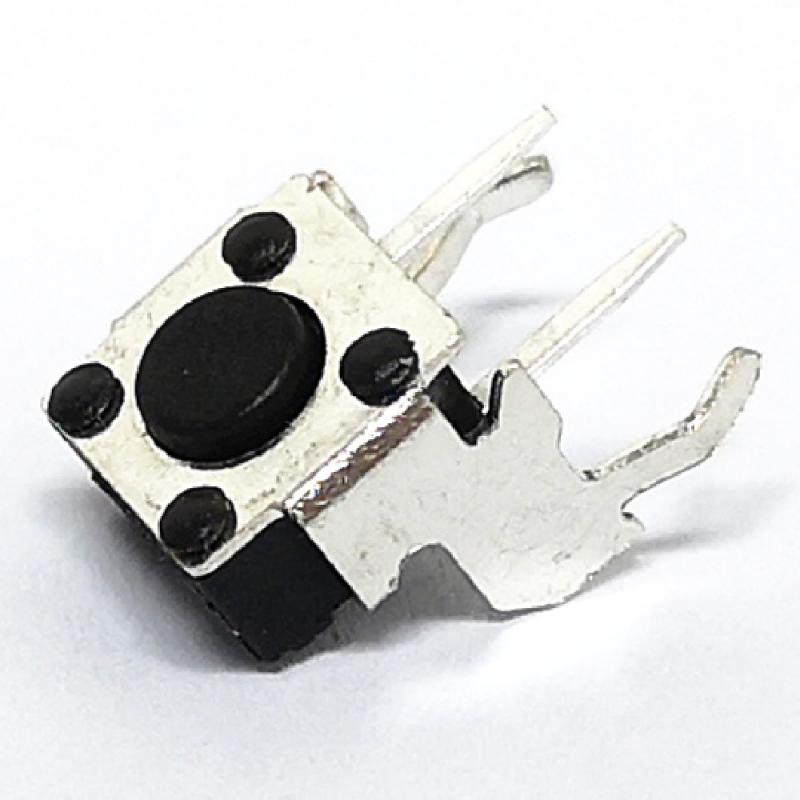

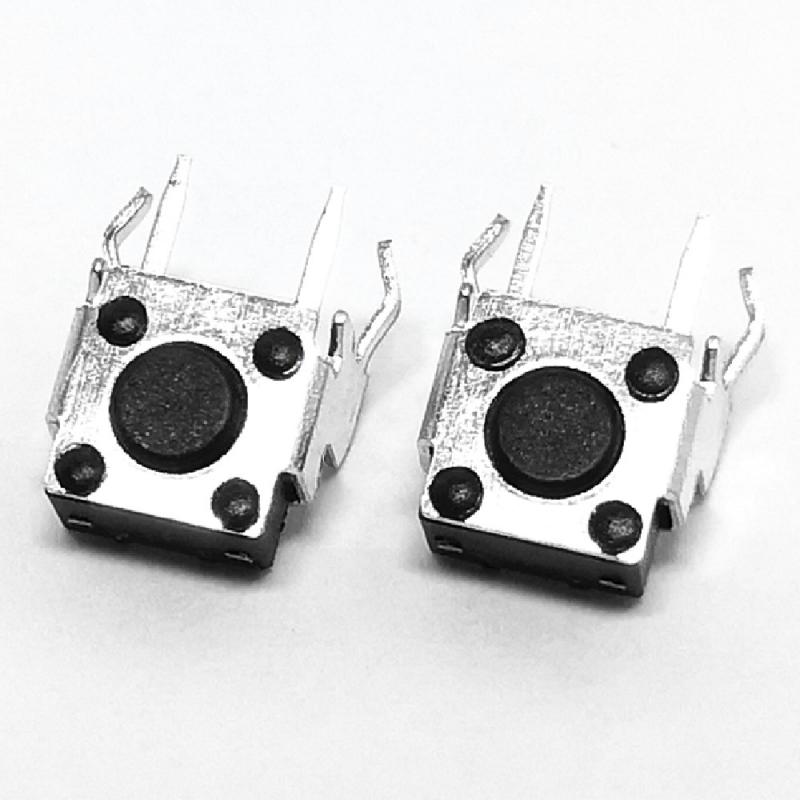

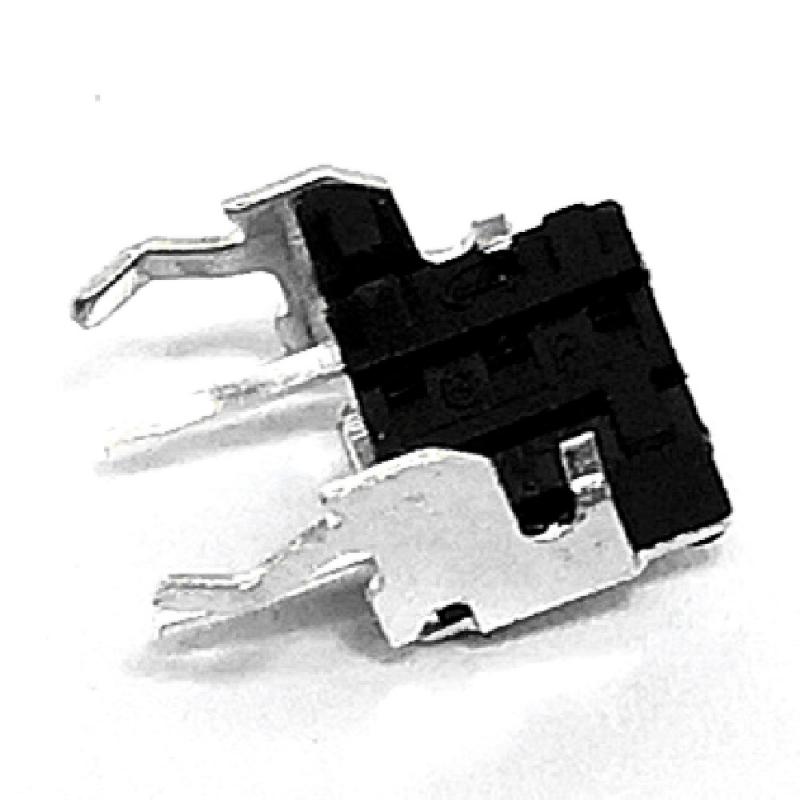

Bracket type tactile tact switch

Product advantages: design flexibility, rich operating reality, excellent environmental resistance, and long life.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0631N-0431B010-42
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black and Silver
  • Shipping Port:

    WenZhou/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

Momentary action SPST push button tact switch

6*6*4.3mm 50mA soft touch tact switch


Specification


Ratings: DC 12V  50mA(Max)    DC 1V  10μA(Min)

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Operating Force: 160±50 gf

Full Travel: 0.25±0.1mm

Return Force: 20gf Min

Stem Strength: 20N min.

Operation life: 100,000 cycles

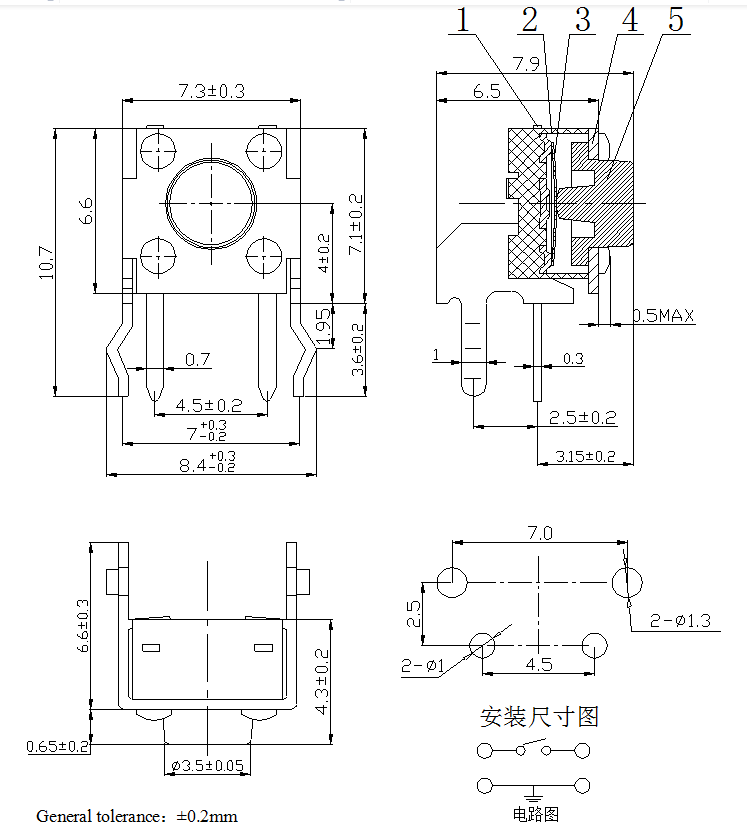

Drawing



Application range and appearance style of with bracket tact switch


Applications: mobile phones, earphones, tablets, medical equipment, bluetooth speakers, bluetooth earphones, remote controls, smart watches, smart homes, digital products and other electronic products.

Appearance style: round hole bracket, upper bracket, lower bracket, bracket with column, waterproof bracket, dustproof bracket, double bracket, two in one bracket, single bracket. The with bracket type is usually right angle tact switch.


Packing specifications


1. Each bag contains 1000 pieces, each bag contains a pack of desiccant, and the seal should be tight.


2. Each inner box contains 1 bag, a total of 1000 pieces


3. Each outer box contains 20 boxes, a total of 20000 only.
