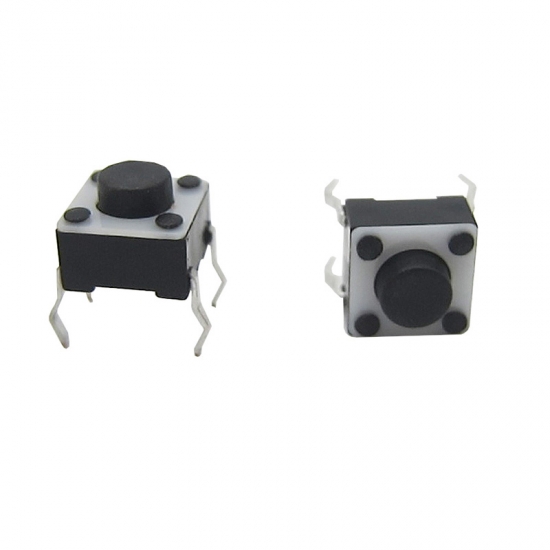

Gangyuan Mini 4 pin plastic cover DIP Tact Switch KAN0611

KAN0611: Mini 4 pins, 6*6mm, dip tact switch.

Brand:
Gangyuan
Item NO.:
KAN0611
Order(MOQ):
1000
Payment:
T/T before shipment
Product Origin:
ZheJiang China
Color:
Black
Shipping Port:
Ningbo, Shenzhen
Lead Time：
5-7 working days depends on actual quan

Product Detail

Gangyuan Mini 4 pin plastic cover DIP Tact Switch KAN0611

Basic Information

Temperature	-20℃to+70℃
Rating	50mA.12V DC
Insulation resistance	100mΩ min.100V DC
Dielectric strength	250V AC for 1 min
Contact resistance	100mΩ max
Travel	0.25±0.1mm
Height	4.3/4.5/5.5/6.5/7/7.5/8/8.5/9/9.5/10/10.5/11/ 11.5/12/12.5/13/13.5/14/14.5/15/15.5/16/16.5/17/18/19/20/21mm
Operating Force	100gf/160gf/260gf

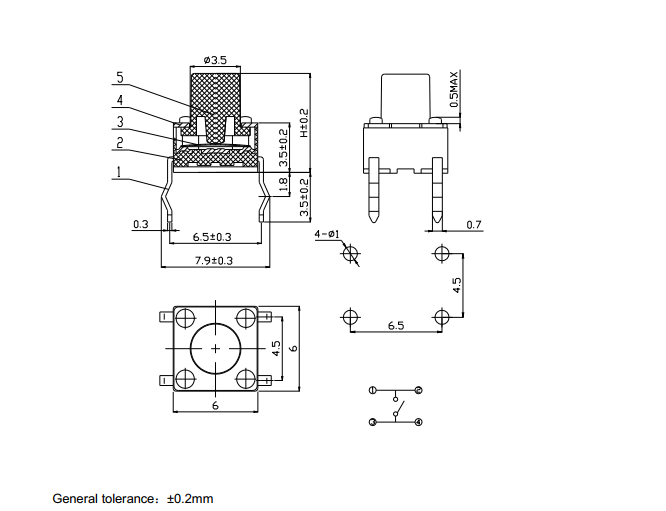

Dimension

Tact Switch Using Attention

1. Please be cautions not to give excessive static load or shock to switches.
2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.

Our Factory View
1. Gangyuan Electronics was founded in 1994, decades tact switch manufacturing experience.
2. Strong R&D group for related switches, sockets, transformers, relays series.
3. Headquartered in Zhejiang Province, China. with 3 plants over area of 5000 square meters and 100k grade clean process line.
4. The soonest respond to clients question. Sales offices with our top sales located in HK,Taiwan, Brasil, South Korea, Singapore.

Application

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
