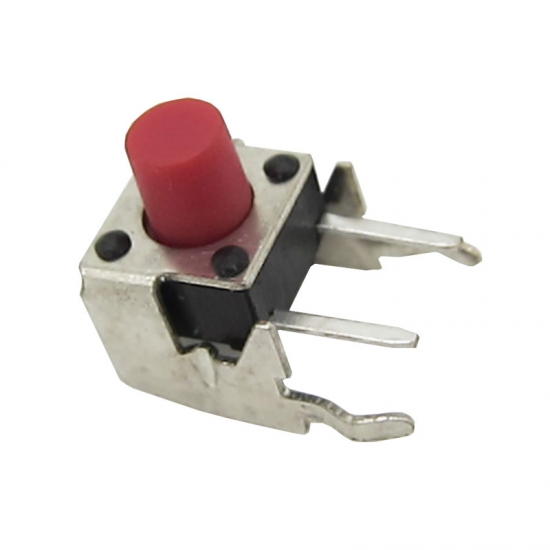

Gangyuan 2 pin red stem Side horizontal Tact Switch KAN0631

KAN0631: 2 pins, side horizontal with red stem tact switch.

Brand:
Gangyuan
Item No.:
KAN0631
Payment:
T/T before shipment
Product Origin:
ZheJiang China
Color:
red stem
Shipping Port:
Ningbo, Shenzhen
Min Order:
1000
Lead Time:
5-7 working days depends on actual quan

Product Details

Gangyuan 2 pin red stem Side horizontal Tact Switch KAN0631

Basic Information

P/N	KAN0631
Rating	DC 12v, 50mA
Size	7.4*6mm
Height	4.3-18mm
Operating force	100gf/ 160gf/ 260gf ±50
Life	60,000/80,000/100,000 cycles

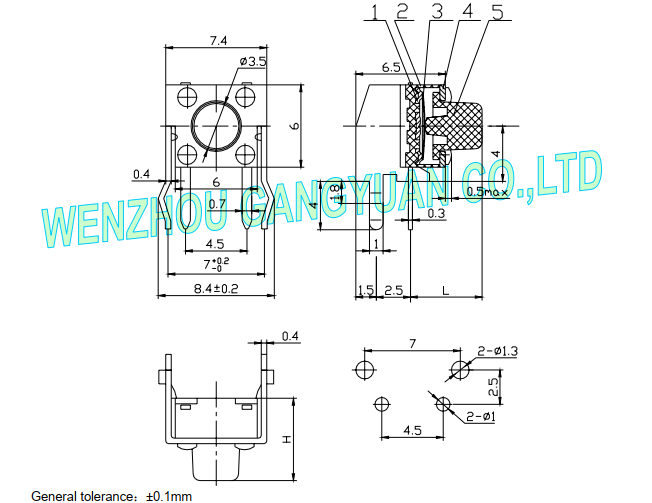

Dimension

Tact Switch Using Attention

1. Please be cautions not to give excessive static load or shock to switches.
2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.

Our Factory View

1. Gangyuan Electronics was founded in 1994, decades tact switch manufacturing experience.
2. Strong R&D group for related switches, sockets, transformers, relays series.
3. Headquartered in Zhejiang Province, China. with 3 plants over area of 5000 square meters and 100k grade clean process line.
4. The soonest respond to clients question. Sales offices with our top sales located in HK,Taiwan, Brasil, South Korea, Singapore.

Application

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
