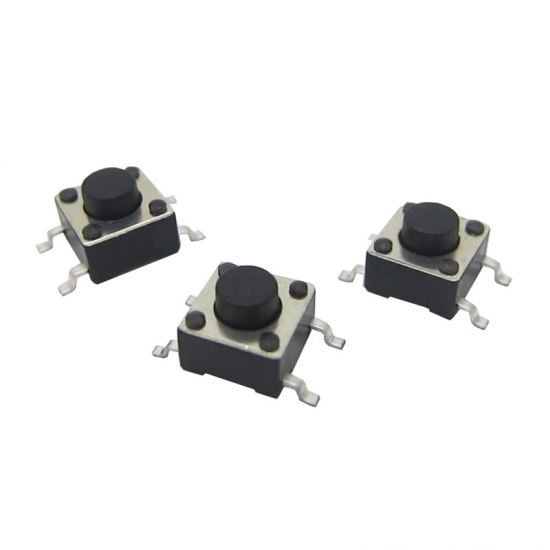

KAN0641-0501B: 6*6*5mm, SMD type, 4 pins tact switch.
Brand:
GangyuanItem NO.:
KAN0641-0501Order(MOQ):
1000Payment:
T/T before shipmentProduct Origin:
ZheJiang ChinaColor:
BlackShipping Port:
Ningbo, ShenzhenLead Time：
5-7working days depends on actual quanGangyuan high quality SMD Momentary Tactile Switch KAN0641
Basic Information
Temperature
-20℃to+70℃
Rating
50mA.12V DC
Insulation resistance
100mΩ min.100V DC
Dielectric strength
250V AC for 1 min
Contact resistance
100mΩ max
Travel
0.25±0.1mm
Height
3.15mm-19.85mm
Operating Force
100gf/160gf/260gf

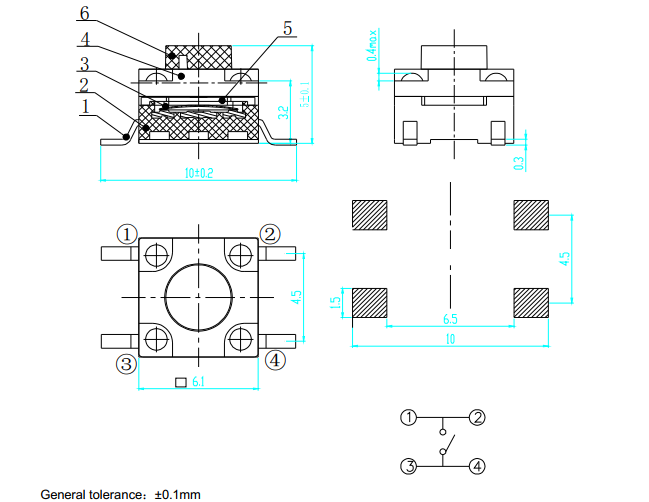

Dimension
Tact Switch Using Attention
2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
