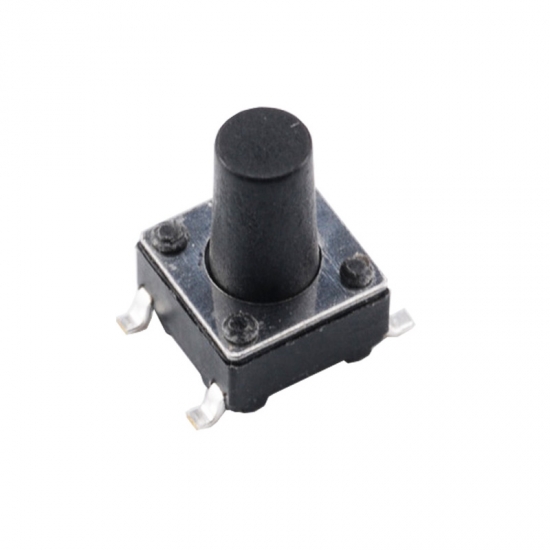

Gangyuan 4 pin mini SMD Tact Switch KAN0641

KAN06412: DC 12v 50mA, SMD 4 Pins tact switch.



  • Brand:

    Gangyuan
  • Item No.:

    KAN0641
  • Payment:

    T/T before shipment
  • Product Origin:

    ZheJiang China
  • Color:

    Black
  • Shipping Port:

    Ningbo, Shenzhen
  • Min Order:

    1000
  • Lead Time:

    5-7 working days depends on actual quan
Product Details

Gangyuan 6X6 4 pin SMD Tact Switch KAN06412



Basic Information

                  P/N                     KAN0641
Rating DC 12v 50mA
Size 6*6*H
Height 4.3/ 5/ 6/7 / 7.3/ 8/9 /9.5
Operating force 100gf, 160gf or 260gf±50
Life 60,000/ 80,000/100,000 cycles

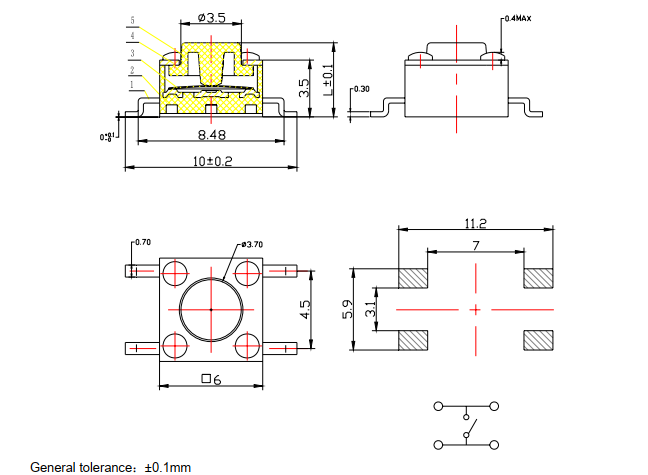

Dimension






Tact Switch Using Attention

1. Please be cautions not to give excessive static load or shock to switches.

2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.



Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.


Application


Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
