DC 12V 50mA Micro 2 Pin Dip Tactile Switch

KAN0652: DC 12v 50mA, 2 Pins, Dip Micro Tactile Switch.

  • Brand:

    Gangyuan
  • Item No.:

    KAN0652
  • Payment:

    T/T, Paypal full payment before produce
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Ningbo/ Shenzhen
  • Min Order:

    1000
  • Lead Time:

    5-7 working days
Product Details

DC 12V 50mA Micro 2 Pin Dip Tactile Switch


Basic Information

P/N
KAN0652
Dimension
6×6×H/H=4.3mm/5mm
Rating current
12VDC 50mA
Operating force 100gf, 160gf, 260gf(at customers request)
Life cycles
100,000/ 200,000/ 500,000 cycles
Travel
0.25±0.1mm

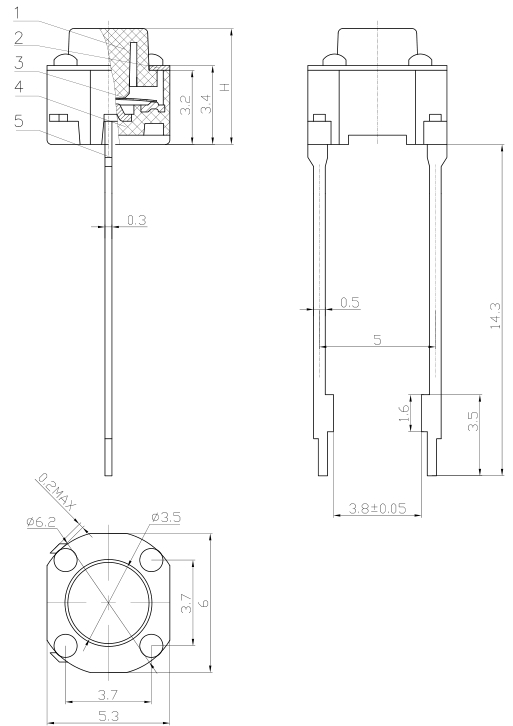

Dimension


Tact Switch Using Attention

1.Please consult us when considering to wash tact switches
2.Please don’t immerse soldering flux into tact switches
3.Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4.The second welding should be done after switches return to normal temperature



Our Factory View

1. Gangyuan Electronics was founded in 1994, decades tact switch manufacturing experience.
2. Strong R&D group for related switches, sockets, transformers, relays series.
3. Headquartered in Zhejiang Province, China. with 3 plants over area of 5000 square meters and 100k grade clean process line.
4. The soonest respond to clients question. Sales offices with our top sales located in HK,Taiwan, Brasil, South Korea, Singapore.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
