6 pin dip switch rotary

DIP switches are a special design of slide switches. They are applied, among other things, on printed circuit boards or main boards and are used to configure certain basic settings. The abbreviation stands for “dual in-line package”, which gives a direct indication of the design of the switch.

  • Brand:

    Gangyuan
  • Item NO.:

    BMIC16H
  • Order(MOQ):

    1000
  • Payment:

    T/T, Paypal full payment before produce
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Blue
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

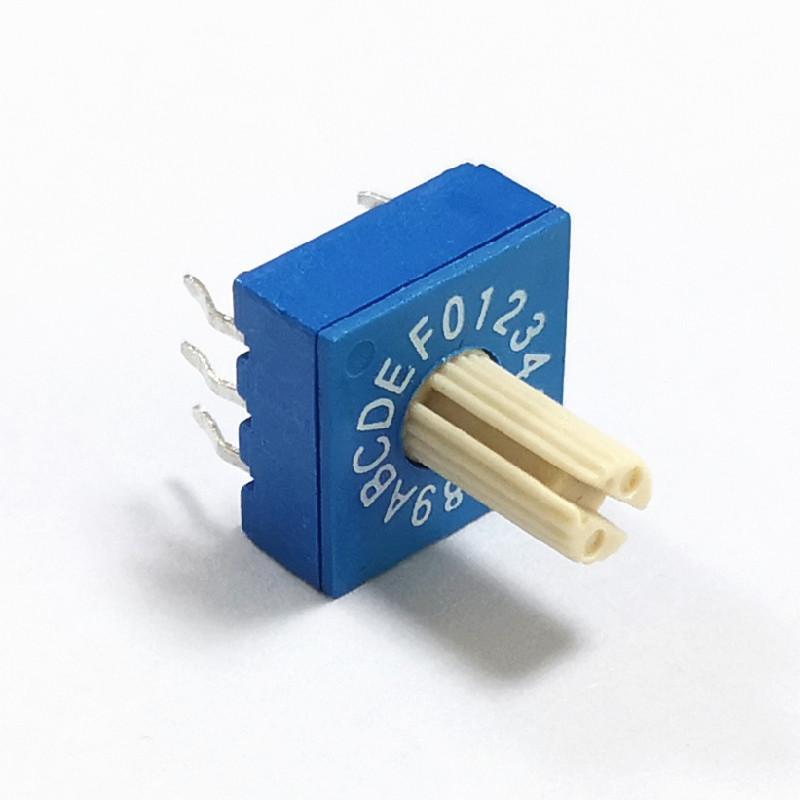

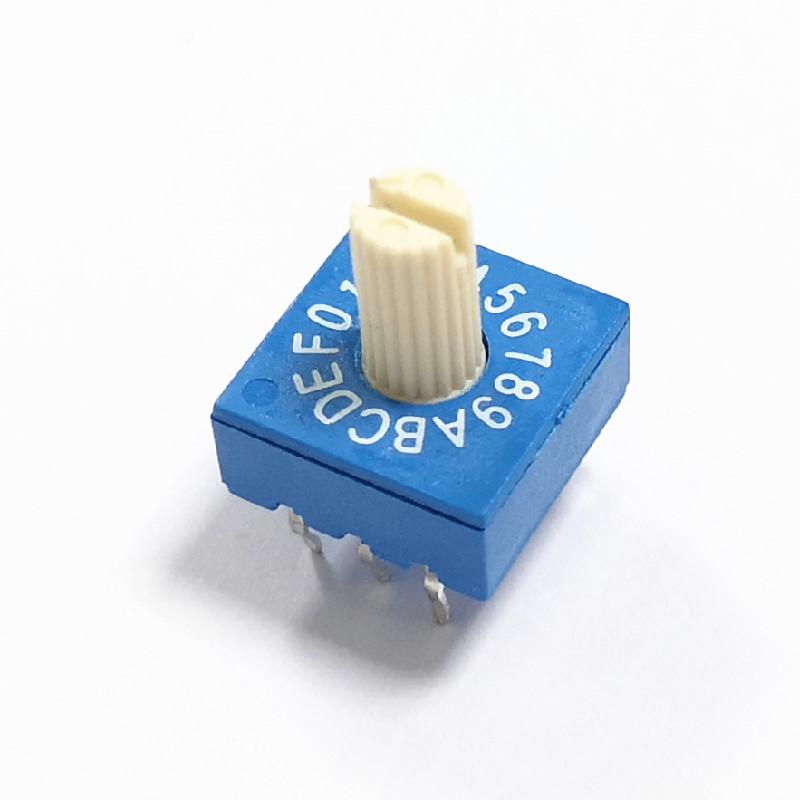

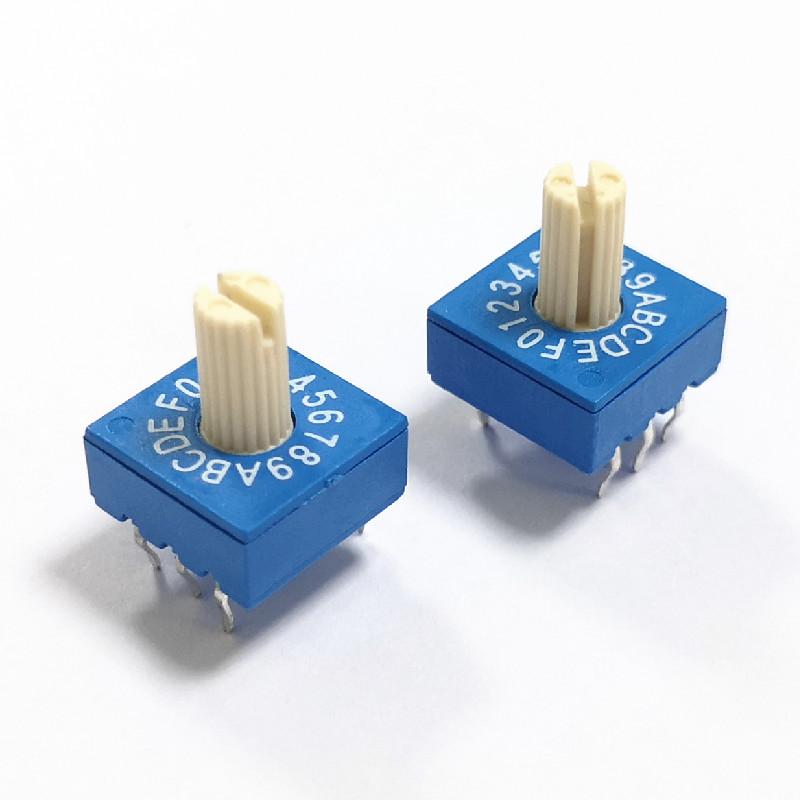

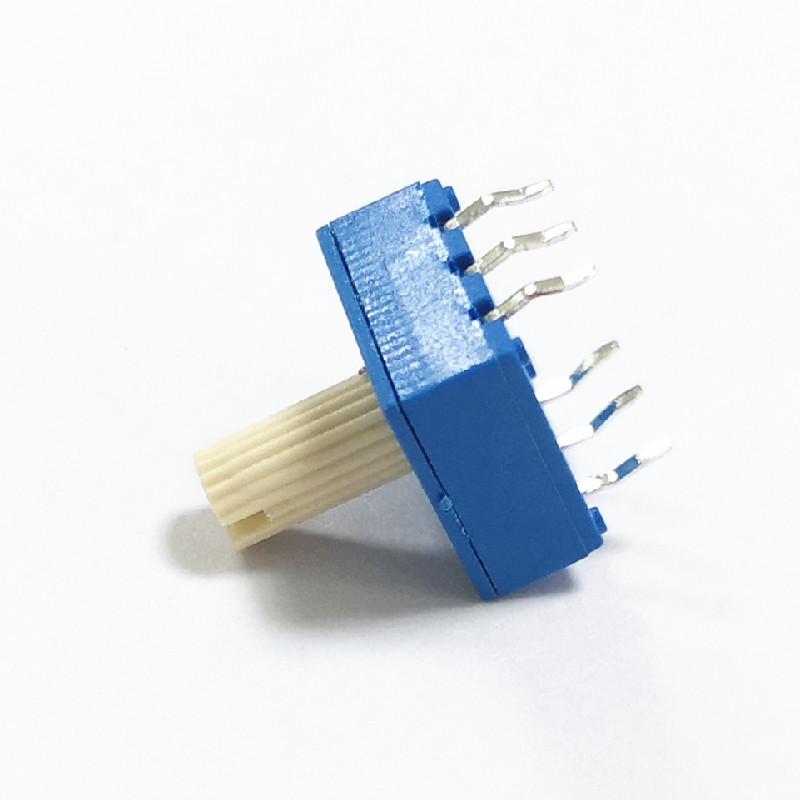

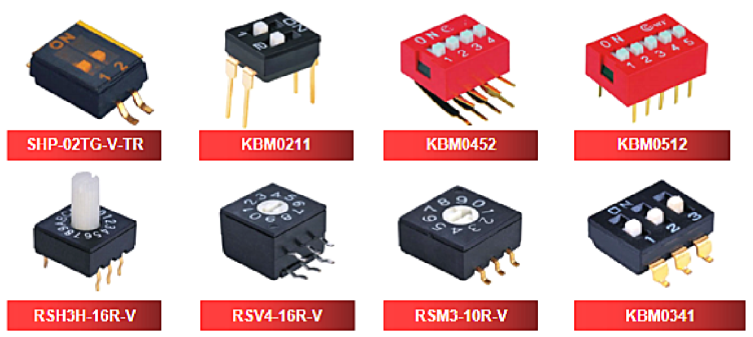

10*10mm through hole 16 Rotary code dip switch

Rotor height choose: 7mm/3mm/Fat

Position choose: 8 position/10 position/16 position


 Dip switch datasheet

Contact Rating
Switching : 5VDC 20mA (Min. AC/DC 20mA 1µA)

Non Switching: Max. 50VDC 100mA

Contact Resistance : 100mΩ Max

Insulation Resistance : 1,000MΩ Min. at 100VDC

Operating Force: 750gf/cm (Standard) , 400gf/cm Max. (N type)

Life: 20,000 Steps

Body color choose: Black / Blue

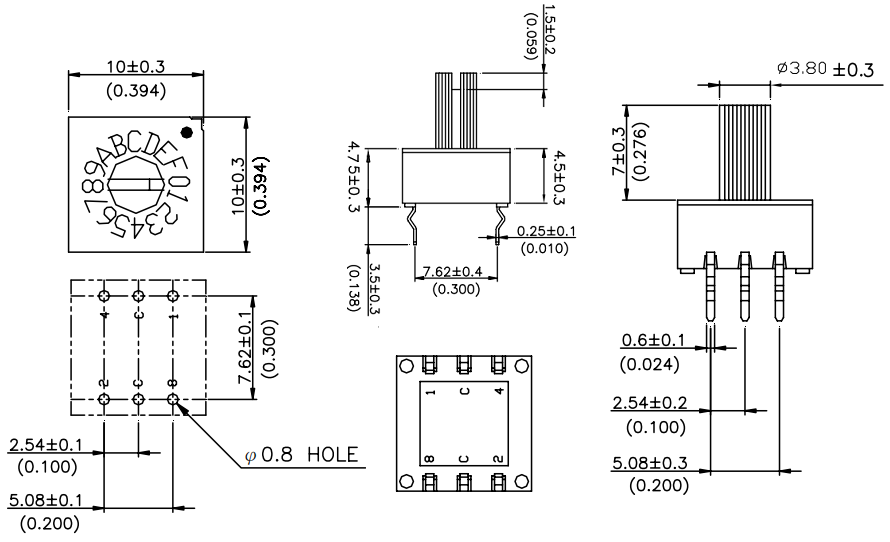

 Dip switch datasheet diagram

 Application

  • handheld electronic devices and portable computers
  • instrumentation and controls
  • address switching for industrial controls
  • computers and peripherals (logic switching, data storage devices)
  • automation components (such as timers)
  • function controlling in numerous applications
  • security functions (alarms, access controls, smoke detectors)
 Why are they called DIP switches ?


In electronics, the acronym DIP when applied to switch types stands for 'dual in-line package'.

A dual in-line package switch, or DIP switch, is actually set of small manual electronic switches that are designed to be packaged with other circuits.
