A DIP switch is a set of electrical switches packaged in a small box or housing. They are designed to be mounted on printed circuit boards to provide a range of electrical inputs to an electronic device based on the position of the individual switches. ... DIP switches are an alternative to jumper blocks.
Brand:
GangyuanItem NO.:
BMIC10SOrder(MOQ):
1000Payment:
T/T, Paypal full payment before produceProduct Origin:
Zhejiang, China (Mainland)Color:
BlueShipping Port:
Ningbo/ShenzhenLead Time：

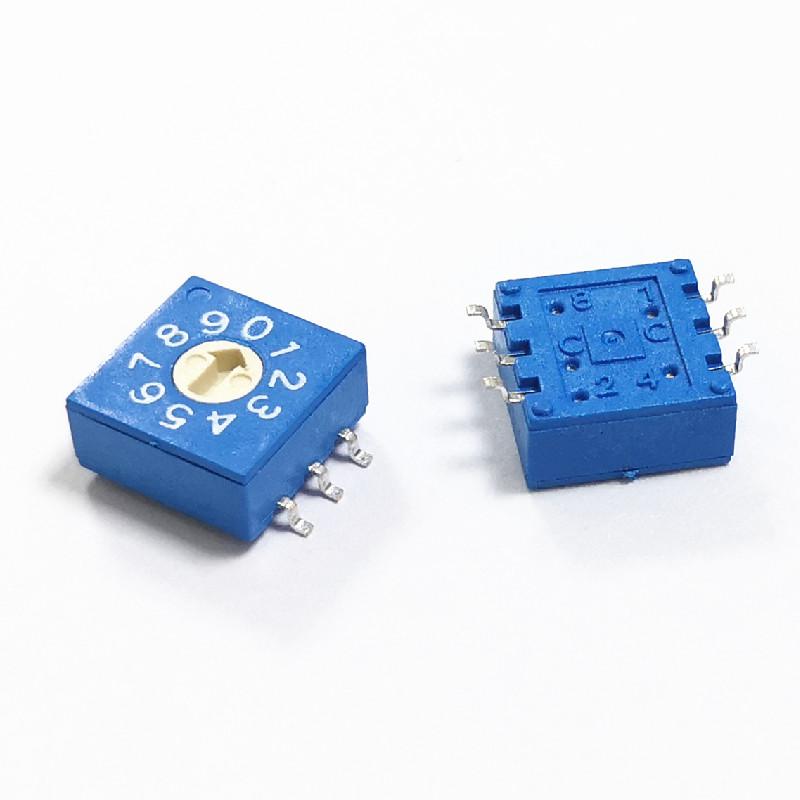

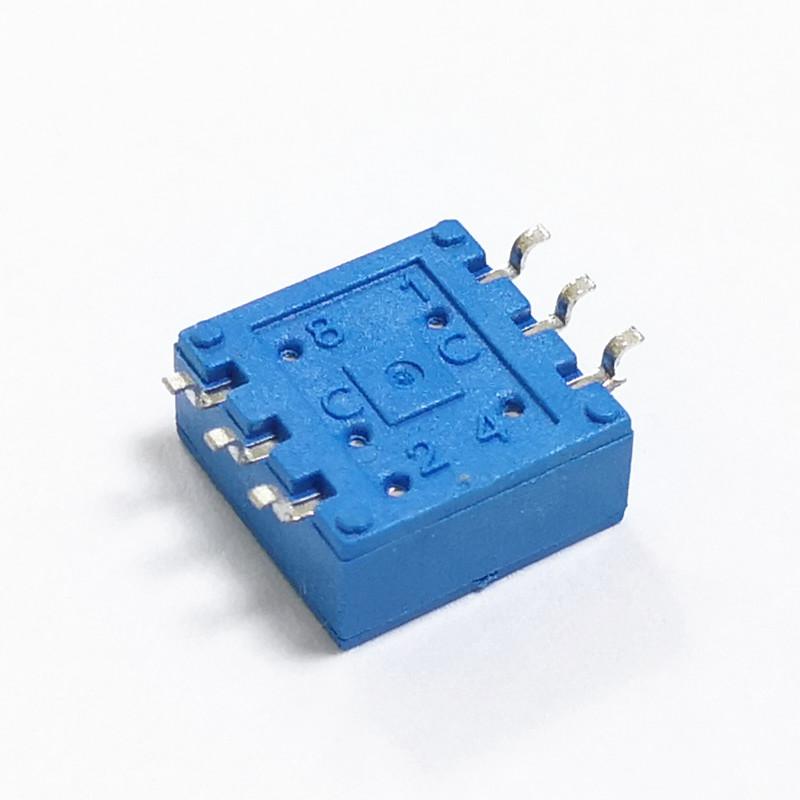

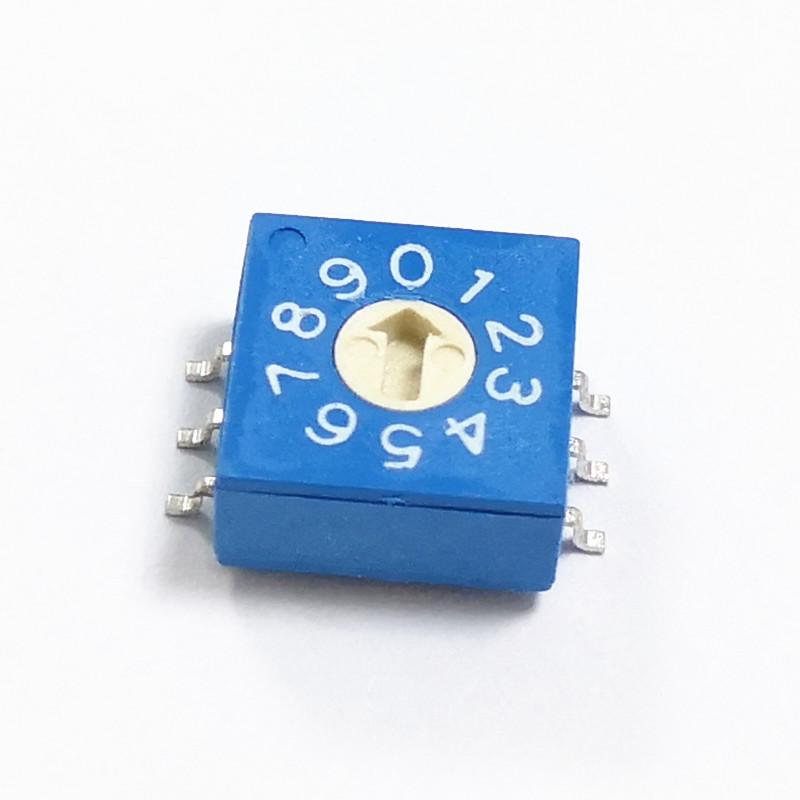

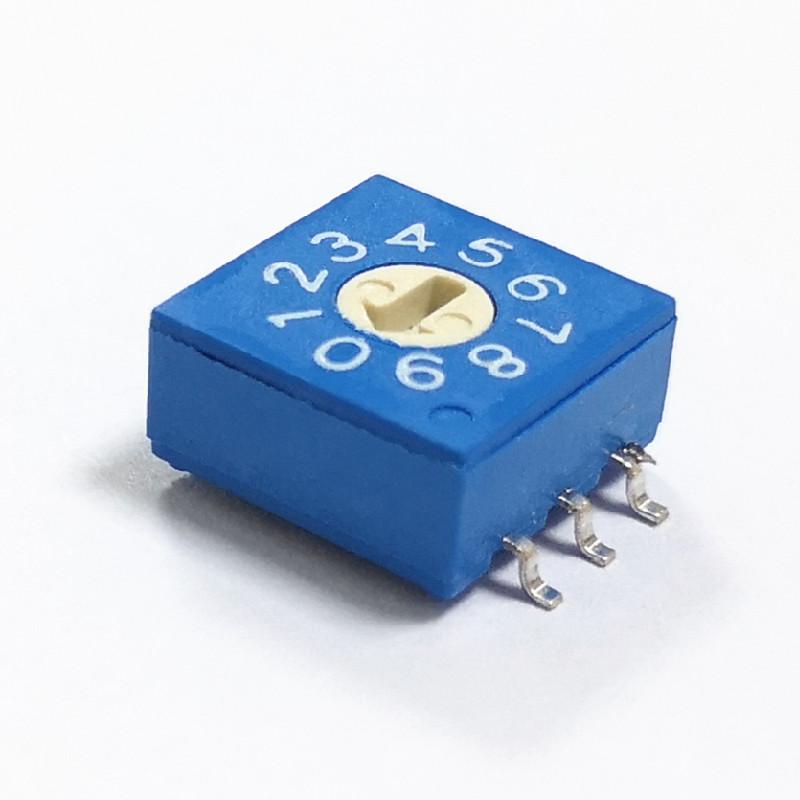

7-14 working days for paymentSMD type flat rotor 10 ways 2.54mm dip switch
Terminal type: Thru hole/SMD/Right angle 2.54mm/Right angle 5.08mm
Rotor choose: Flat/3mm/7mm
Dip switch datasheet
Type: 10*10 digital dip switch
Contact Rating
Non Switching: Max. 50VDC 100mA
Contact Resistance : 100mΩ Max
Insulation Resistance : 1,000MΩ Min. at 100VDC
Operating Force: 750gf/cm (Standard) , 400gf/cm Max. (N type)
Life: 20,000 Steps
Body color choose: Black / Blue

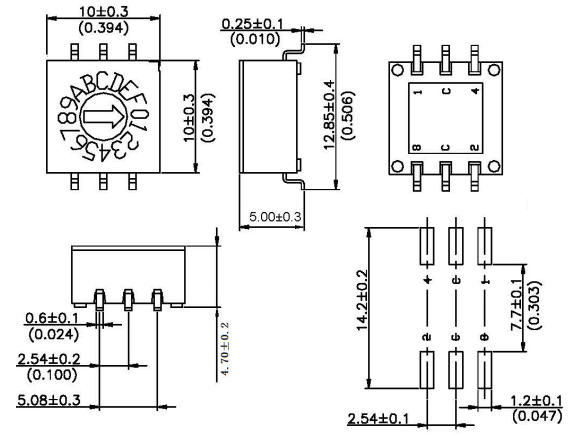

Dip switch datasheet diagram
How does a rotary DIP switch work ?
Rotary DIP switches contain multiple electrical contacts, one of which is selected by rotating the switch to align it with a number printed on the package.
Some have a knob that can be turned by fingers, or a small slot that require a screwdriver to change them.
Rotor Type
