Home |Switch |Tactile switch |06 Series tact switch |4 pin smd smt micro tact switch push button switch waterproof

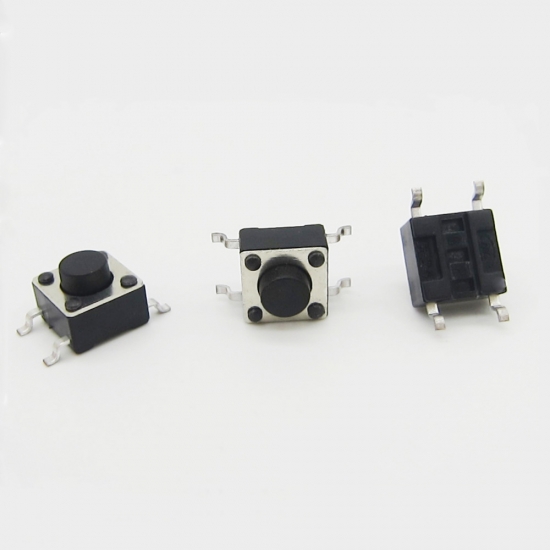

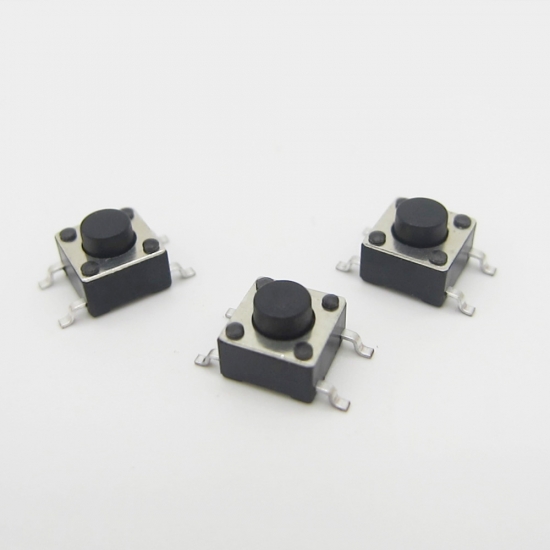

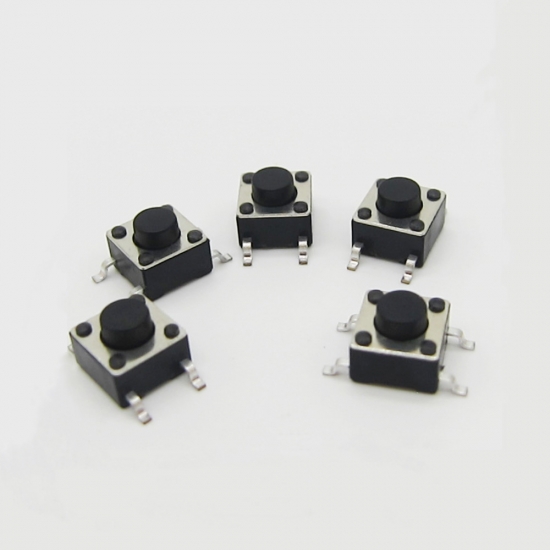

4 pin smd smt micro tact switch push button switch waterproof

4 pin smd smt micro tact switch push button switch

waterproof micro tact switch

  • Brand:

    Gangyuan
  • Item No.:

    KAN0641
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    10pcs
  • Lead Time:

    3 working days for payment
Product Details


4 pin smd smt micro tact switch push button switch waterproof


Basic Information

Model Name:

waterproof smd tact switch

Model No.:

KAN0641

Dimension:

6x6xH (4.3-10)MM

Operating force:

100gf/160gf/260gf

Life cycles:

wide options

Return force: 0.2N/0.4N/0.6N min

Function

smt micro tact switch

Rating:

50mA 12V DC

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.25±0.1mm

Dimension

6x6 tactile switch.jpg6mm tact switch.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

We also offer as part of our commitment to you the following services:
1. Flexibility with minimum order requirements.
2. Scheduled deliveries.
3. Consolidated shipments either by air or sea.
4. Full product datasheets.
5. Technical support.
6. Simple ordering procedure: Email, fax or mail.
7. Competitive shipping rates



Application

waterproof tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
