Home Switch Micro switch G10 Series waterproof micro switch

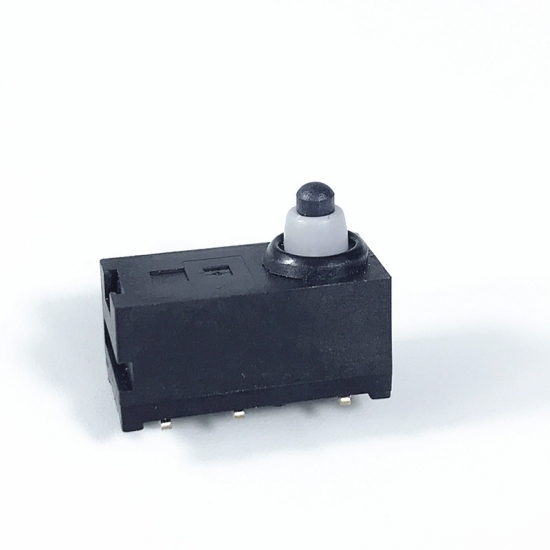

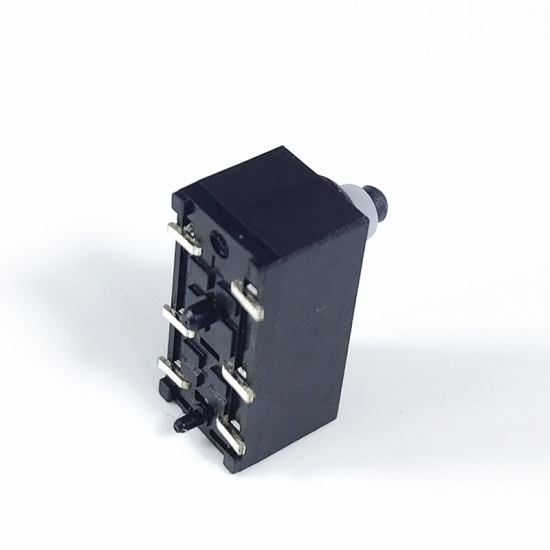

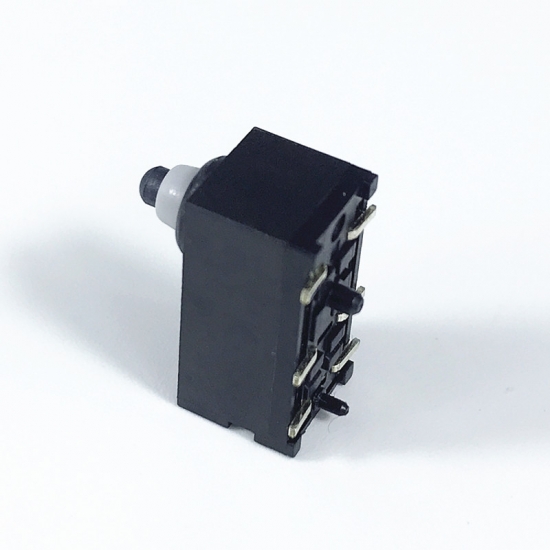

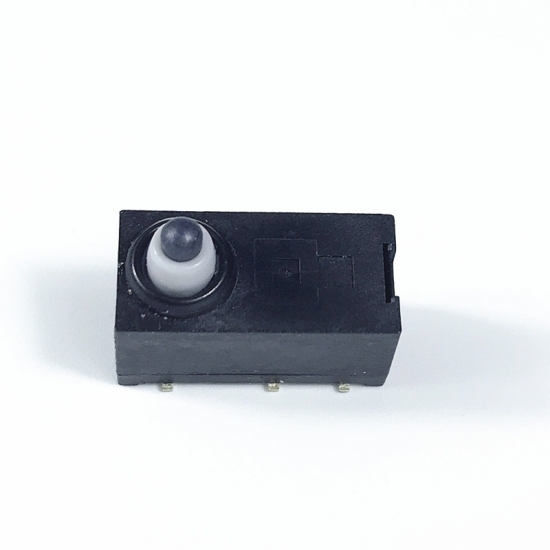

waterproof micro switch

This micro switch has high reliability, mainly the life span can reach 100,000 times. Waterproof and dustproof can reach IP67 standard. The momentary function switching of the switch can be completed within 20ms. Achieve better operations.

  • Brand:

    Gangyuan
  • Item NO.:

    MS15A-A
  • Order(MOQ):

    100pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    14 working days for payment
  • Product Detail

micro switch t125 5e4 micro switch mechanical waterproof micro switch


 Basic Information



Type Waterproof Micro Switch
Rating 18VDC, 50mA (Max)   5VDC, 0.05mA(Min)
Contact resistance ≤75mΩ
Insulation resistance ≥100MΩ
Operating force 100gf±50gf
Life 200000 cycles
Waterproof level IP67
Return force 30gf Min

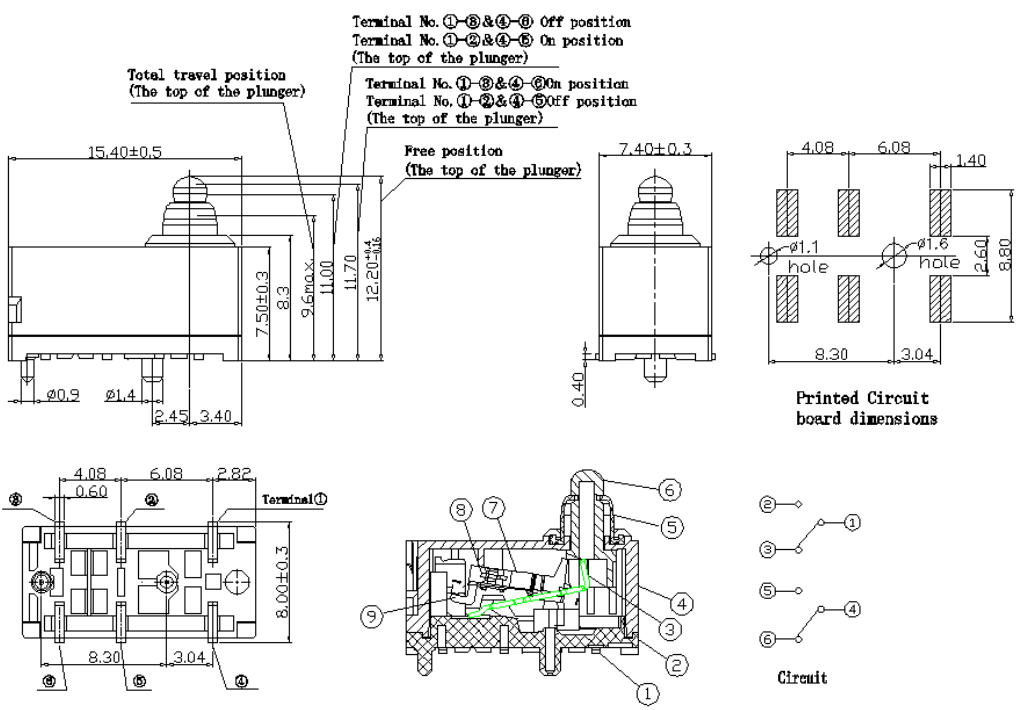

 Dimension


 Product features


1. Type: Auto Micro switch

2. Waterproof: iP67

3. Lever Type: With lever

4. Electrical Rating: 18VDC, 50mA (Max)   5VDC, 0.05mA(Min)


 Our advantage


1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

    More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.



 Application


Micro switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

  FAQ


1. Q: Are you manufacture/ factory? Location?

    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
