Home Switch Micro switch G10 Series miniature micro switch

miniature micro switch

micro switch kw2 miniature micro switch 25t125 5a 250v 3 pin micro switches

  • Brand:

    Gangyuan
  • Item NO.:

    JK945-11000
  • Order(MOQ):

    100pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 working days for payment
  • Product Detail

 micro switch kw2 miniature micro switch 25t125 5a 250v 3 pin micro switches


 Basic Information


Product name Auto Micro Switch
Rating AC125V 1A
Contact resistance 100mΩ
Operating force 450±50gf
Life ≥30000 Cycles
Switch position ( OP ) 9.6±0.3
Over travel ( OT ) 0.3 Min

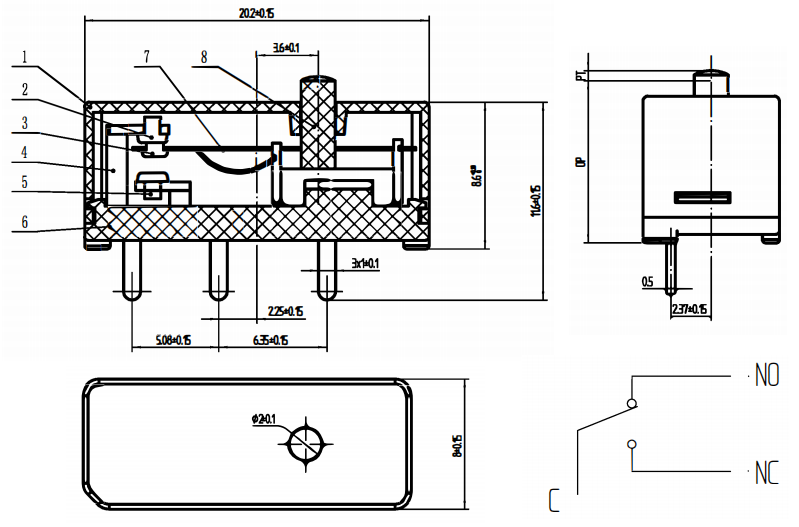

 Dimension



 Product features


1. Type: Automotive Micro switch

2. Circuit Code: SPDT

3. Lever Type: No lever

4. Electrical Rating: AC 125V 1A


 Our advantage


1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

    More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.



 Application


Micro switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

  FAQ


1. Q: Are you manufacture/ factory? Location?

    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
