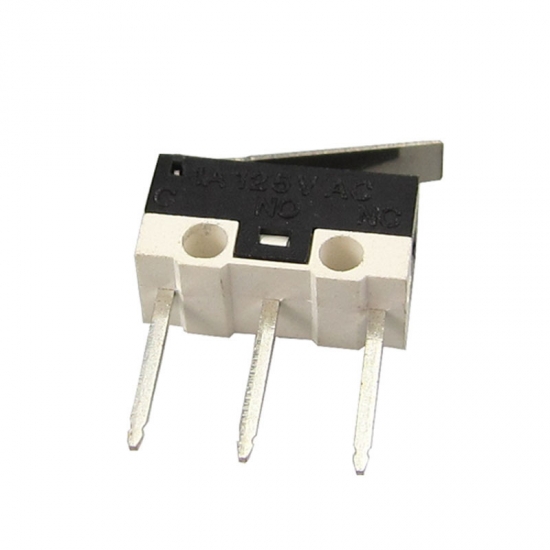

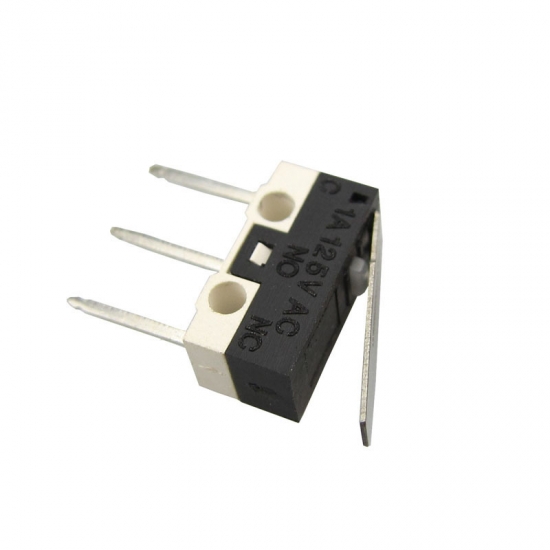

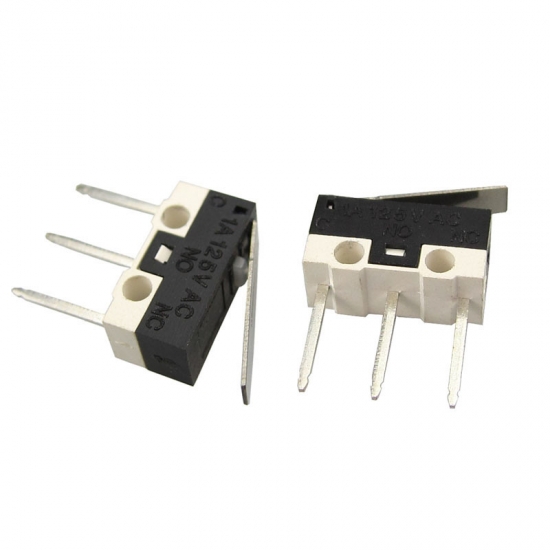

Home Switch Micro switch G10 Series 12.8mm*5.8mm long terminal connect UL Micro switch keyboard tactile switch

12.8mm*5.8mm long terminal connect UL Micro switch keyboard tactile switch

12.8mm*5.8mm long terminal connect Micro switch micro switch.

  • Brand:

    Gangyuan
  • Item NO.:

    DMI-02PWL8.5--3
  • Order(MOQ):

    1000
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3-5 Working Days after payment
  • Product Detail

12.8mm*5.8mm long terminal connect UL Micro switch keyboard tactile switch


Feature


Product model: DMI-02PWL8.5--3

Specification: 12.8mm*5.8mm

Operating force: 80±15gf -180±15gf

Features: long terminal 8.5mm connect




Basic Information

Product Name: Micro Switch

Micro switch technical parameters:

Rated load: AC 125V 1A

Contact resistance: ≤100mΩ

Insulation resistance: AC 500V 1Minute

Operating temperature: -25°C+85°C

Operating force: 80±15gf

Mechanical life: 500,000 Cycles



Application


12.8mm*5.8mm long terminal connect Micro switch micro tactile switch,operation force 80±15gf -180±15gf, life time 500,000 times, can be widely used in computer mouse, security products, doorbells, automotive electronics, communication equipment, military products, test equipment, gas water heaters, gas water heaters, gas stoves, small appliances, microwave ovens, rice cookers, float equipment , medical equipment, building automation, power tools and general electrical and radio equipment.
