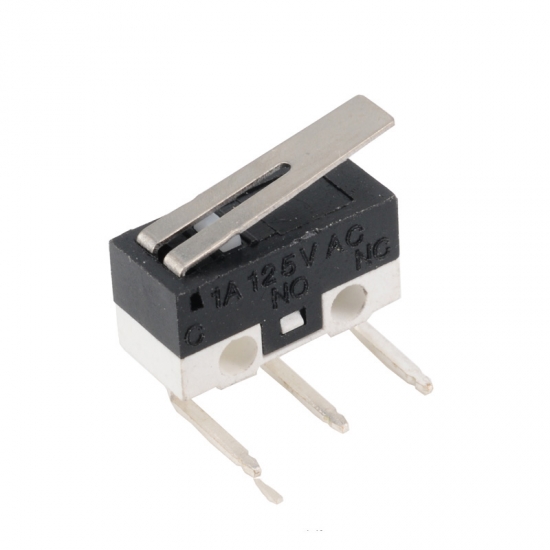

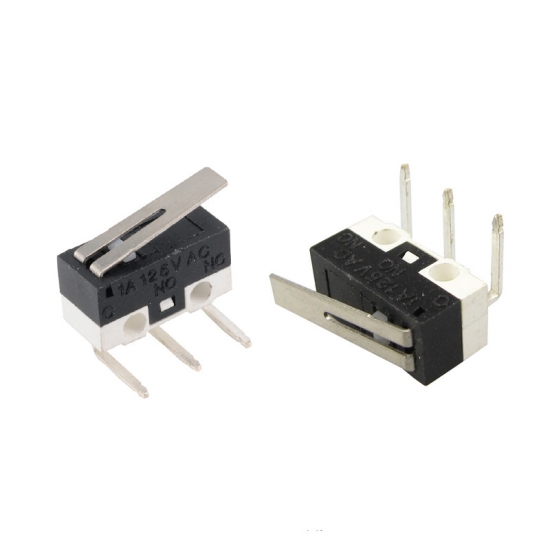

3 Pin Roller Hinge Lever Push Button Micro Switch

DM1-02CWL-30-3: 3 Pin Long Roller Action Micro Switch.

  • Brand:

    Gangyuan
  • Item No.:

    DM1-02CWL-30-3
  • Payment:

    T/T, Paypal before shipping
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen or Ningbo port
  • Min Order:

    500
  • Lead Time:

    5-7 working days according the order qua
Product Details

3 Pin Roller Hinge Lever Push Button Micro Switch



Basic Information

               P/N              DM1-02CWL-30-3
Rating 1A 125VAC
Type 3 pins bend micro switch
Operating force 80±15gf -180±15gf
Size 12.8mm*5.8mm
Life 500,000Cycles

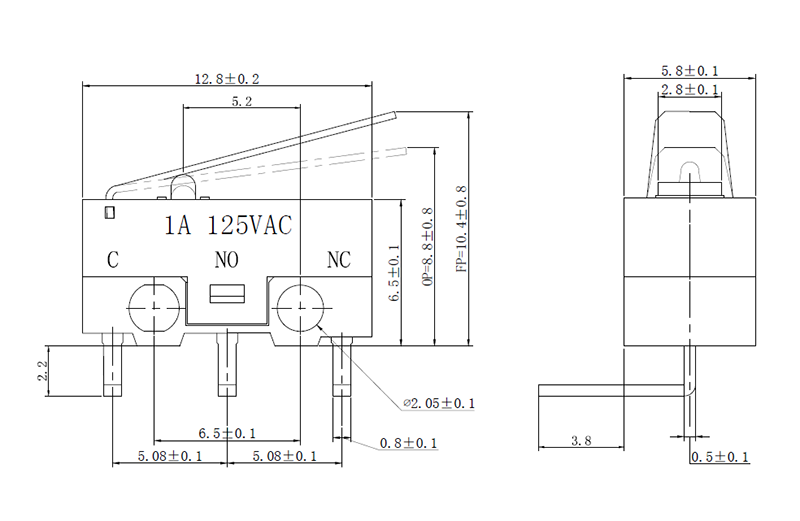

Dimension



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.




Application

Micro switch can be widely used in computer mouse, security products, doorbells, automotive electronics, communication equipment, military products, test equipment, gas water heaters, gas water heaters, gas stoves, small appliances, microwave ovens, rice cookers, float equipment , medical equipment, building automation, power tools and general electrical and radio equipment.
