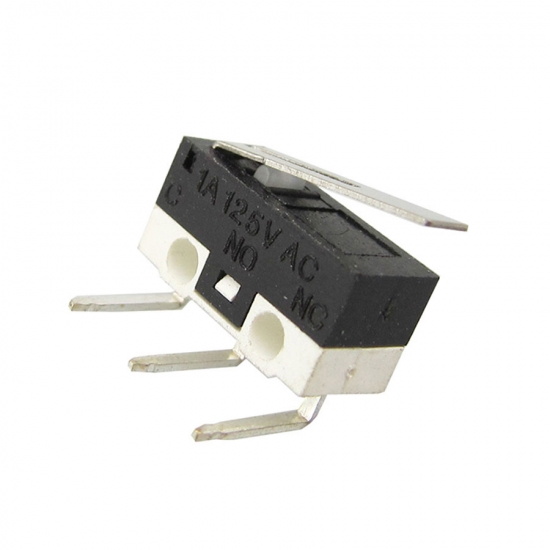

Left curving micro switch snap action

It is widely used in electronic products,instrument measuring appliance and domestic electric appliances and so on.

  • Item No.:

    KW10-3Z-02
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 working days
Product Details



Product item:Left curving micro switch

In snap action contacts, the movement of the actuator applies force to an overcenter mechanism. This mechanism creates a quick change in contact state when the trip point is reached. Reversing the motion of the actuator to a given reset point causes the contacts to snap back to their original position.

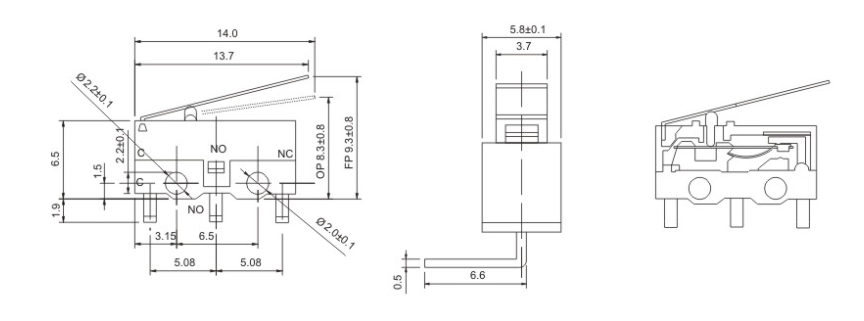

Dimension:



Advantages:

1) self-cleaning structure of contacts;

2) adaptation to low speed operation;

3) adapt to a variety of installation

4) micro gap structure and 3mm gap structure;

5) a variety of long-term use of the temperature range available
