tact switch 12V

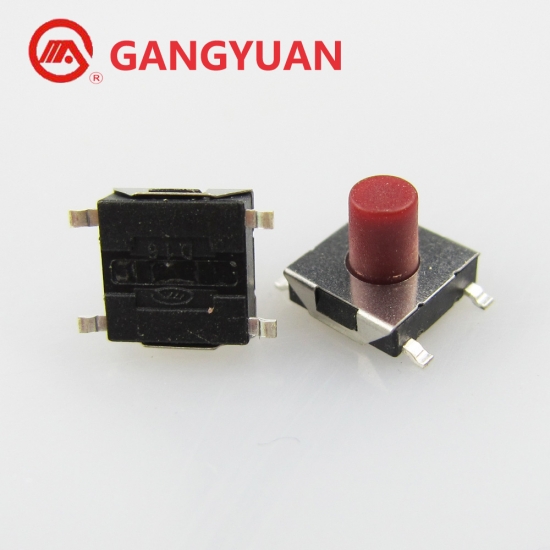

Long using life SMD smt vertical push button tact switch 12V

  • Brand:

    Gangyuan
  • Item No.:

    KAN0647
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    silver and red
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    50 pcs
  • Lead Time:

    3 Working Days after payment
Product Details

Long using life SMD smt vertical push button tact switch 12V

Basic Information

Model Name:

SMD  Rubber Tactile Switch

Model No.:

KAN0647

Dimension:

6×6×HMM

Operating force:

100gf/160gf/260gf±50gf

Life cycles:

60,000/80,000/100,000 cycles

Heat resistance: 80±2℃, 96h

Working tempreture:

 -20℃to+70℃

DC rating:

50mA.12V DC

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.25±0.1mm

Passed test:

Salt Mist/Solderability/Resistance to

low temperature/Heat resistance/Change of temperature /Moisture resistance /Sulfuration Resistance etc

 Certifications:  CE,ROHS, REACH, ENEC,
 Features:

High quality, durable using life


Dimension

tactile button switch.jpg

4pin smd tact switch 6x6.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
