Home Switch Micro switch G10 Series t125 5e4 efficient micro switch

t125 5e4 efficient micro switch

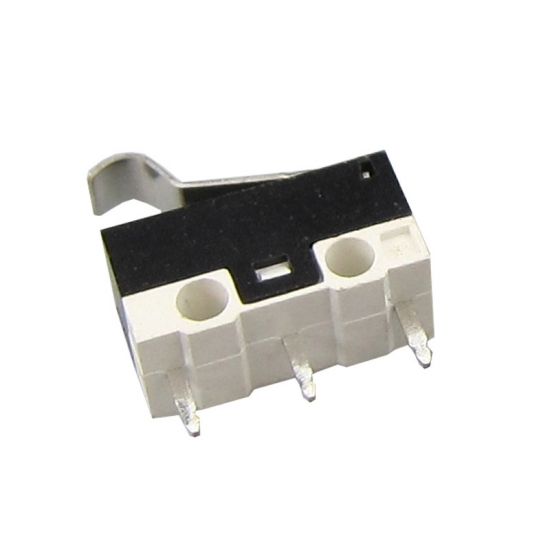

3 pin short lever micro switch t125 5e4 efficient micro switch

  • Brand:

    Gangyuan
  • Item NO.:

    DM1-05PW-30-3
  • Order(MOQ):

    100 pcs
  • Payment:

    T/T
  • Product Origin:

    zhejiang/shenzhen
  • Color:

    black and white
  • Shipping Port:

    ningbo or shenzhen
  • Lead Time:

    3 Working Days after payment
  • Product Detail

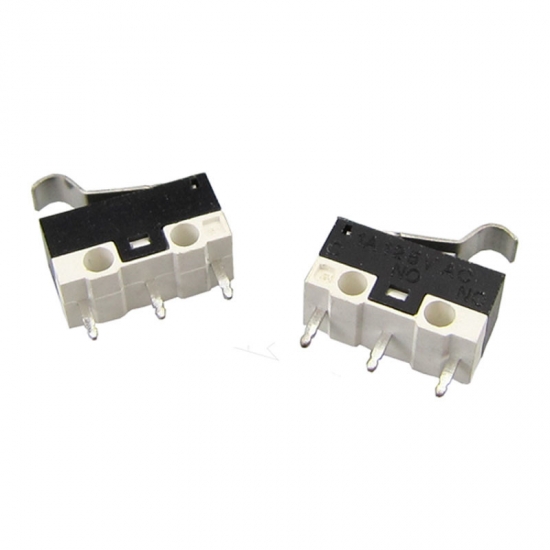

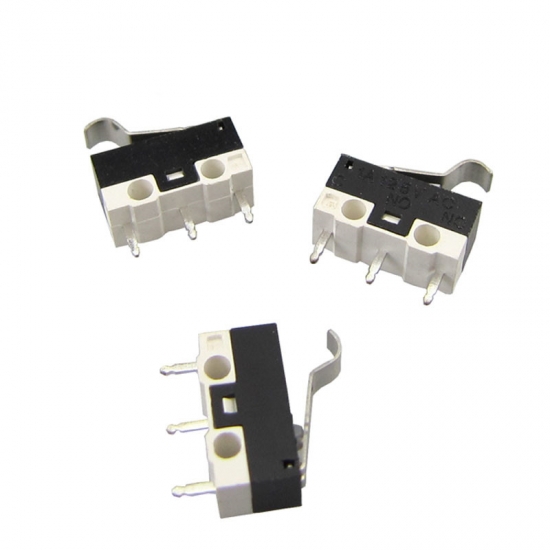

3 pin short lever micro switch  t125 5e4 efficient micro switch

 Basic Information


Product name Micro Switch
Rating AC125V 1A
Contact resistance 100mΩ
Operating force 30±15gf
Life 50000 Cycles
Operating temperature
-20°C~70°C
Lever length 0.4mm

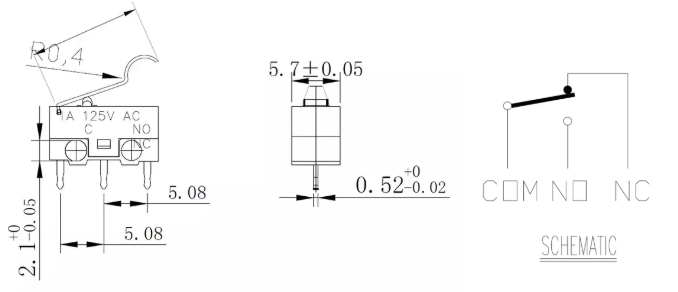

 Dimension


 Product features


1. Type: Micro switch

2. Circuit Code: SPDT

3. Lever Type: With lever, curved shape

4. Electrical Rating: AC 125V 1A


 Our advantage


1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

    More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.



 Application


Micro switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

  FAQ


1. Q: Are you manufacture/ factory? Location?

    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
