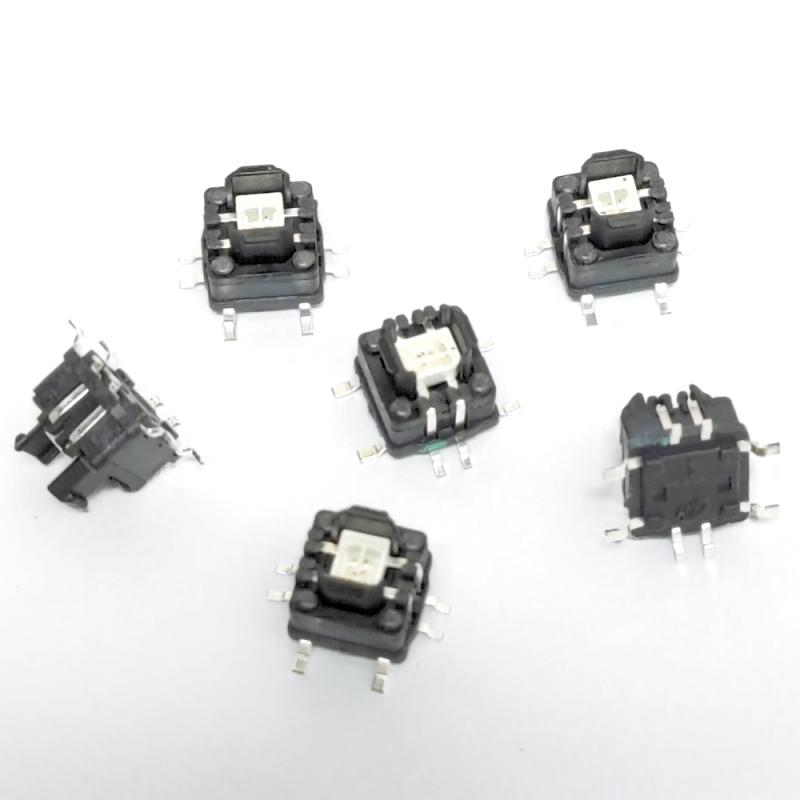

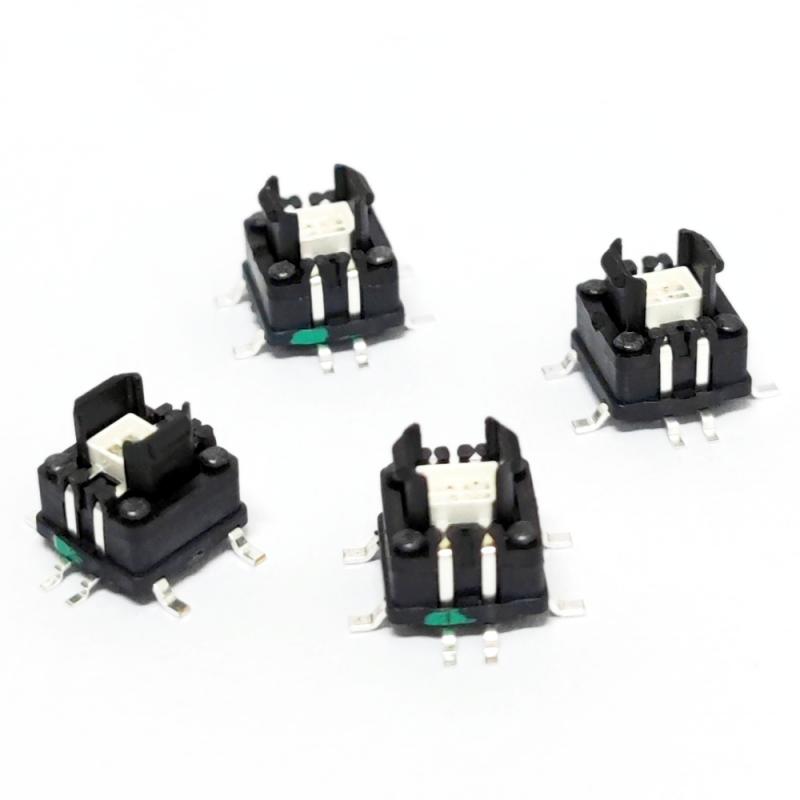

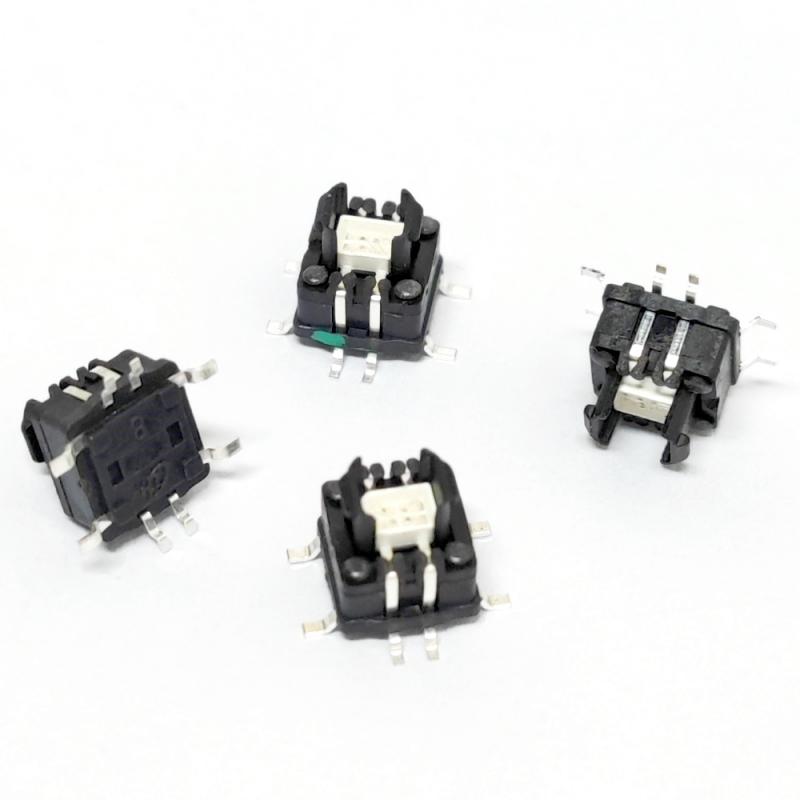

Illuminated SMD Tactile Switch – Compact LED Tact Switch for Surface Mount Assembly
Our illuminated SMD tactile switch series features a compact surface mount (SMT) design with integrated high-brightness LED illumination, available in red, green, blue, yellow, white, RGB and bi-color options.
Brand:
GangyuanItem NO.:
KAN0743-0701C1-RGBOrder(MOQ):
500Payment:
100% before productionProduct Origin:
WenzhouColor:
BlackShipping Port:
Ningbo or ShenzhenLead Time：
7-15 working daysOutline (mm)
6.80mm x 6.80mmMounting Type
Surface Mountlllumination
llluminatedIP Rating
IP4XFactory China 6.8mm Illuminated Tact Switch with RGB color LED
Typical Specifications
Operating Force: 260±50gf
Operation life: 100,000 cycles
LED color: RGB ( Red,Green,Blue )
Product height: 7±0.2mm
Salt mist.Test: 12±1 hours

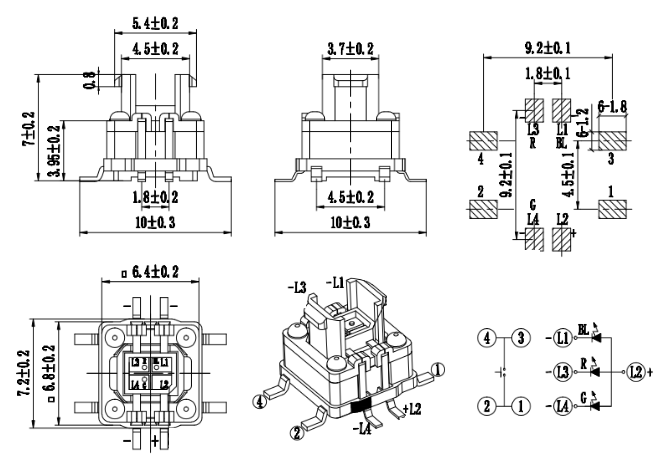

Tact switch schematic
Low Profile Illuminated Tactile Switch – Surface Mount Gull-Wing
Application
Network & Telecom: Routers, switches, base stations, data center servers
Medical: Patient monitors, diagnostic equipment, portable medical devices
Automotive: Dashboard controls, infotainment systems, navigation panels
Consumer Electronics: Smartphones, gaming controllers, remote controls, smart home devices
Pro Audio/Video: Mixing consoles, broadcast control systems, video processors
Industrial: HMI panels, control equipment, instrumentation, building automation
Other: Office equipment, embedded systems, vending machines
Key advantages of RGB lighting
This is the most significant advantage. An RGB LED allows a single switch to convey far more than just “power on/off” – it becomes a multi‑state status indicator.
Convey Rich Device Status
By displaying different colors, one switch can communicate multiple operating states. For example: Blue for standby, Green for normal operation, Yellow for warning, and Red for error. This is especially valuable in industrial controls and medical equipment, enabling operators to grasp system status at a glance.
Visualize Dynamic Conditions
Color changes (e.g., fade, breathing, blinking) can represent continuous variables – such as adjusting volume or temperature with color intensity. In consumer devices, a progressive color bar can even indicate download progress or charging levels.
Enhance Safety
In complex or high‑stress environments, clear and intuitive color coding can significantly improve operator response time and reduce errors, thereby boosting overall safety.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
