Home Switch Micro switch G10 Series Roller lever 3A micro switch

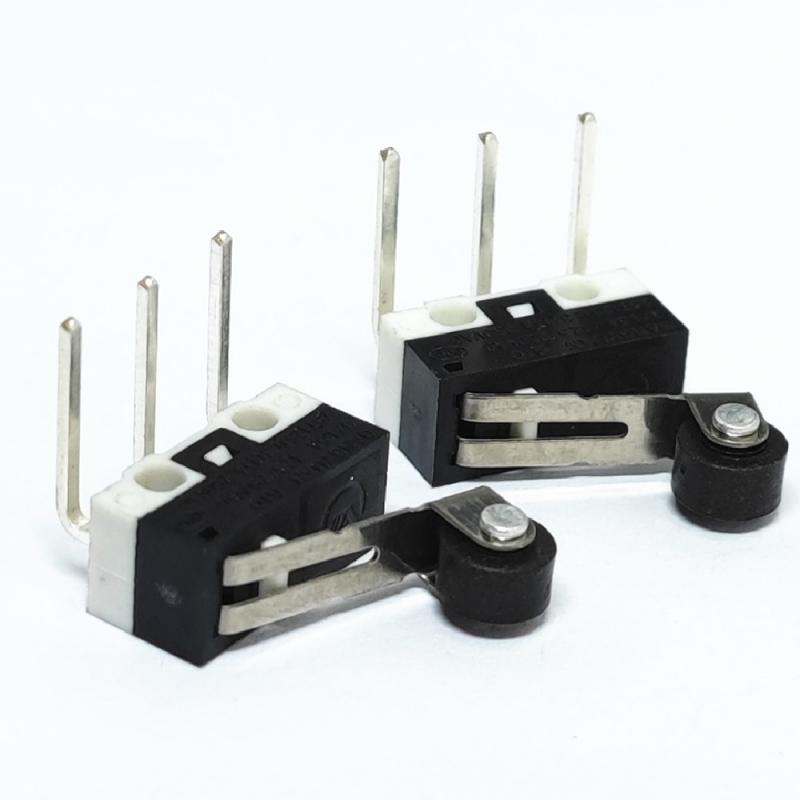

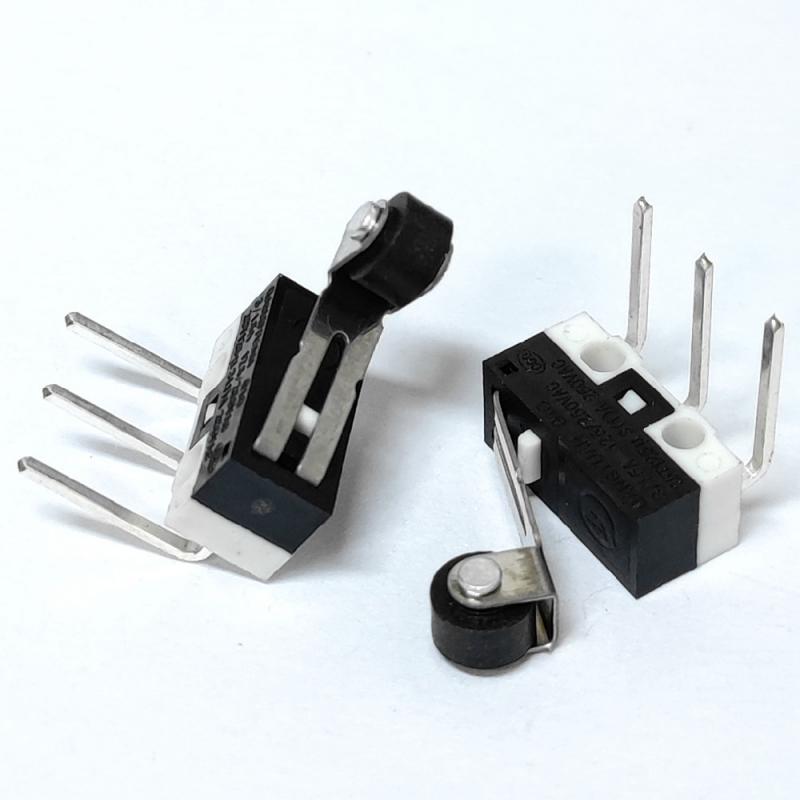

Roller lever 3A micro switch

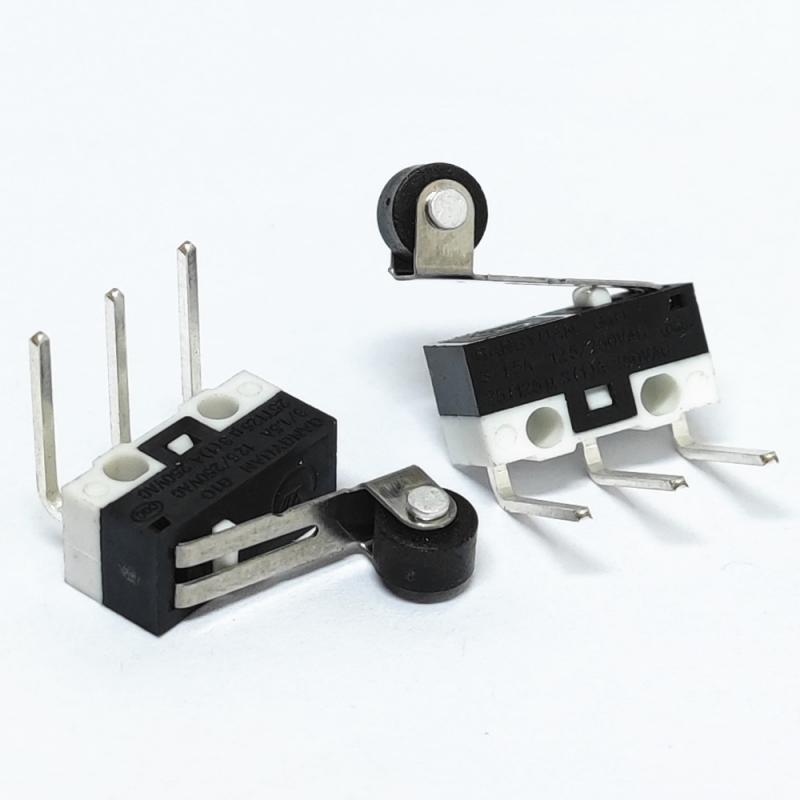

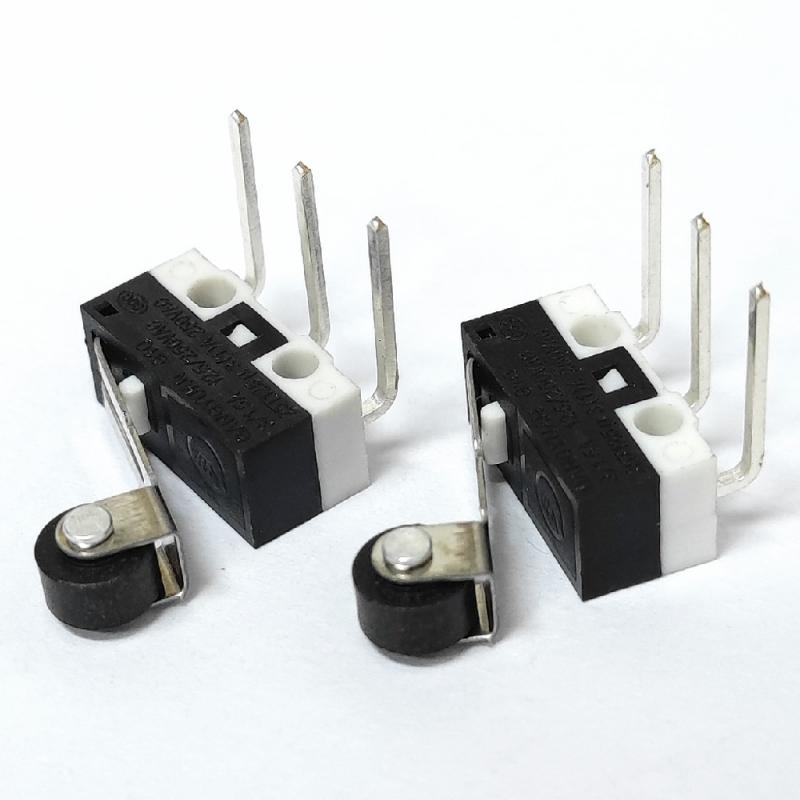

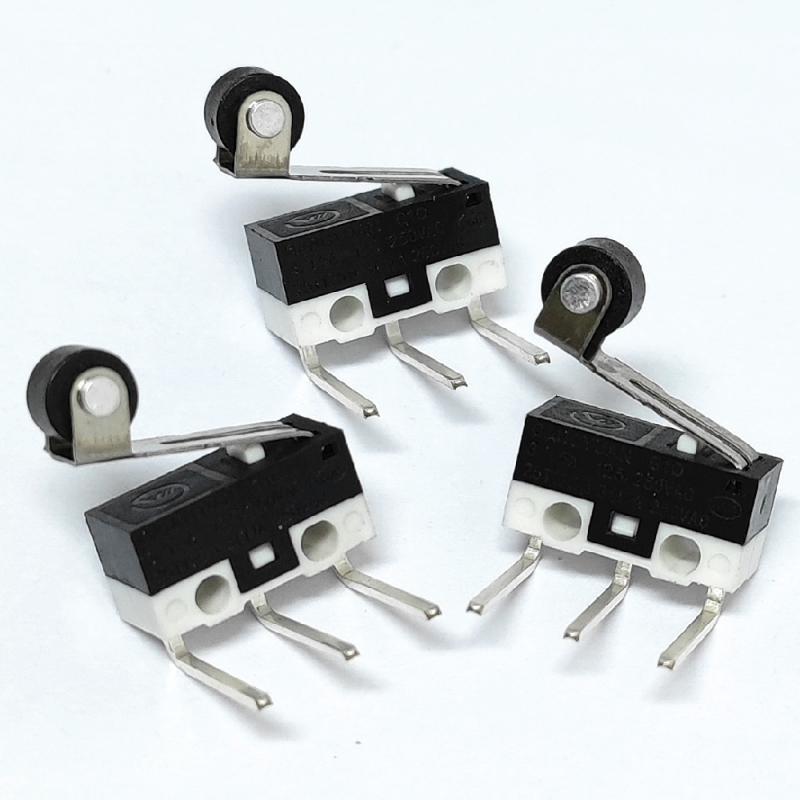

There are another left angle terminal type and long pin.

  • Brand:

    Gangyuan
  • Item NO.:

    G10-3-08R-40-1107
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black and White
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Outline (mm)

    12.80mm x 6.60mm
  • Mounting Type

    Right Angle
  • lllumination

    Non-llluminated
  • IP Rating

    IP4X
  • Product Detail

12.8*6.5*5.8mm 3 pin PCB 3A 125V/250VAC 40gf micro switch

Mini micro switch push button


Parameter


micro switch suppliers


1.Operating Temperature Range: -25℃~+85℃;
Operating Relative Humidity: ≤85%;
2.Voltage Rating: 125V/250V AC;
3.Current Rating: 3A;
4.Contact Resistance: ≤100mΩ;
5.Insulation Resistance: ≥100MΩ;
6.Dielectric Withstanding Voltage: 500V AC 1Min;
7.Soldering Temperature: 260±5℃ 5s;
8.Operating Force: 40±20gf;

9.Life Time(mating cycles): 10000 Cycles.


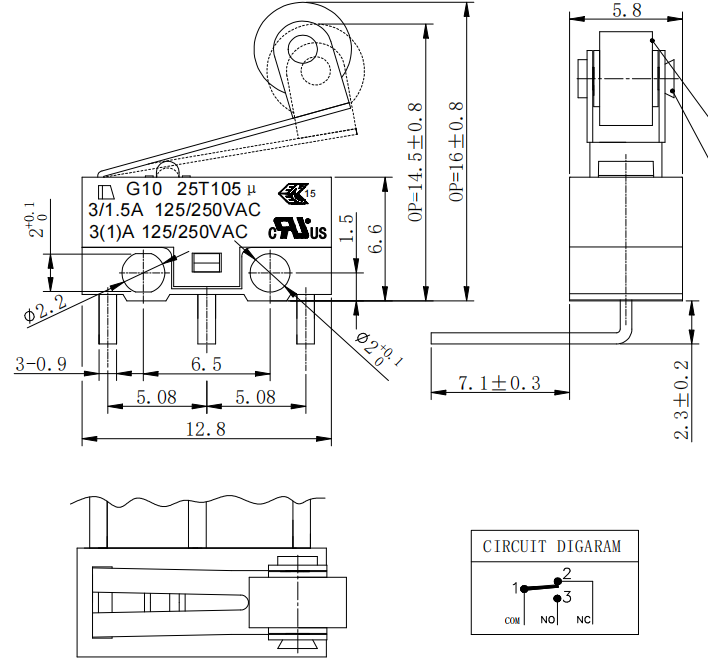

Drawing



What is micro switch?


A micro switch, also known as miniature snap action switch, is a type of momentary contact switch used widely in automotive, industrial and medical instruments as sensor.


How do 3 way switches work?


Pin 1 is the common terminal, pin 2 is the normally closed contact, and pin 3 is the normally open contact. When the switch is not being activated, pins 1 and 2 are connected together. When the switch is being activated, pins 1 and 3 are connected together.

"3-way" is the electrician's designation for a single pole double throw (SPDT) switch. The switches must create a complete circuit for current to flow and the bulb to light. When both switches are up, the circuit is complete (top right). When both switches are down, the circuit is complete (bottom right).

Tutorial: 3-Way Switches and 4-Way Switches

Leave A Message

If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.

  • #
  • #
  • #
  • #
  • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Related Products
Limit Micro Switch
Left curving micro switch snap action

It is widely used in electronic products,instrument measuring appliance and domestic electric appliances and so on.

Micro switch
12.8mm*5.8mm left and right terminal connect Micro switch micro tactile switch

12.8mm*5.8mm left and right terminal connect Micro switch.

Micro switch
12.8mm*5.8mm long terminal connect UL Micro switch keyboard tactile switch

12.8mm*5.8mm long terminal connect Micro switch micro switch.

DM1-02CWL-30-3
Hot-Selling Gangyuan Manufacture DM1-02CWL-30-3 Micro Switch SPST

Product model: DMI-02CWL-30-3 Specification: 12.8mm*5.8mm Operating force: 80±15gf -180±15gf Features: left and right feet MOQ: 1000

DMI-02PWL8.5--3
Manufacture 3 Pin 1A 125V t85 Micro Switch

DMI-02PWL8.5--3: 1A 125VAC, 80±150gf, 5e4 mini micro switch.

Mini micro switch
Right Angle Dip Mini Micro Switch

G10-3-01S: 125/250V AC 4A, 200±15gf, 50,000cycles mini micro switch.

Push Button Micro Switch
3 Pin Roller Hinge Lever Push Button Micro Switch

DM1-02CWL-30-3: 3 Pin Long Roller Action Micro Switch.

Keyboard Tactile Switch
Long Terminal Connect Micro Switch

12.8mm*5.8mm Long Terminal Connect 3 pin Micro Switch
