Mouse Micro Switch 3a 125 250vac

Our high-quality micro switch is a compact, reliable, and responsive switching solution, specially designed for mouse button applications such as left/right click buttons.

Brand:
Gangyuan
Item NO.:
G10-3-04R-30-1110
Order(MOQ):
500
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black and White
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 Working Days

Outline (mm)
12.80mm x 6.60mm
Mounting Type
Right Angle
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

Angel Type Ultra Miniature Micro Switch with Sraight Lever

Parameter

Type: Right Angle Microswitches

Operating Temperature Range: -25℃～+85℃

Operating Relative Humidity: ≤85%

Voltage Rating: 125V/250V AC

Current Rating: 3A

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Dielectric Withstanding Voltage: 500V AC 1Min

Soldering Temperature: 260±5℃ 5s

Operating Force: 30±15gf

Life Time(mating cycles): 10000 Cycles

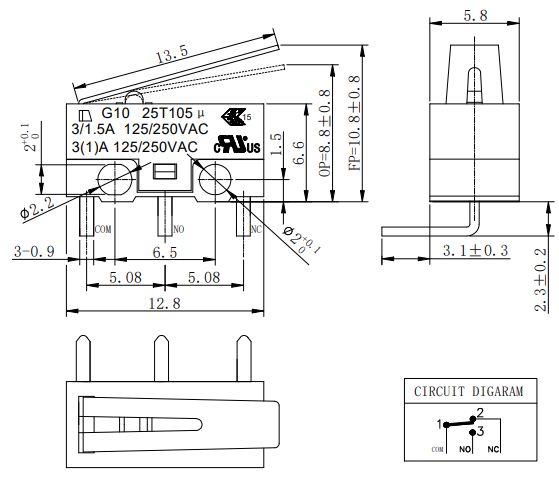

Drawing

Feature

The 12.8×5.8mm microswitch is a cost-effective medium-compact option. Its core advantages include: a size that

fits on the circuit boards of most small and medium-sized devices; balanced electrical and mechanical performance

(long life, fast response, and high stability); meeting the high-frequency operation requirements of consumer electronics

and the reliable control demands of industrial applications. For mice, home appliances, or instrumentation, this size is often

the preferred option for balancing space and functionality.
