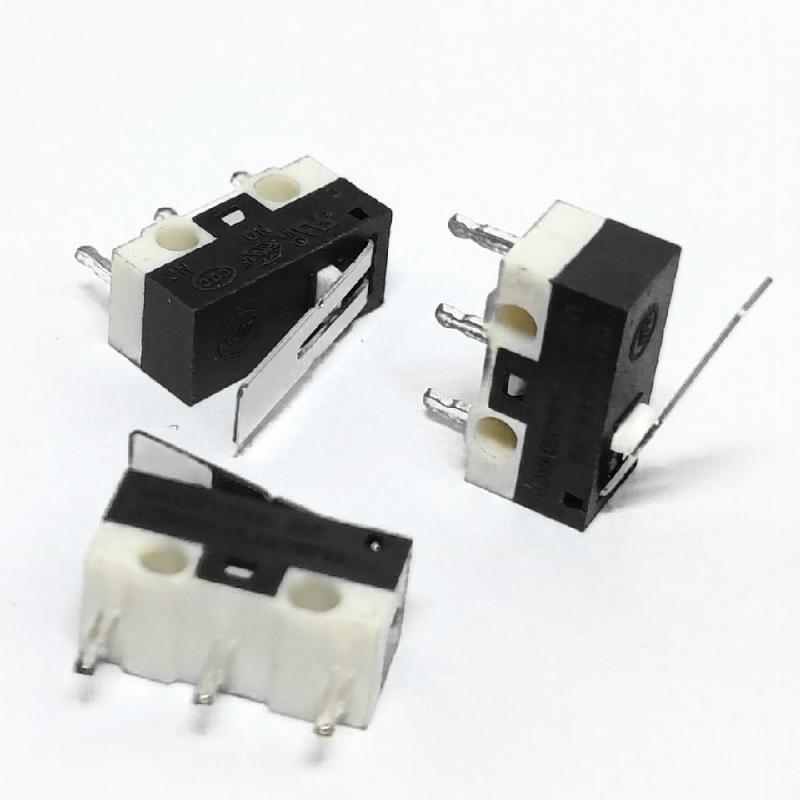

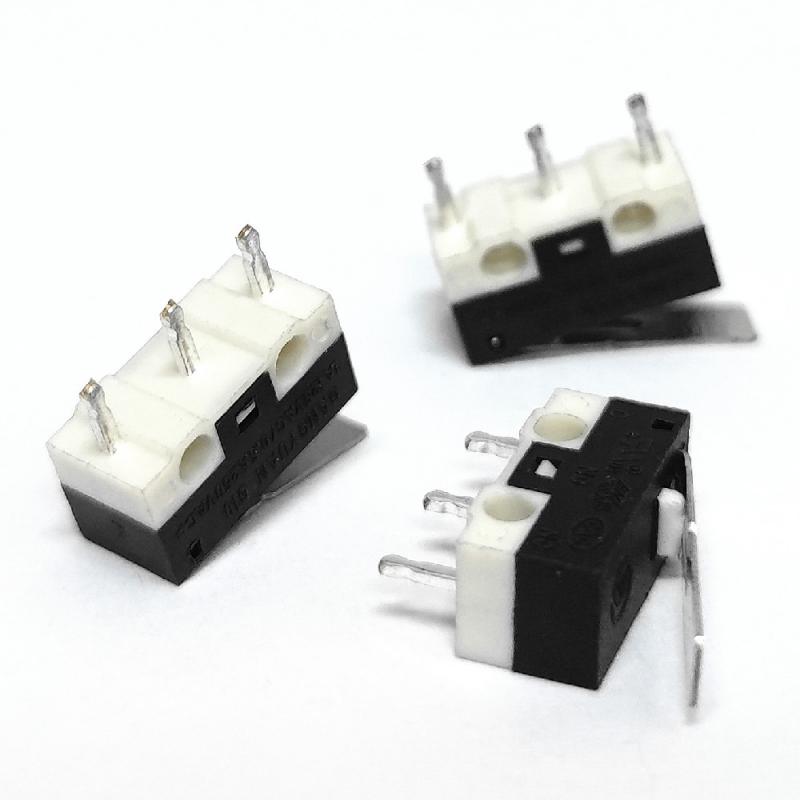

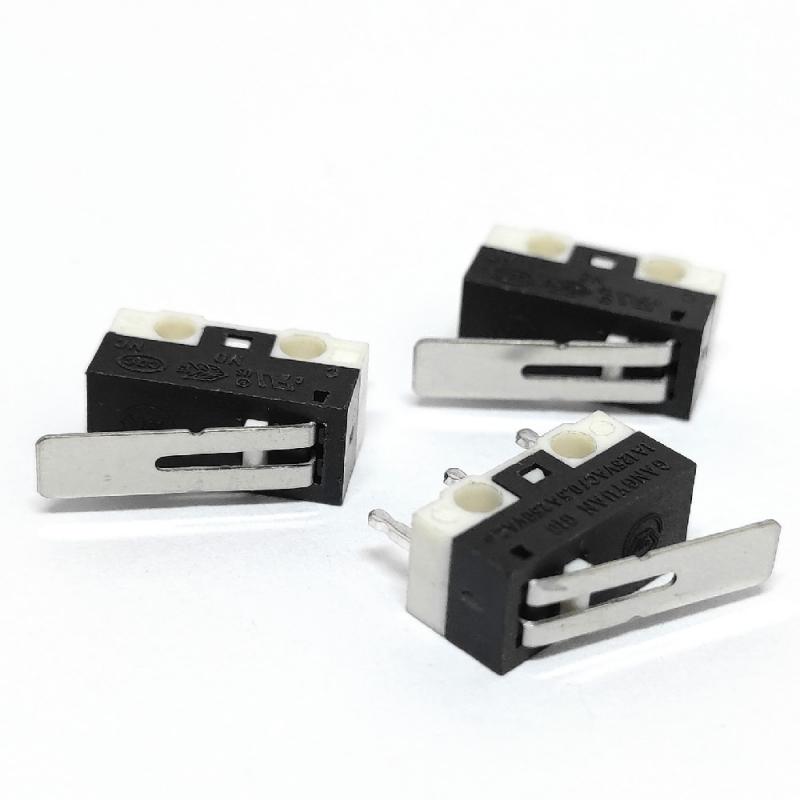

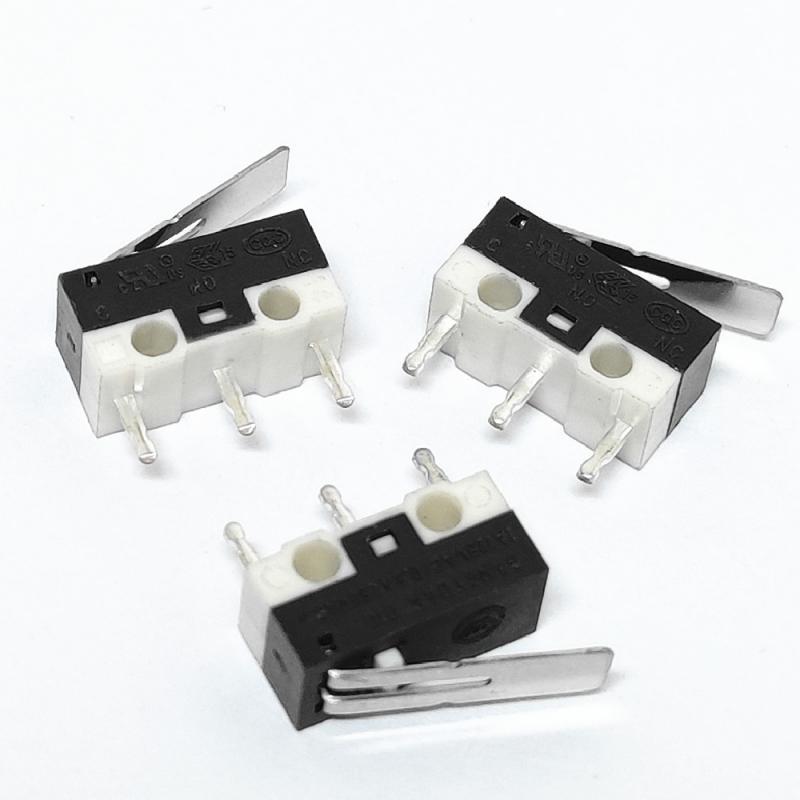

Home Switch Micro switch G10 Series 1a 125vac micro switch

1a 125vac micro switch

Electric Sensitive Mouse Micro switch With Long Arm

  • Brand:

    Gangyuan
  • Item NO.:

    G10-1-04P-30-1086
  • Order(MOQ):

    500
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

mouse micro switch types 12.8*5.8mm Micro Button Switches

PCB terminals type


 Product Description

Type: mini micro switch with 1NO1NC mouse 3 pin

Operating Temperature Range: -25℃~+70℃
Operating Relative Humidity: ≤85%
Voltage Rating: 125 V AC
Current Rating: 1A
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Dielectric Withstanding Voltage: 500V AC 1Min
Soldering Temperature: 260±5℃ 5s
Operating Force:30±15gf
Life Time(mating cycles): 10000 Cycles

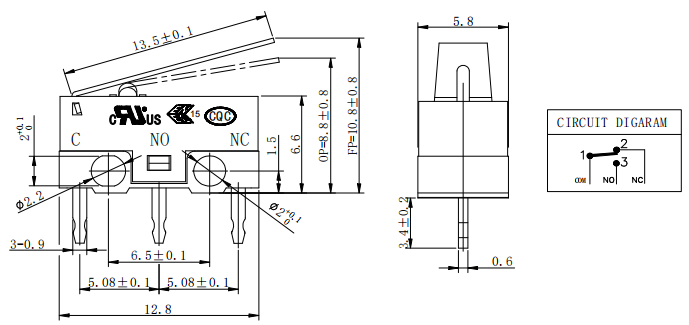

 Drawing

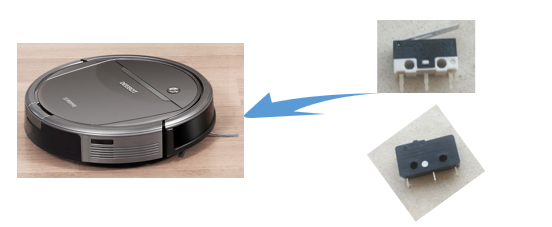

 What is a micro switch used for ?


They're used in doors to sense an 'open' or 'closed' state, in vending machines to detect the dropping of coins,

in printers and photocopiers, franking machines, and pressure switches for process applications.


 Advantage

1. Ultra-small, high current. It has the characteristics of small contact gap, fast action, high sensitivity and small action stroke;

2. Long life;
3, A variety of terminals;
4. Various types of pressing handles;
5. Applicable to various household appliances, audio and video equipment, computers, office automation equipment and communication equipment;
