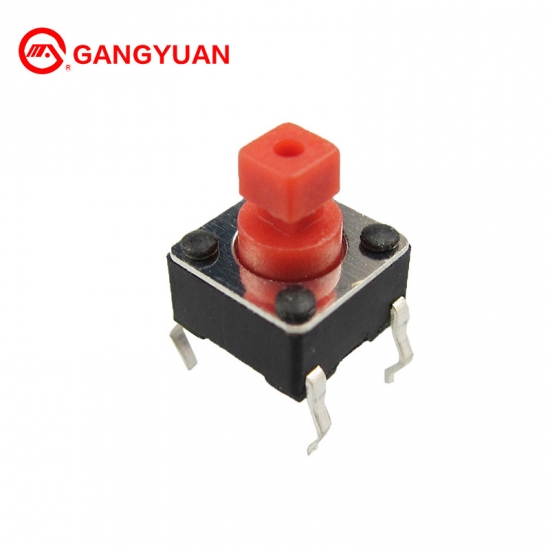

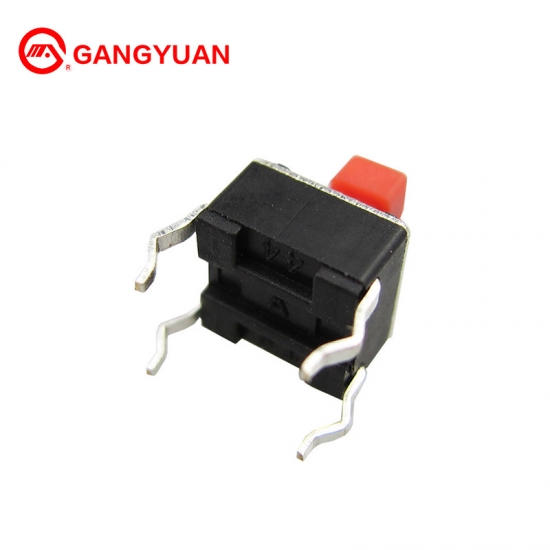

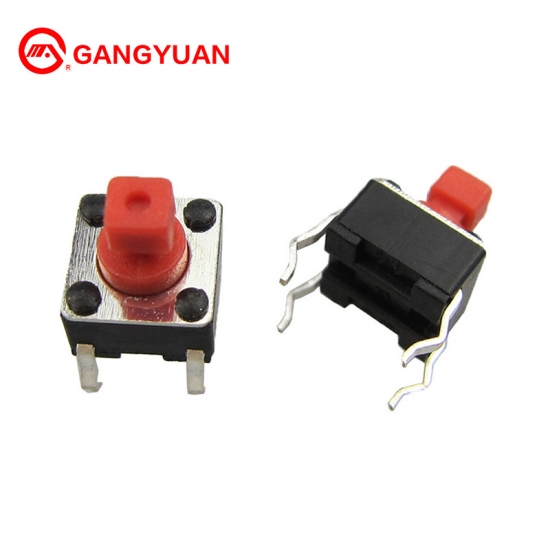

push button 6x6 tactile switch smd

Customized Red Square push button 6x6 tactile switch smd tact switch

  • Brand:

    Gangyuan
  • Item No.:

    KAN0611-0502B-22
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black and red
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

push button 6x6 tactile switch smd

Product Description:

Model Name:

push button tactile switches 6x6 tactile switch tact switch

Model No.:

KAN0611-0502B-22

Dimension:

6X6X50mm (6×6×H/H=4.3mm-21mm)

Operating force:

160gf

Life cycles:

100,000 Cycles

Working tempreture:

 -20℃to+70℃

DC rating:

50mA.12V DC

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.25±0.1mm

Features:

Waterproof: IP65 grade,red push button

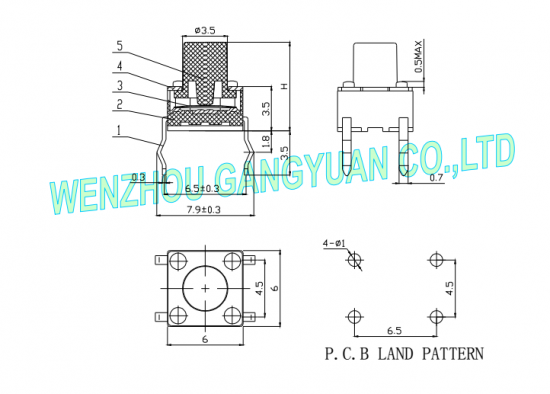

Dimension:




A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
