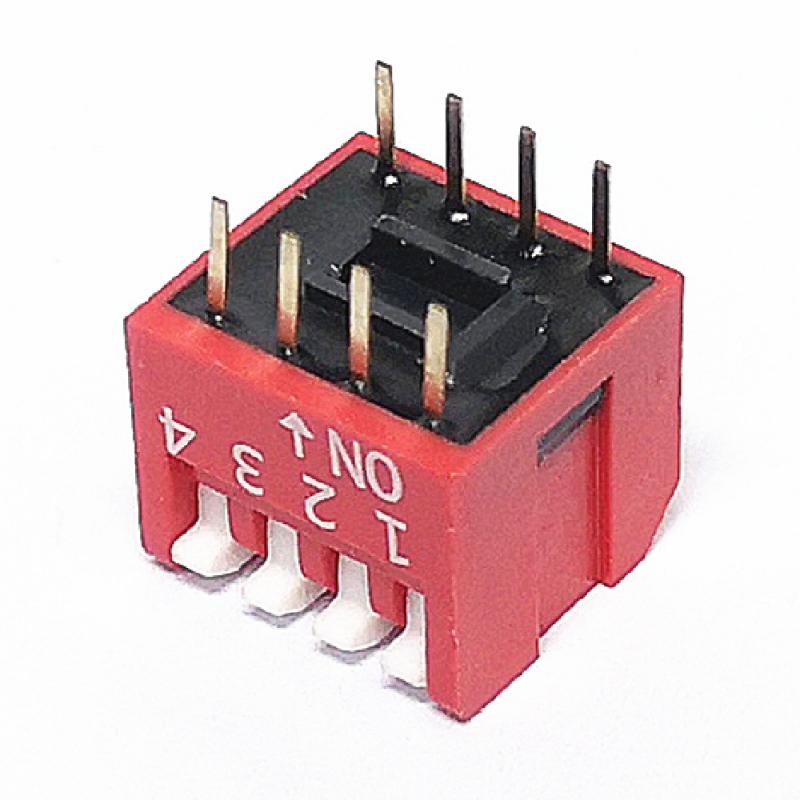

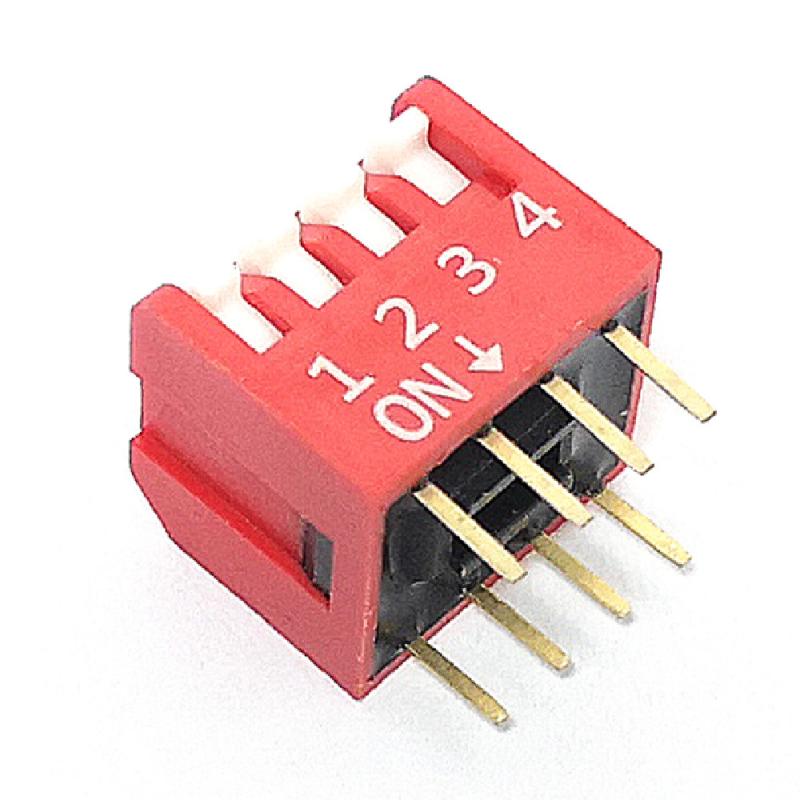

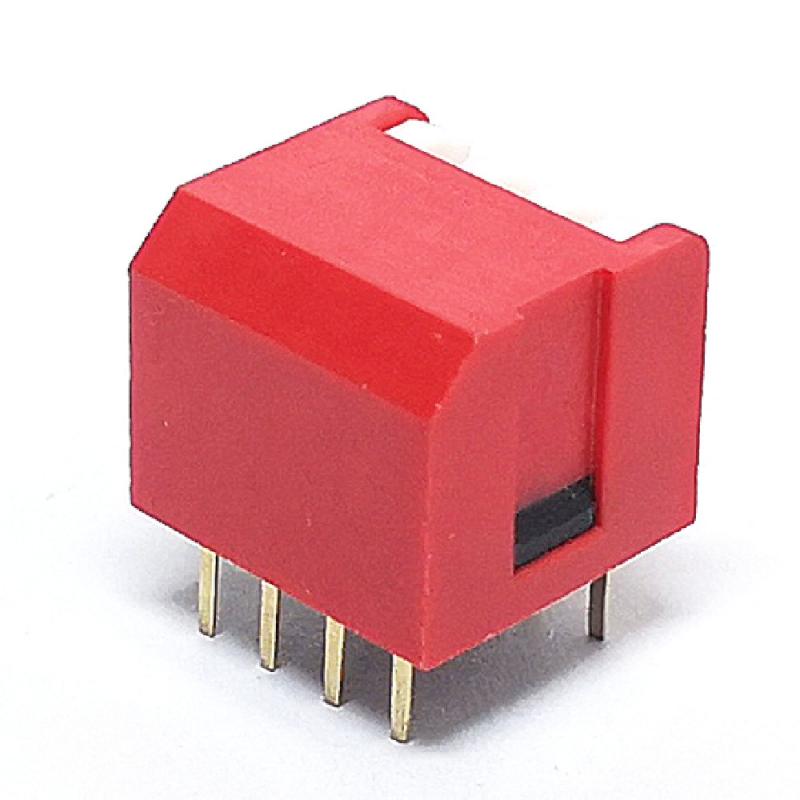

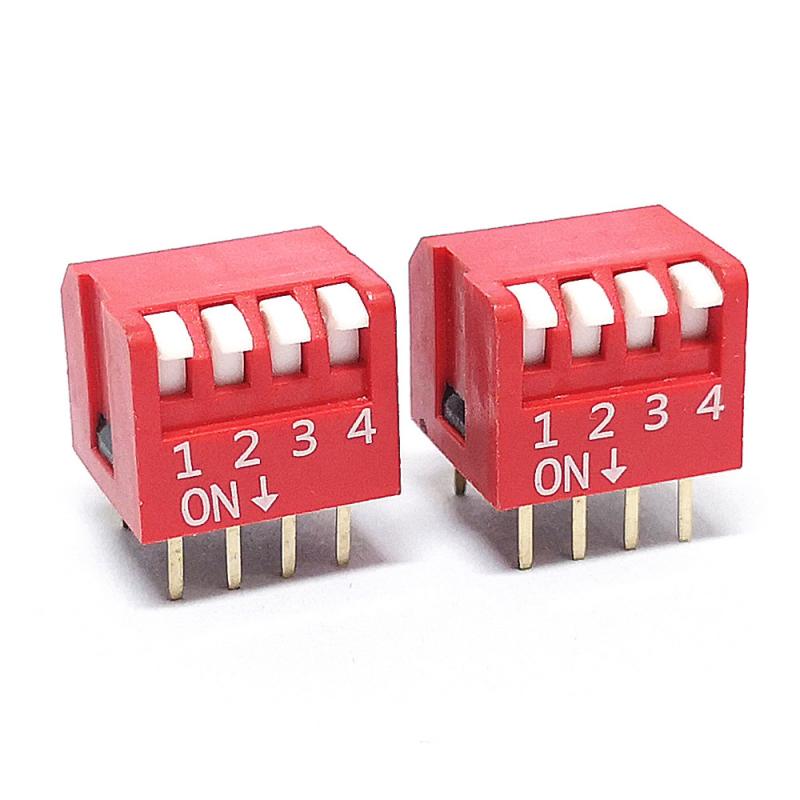

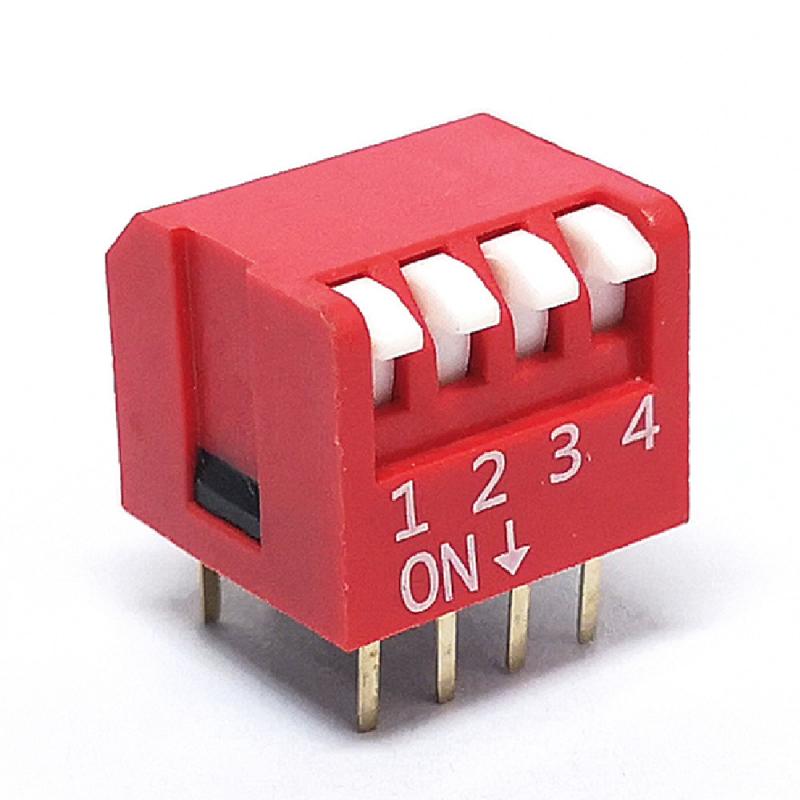

Piano actuator PCB dip switch

Application: Solar photovoltaic system, Smart meter, Building automation and security and Household appliances.

Brand:
Gangyuan
Item NO.:
GYDPA-04
Order(MOQ):
1344
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
White and Red
Shipping Port:
WenZhou/Shenzhen
Lead Time：
7-14 Working Days For Payment

Product Detail

25mA 24VDC ON-OFF SPST dip switch

4 position micro dip switch supplier

Parametar

Operation Force: 0.2kgf max.

Stroke: 2.0mm

Operation Temp: -20℃ to 70℃

Storage temp: -40℃ to 85℃

Electrical Life: 3000 operations per switch 24VDC,25mA.

Non-Switching Rating: 25mA, 24VDC.

Contact Resistance: 50m max.at initial.

Insulation Resistance: (at 500VDC) 100m min.

Dielectric Strength: 500VAC/1 minute.

Capacitance: 5PF max.

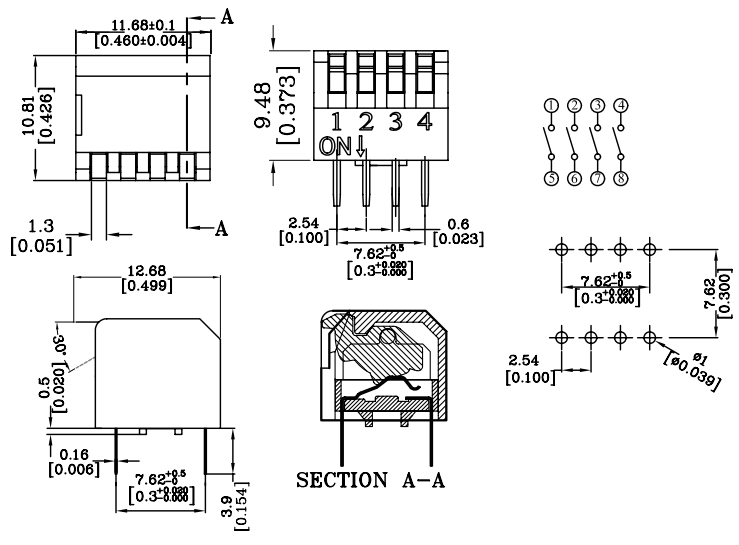

Drawing

Characteristic

Sliding double contact mechanism ensures high reliability
Provides ON and OFF Settings for welding
Short and long actuators are available

Packaging

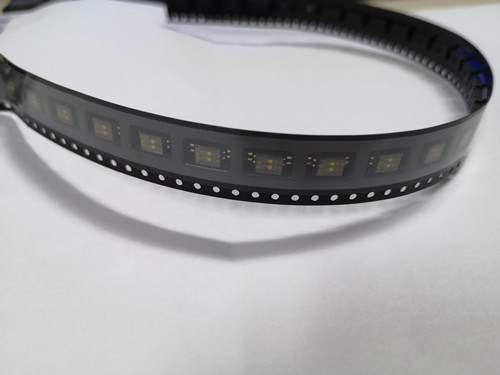

Reel packing

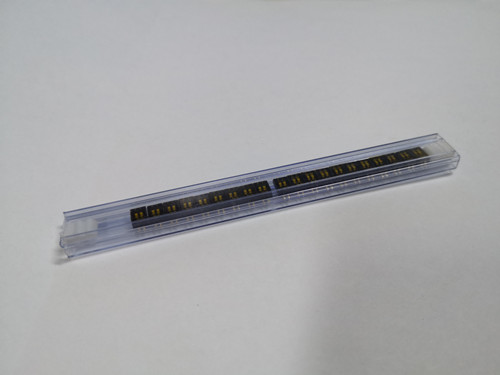

Tube packing
