Home Switch Tactile switch 06 Series tact switch Normally Closed SMD Tact switch

Normally Closed SMD Tact switch

Wholesale Normally Closed 6x6x5 Reel packing  SMD Tact switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0649
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    BLACK
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

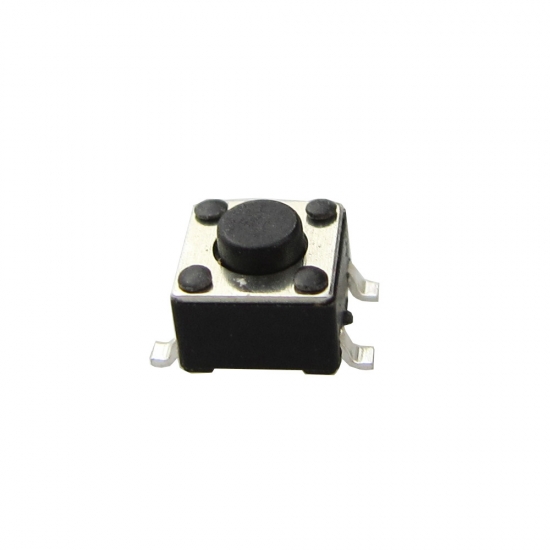

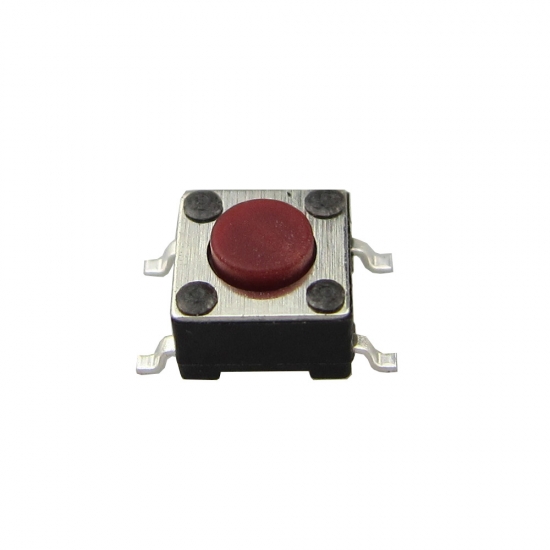

Wholesale Normally Closed 6x6x5 Reel packing  SMD Tact switch


Tact Switch Features:

  • Gangyuan
  • SMD Tact switch
  • Dimension:6x6mm



Tact Switch Specification:

Contact Rating

  Ratings: DC 12V  50mA(Max)    DC 1V  10μA (Min)

Contact Resistance

≤100mΩ

Insulation Resistance

≥100MΩ

Operating Force

100gf/160gf/260gf±50gf

Operation life

100,000  cycles

1,000,000cycles

Heat resistance



80±2℃, 96h

Sulfuration resistance

40±2℃, 72h

Free samples range

30~50pcs




OUTLINE, WIRING DIAGRAM, MOUNTING HOLE LAYOUT (UNIT: mm)
