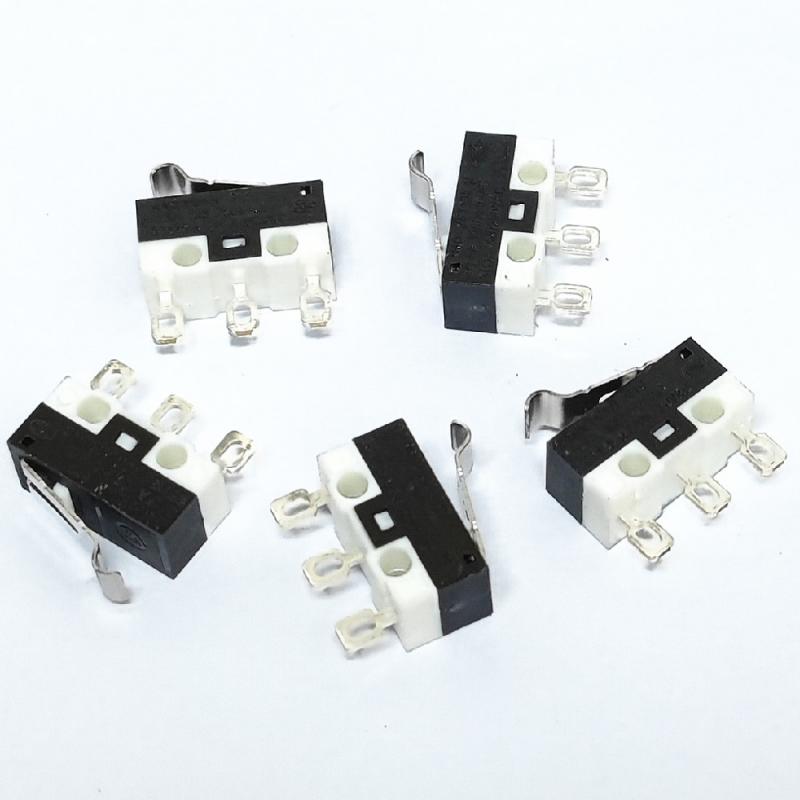

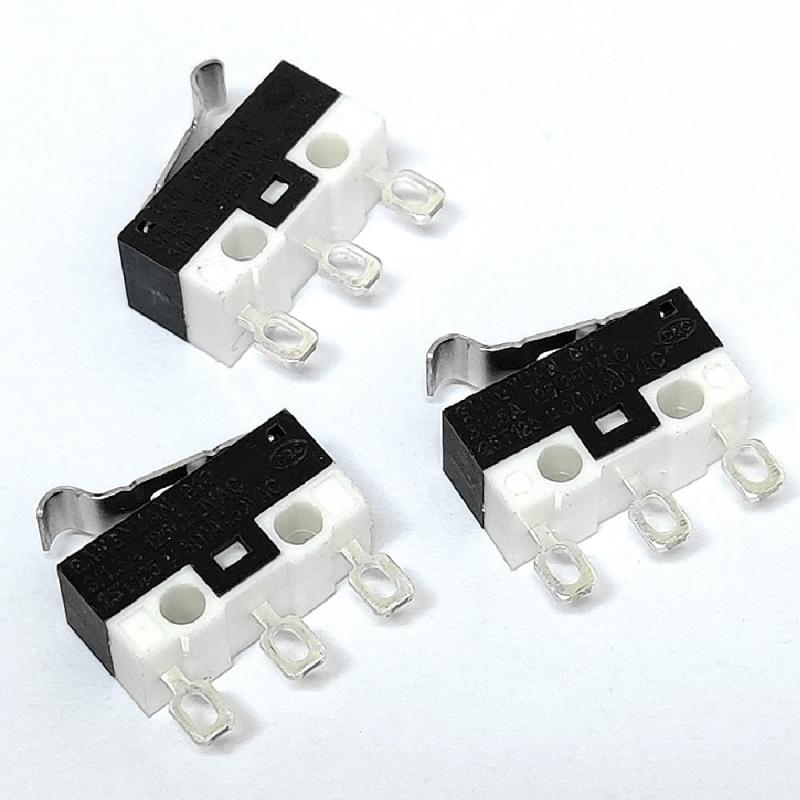

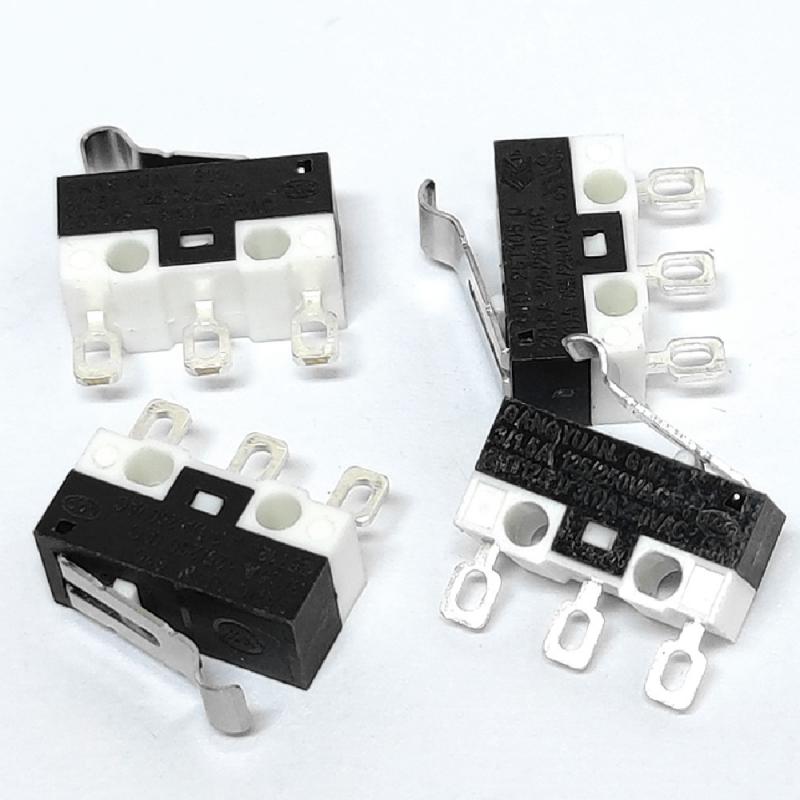

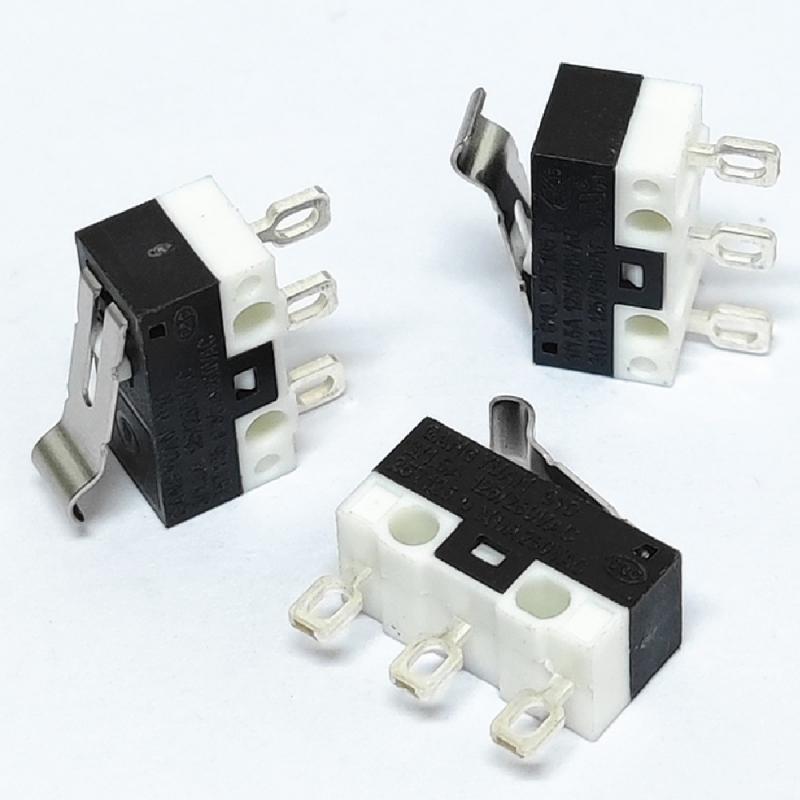

3 Pin Solder Terminal Micro Switch for Mouse

This mouse micro switch is a precision electronic switch designed for high-frequency clicking. It features a 3A current carrying capacity, soldered pins, and a classic curved handle. It's widely used in computer mice (especially mechanical/esports mice), small appliance control panels, industrial buttons, and more.

Brand:
Gangyuan
Item NO.:
G10-3-17N-40-1122
Order(MOQ):
500
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black and White
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 Working Days

Outline (mm)
12.80mm x 5.80mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

SPDT Through Hole Simulated roller lever Ultra Subminiature Micro Switch

Parameter

Type: D2F Micro Switches

Operating Temperature Range: -45℃～+85℃

Operating Relative Humidity: ≤85%

Voltage Rating: 125V AC

Current Rating: 3A

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Dielectric Withstanding Voltage: 500V AC 1Min

Soldering Temperature: 260±5℃ 5s

Operating Force: 40±20gf

Life Time(mating cycles): 10000 Cycles

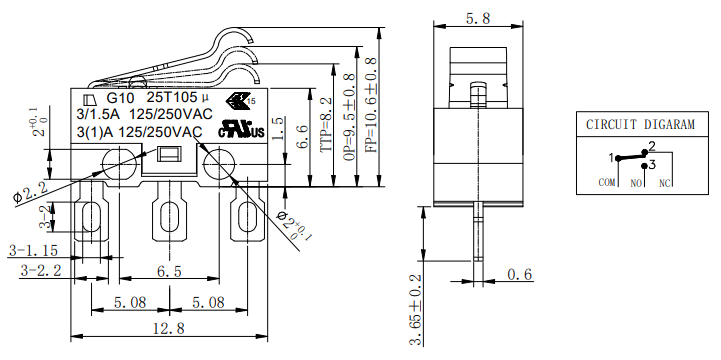

Drawing

Key Feature

3A High Load Capacity: Stably handles 3A current, suitable for mouse signal triggering and certain low-power control scenarios.

Solder Terminal Design: Utilizes standard in-line pins, compatible with PCB soldering and suitable for mass SMT or DIP assembly,

facilitating automated production and repair and replacement.

Bent Lever Arm: The unique curved trigger arm structure adapts to mouse buttons or other devices requiring a lever trigger,

improving operational feel and trigger consistency.

High Durability: Selected high-quality contact materials (such as Beryllium bronze) ensure low contact resistance, oxidation resistance,

and durability, making it suitable for high-frequency use scenarios (such as gaming mice and industrial buttons).

Versatile Application: Suitable not only for mouse buttons (left/right/side buttons), but also for small appliance control panels,

electronic toys, industrial instruments, DIY electronics projects, and more.
