Wenzhou Gangyuan Electronics Co.,Ltd.
Constructed with gold-plated contacts and high-temperature resistant housings, our SMD DIP switches offer stable electrical performance, low contact resistance, and a long operational life. They are compatible with automated pick-and-place equipment, supporting efficient assembly and reducing production costs for OEM/ODM projects.
Brand:
GangyuanItem NO.:
BMIC01S-CG-4FR-M-NKOrder(MOQ):
500Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
Black and yellowShipping Port:
WenZhou/ShenzhenLead Time：
14 Working Days For PaymentOutline (mm)
6.00mm x 2.54mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating

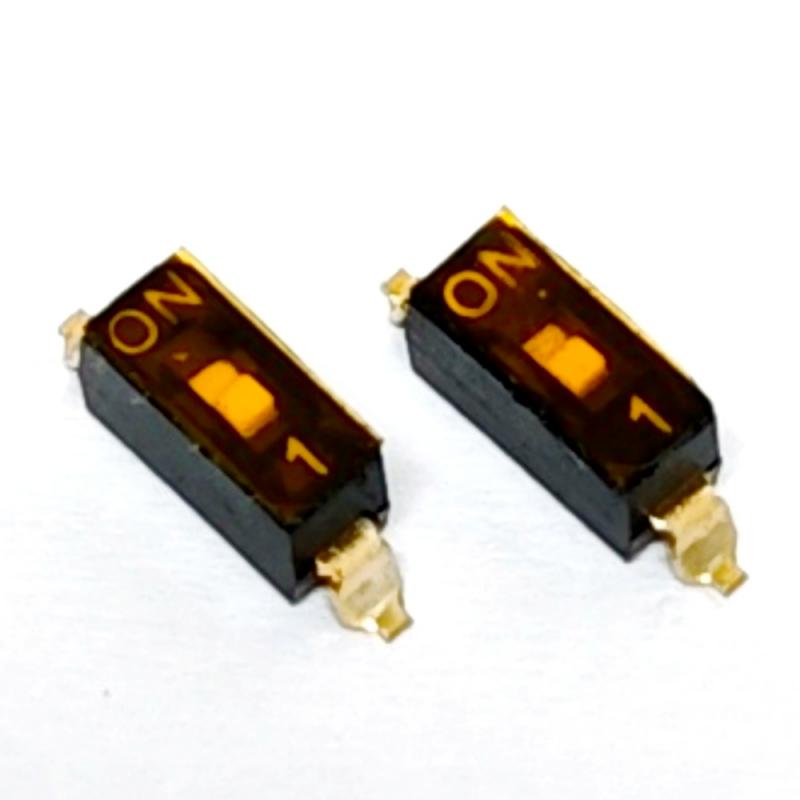

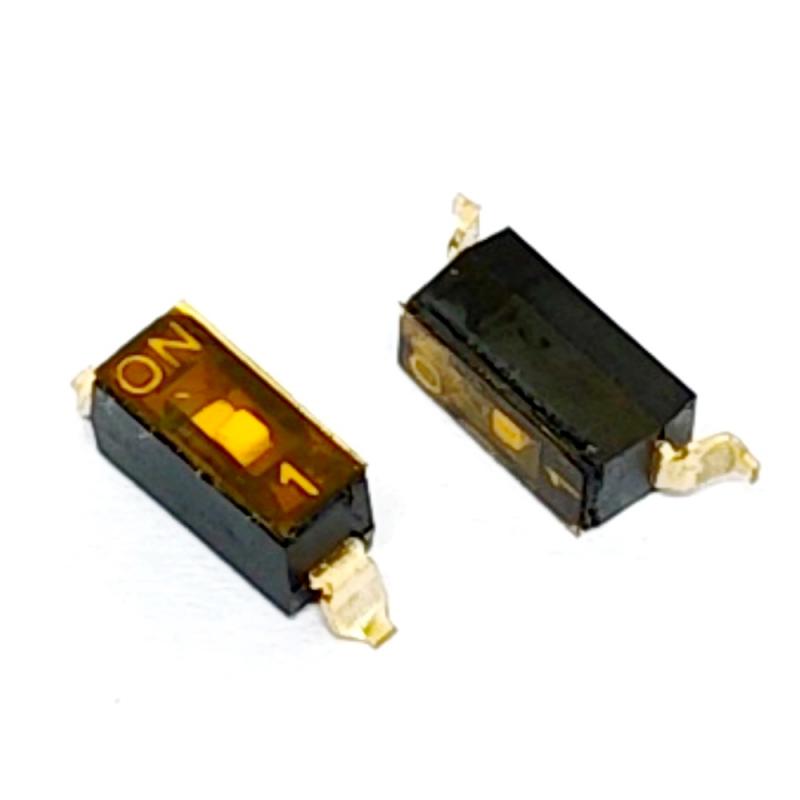

No IP Rating1 Position 2.54mm Pitch SMD DIP Switch with Tape Seal for PCB Assembly
Parameter
Type: Ultra-miniature 1, 2, 4, 6 ,8 ,10 positions SPST SMD Dip Switch
Contact rating: switching-25mA, 24VDC; non-switching-100mA

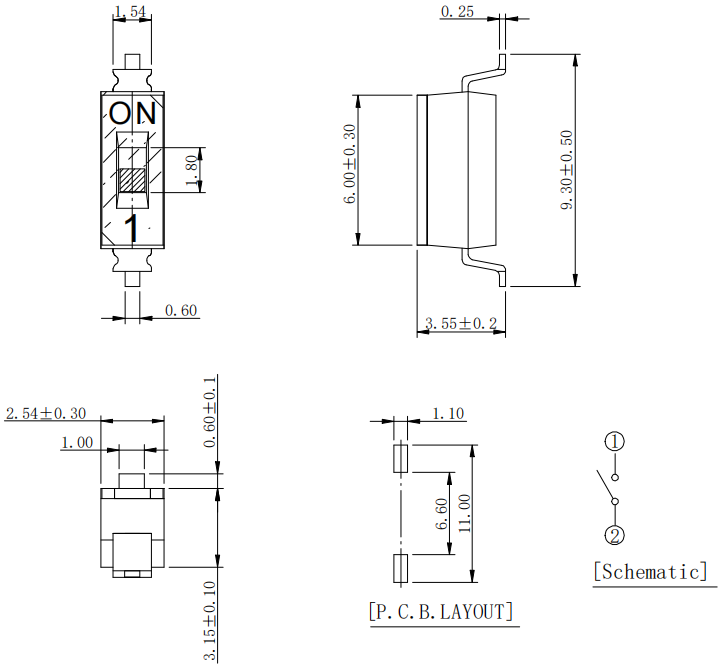

Drawing
Typical Applications
Our tape-sealed SMD DIP switches are widely used in applications requiring PCB washing and reliable configuration:
Industrial Control Boards & PLC Modules
Automotive Electronics & ECUs (AEC-Q200 compliant options available)
IoT Devices & Smart Home Appliances
Consumer Electronics & Communication Equipment
Medical Devices & Test Instruments
High-Density PCB Designs (half-pitch options)
Why Choose Our SMD DIP Switches ?
As a professionalswitch manufacturer with in-house factory, we control every step from R&D to production:
ISO 9001:2015 certified production facility
Strict incoming material inspection + 100% functional testing
RoHS/REACH compliant materials, with full documentation available
Fast lead times for standard and custom orders
OEM/ODM support: custom marking, pitch, position counts, and electrical specs
Direct factory pricing, no middleman markup
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
